BL Galaxy Electrical Production specification
Surface mount switching diode MMBD7000
FEATURES
z For high-speed switching appilication.
z Connected in series.
APPLICATIONS
z High speed switching application.
SOT-23
ORDERING INFORMATION
Type No. Marking Package Code
MMBD7000 M5C SOT-23
Pb
Lead-free
MAXIMUM RATING @ Ta=25℃ unless otherwise specified
Characteristic Symbol Limits Unit
Non-Repetitive Peak Reverse Voltage
DC Reverse Voltage
Forward Current
Suge forward Current, t=1μs
Power Dissipation
Operating Junction Temperature Range
Storage Temperature Range
V
RM
V
100 V
R
I
F
I
FS
P
d
T
j
T
STG
100 V
200 mA
4.5 A
330 mW
150 ℃
-65 to +150 ℃
ELECTRICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified
Characteristic Symbol Min MAX UNIT Test Condition
Reverse Breakdown Voltage V
Forward Voltage V
Reverse Leakage Current I
Diode Capacitance C
Reverse Recovery Time t
(BR)R
F
R
D
rr
100 V IR= 100μA
0.55
0.67
0.75
0.7
0.82
1.1
300
500
V
nA
IF=1mA
I
=10mA
F
I
=100mA
F
V
=50V
R
V
=100V
R
2 pF VR=0V,f=1MHz
I
=10mA
15 ns
F=IR
R
=100Ω
L
Document number: BL/SSSDC069 www.galaxycn.com
Rev.A 1
BL Galaxy Electrical Production specification
Surface mount switching diode MMBD7000

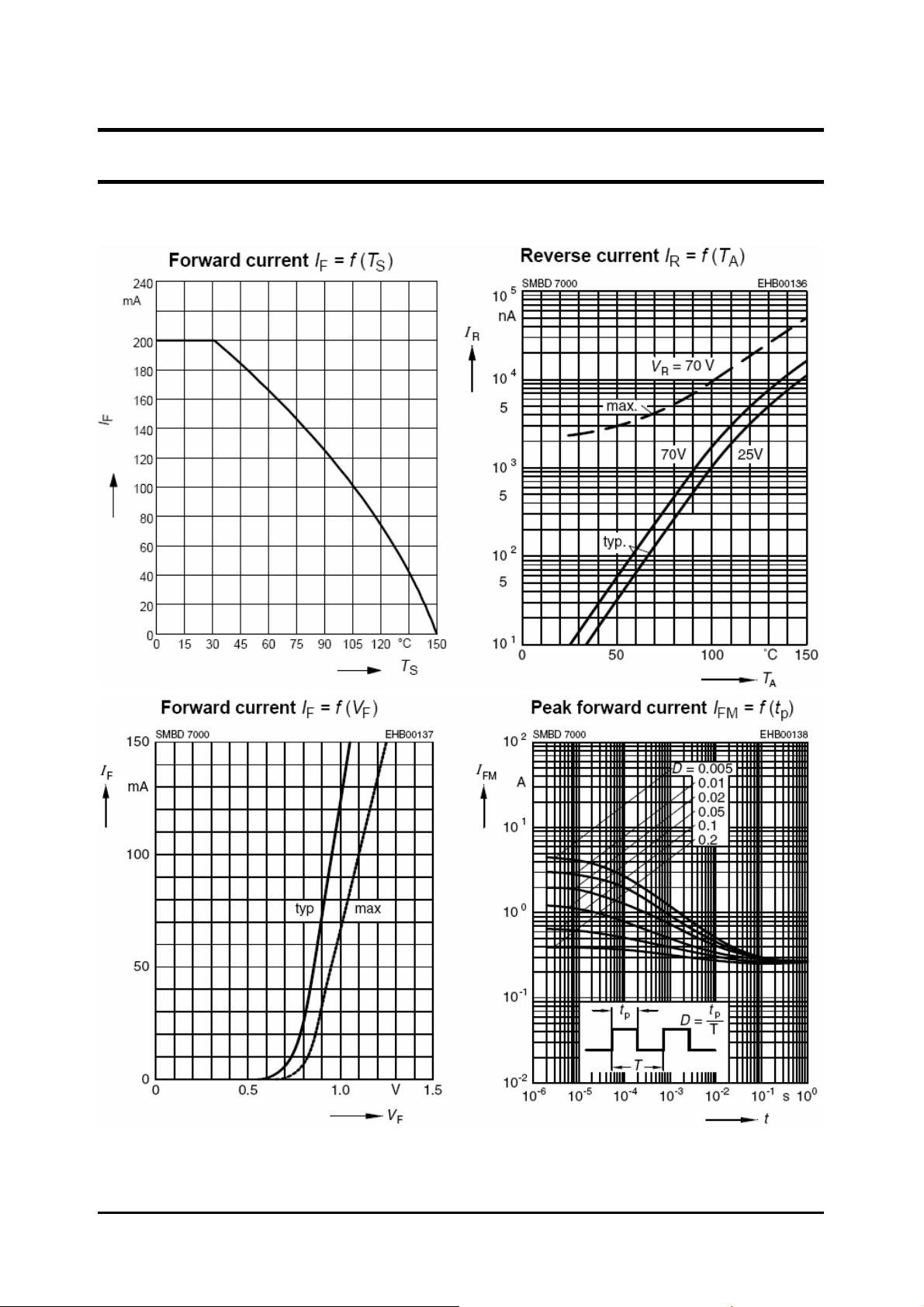

TYPICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified
Document number: BL/SSSDC069 www.galaxycn.com
Rev.A 2
