BL Galaxy Electrical Production specification
Surface Mount Fast Switching Diode DAN222
FEATURES
z Ultra-Small surface mount package.
z Fast switching speed.
z For general purpose switching
applications.
z Low conductance.
APPLICATIONS
z General purpose switching application. SOT-523
ORDERING INFORMATION
Type No. Marking Package Code
DAN222 N SOT-523
Pb
Lead-free
MAXIMUM RATING @ Ta=25℃ unless otherwise specified
Symbol Parameter Value Units
V
R
V
RM
I
F
I
FM
I
FSM
P
d
R
θJA
Tj,T
stg
DC reverse voltage 80 V
Peak reverse voltage 80 V
Forward continuous voltage 100 mA
Peak forward current (max.) 300 mA
Non-repetitive peak forward surge current
@t=1.0μs 2.0
Power dissipation 150 mW
Thermal resistance junction to ambient 833
Junction and Storage Temperature -55~150
A
℃/W
℃
ELECTRICAL CHARACTERISTICS
Parameter Symbol Test conditions MIN MAX UNIT
Reverse breakdown voltage V
Leakage current I
Forward voltage VF I
Diode capacitance C
Reverse recovery Time t
IR=100μA 80 V
(BR)R
R
D
rr
@ Ta=25℃ unless otherwise specified
VR=70V 0.1 μA
=100mA 1.2 V
F
VR=6.0V,f=1MHz 3.5 pF
IF=IR=5.0mA,Irr=0.1*IR,RL=100Ω
V
=6.0V
R
4.0 ns
Document number: BL/SSSDH003 www.galaxycn.com2
Rev.A 1
BL Galaxy Electrical Production specification
Surface Mount Fast Switching Diode DAN222

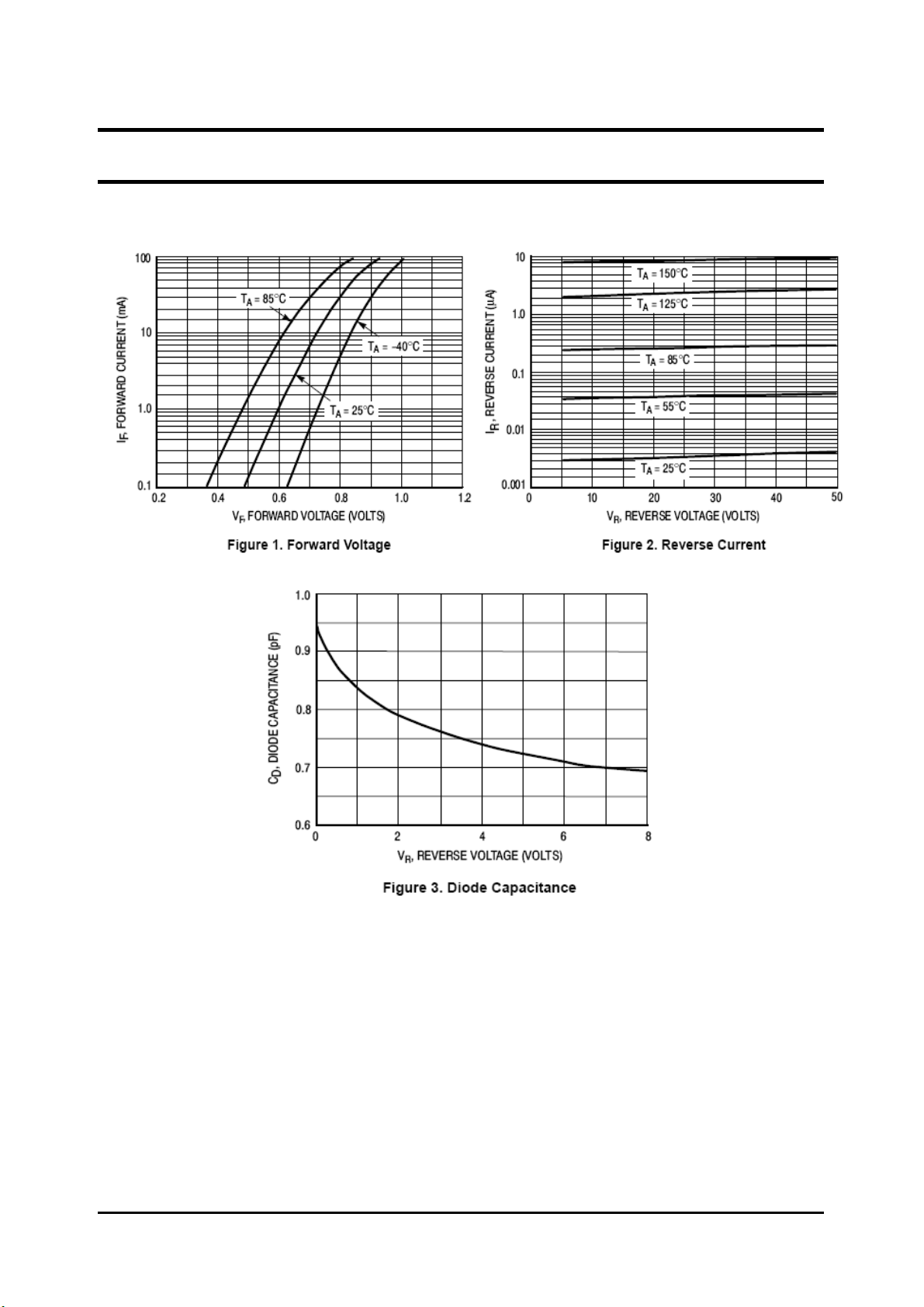

TYPICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified
Document number: BL/SSSDH003 www.galaxycn.com2
Rev.A 2
