BL Galaxy Electrical Production specification

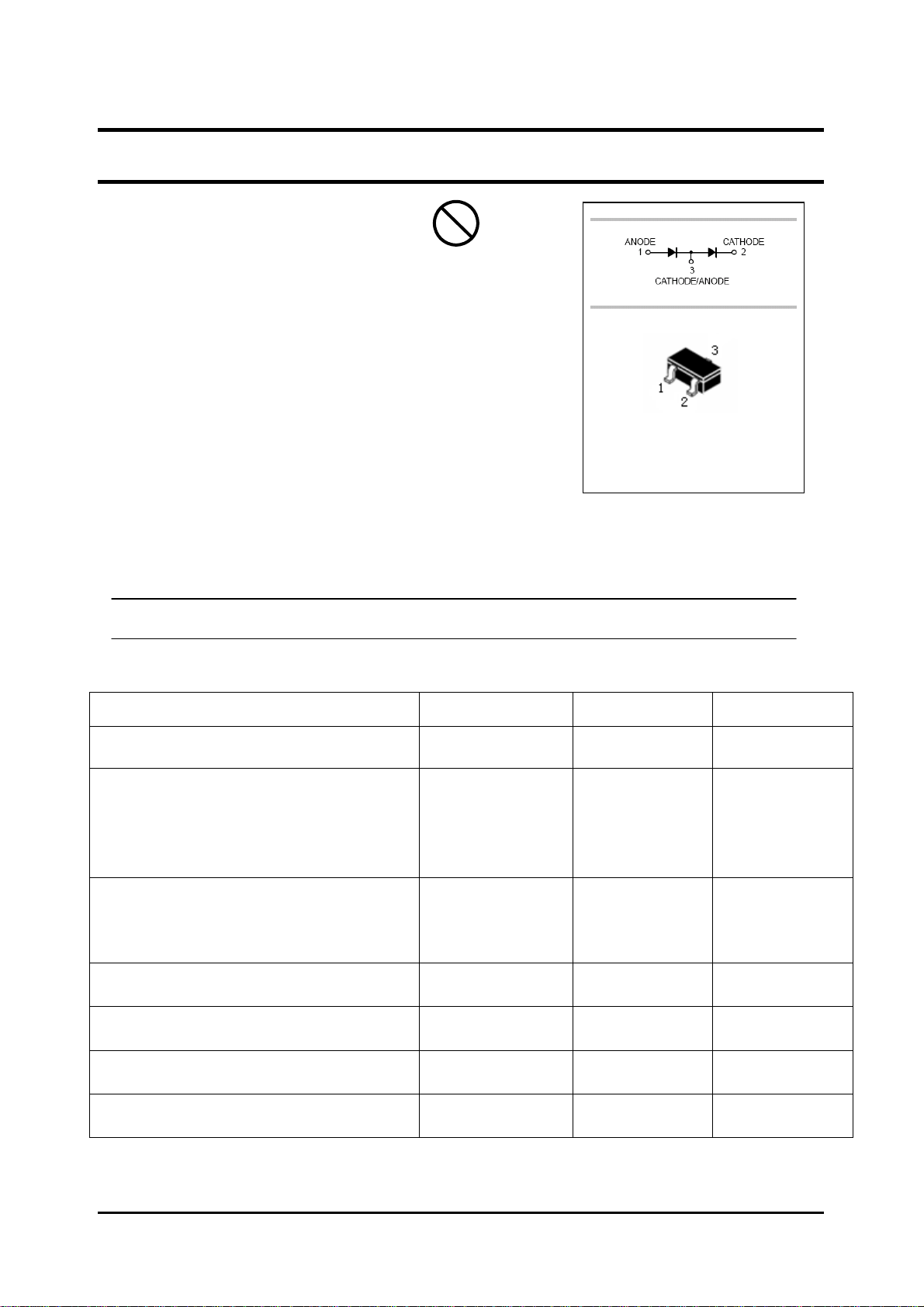

Dual series switching diode BAV99W
FEATURES
z Fast switching speed.
z High conductance
z Connected in series
z Surface mount package ideally suited
for automatic insertion
APPLICATIONS
z For general purpose switching appilication. SOT-323
ORDERING INFORMATION
Type No. Marking Package Code
BAV99W KJG SOT-323
Pb
Lead-free
MAXIMUM RATING @ Ta=25℃ unless otherwise specified
Parameter Symbol Value Unit
Non repetitive peak reverse voltage V
Repetitive peak reverse voltage
Working peak reverse voltage
DC Reverse voltage
Peak forward surge current @t=1.0s
@t=1.0μs
Forward continuous current
Average rectified output current
Power dissipation
V
V
V
I
FSM
I
FM
I
O
P
RM
RRM
RWM
R
d
100 V
75 V
1.0
A
2.0
300 mA
150 mA
200 mW
Operating and storage temperature range
Document number: BL/SSSDF007 www.galaxycn.com
Rev.A 1
T
j,TSTG
-65-150 ℃
BL Galaxy Electrical Production specification
Dual series switching diode BAV99W
ELECTRICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified
Parameter
Reverse voltage leakage current IR
Forward voltage VF
Junction capacitance Cj VR=0V f=1MHz 2.0 pF
Reverse recovery time t
Symbol
rr
Test conditions MIN MAX UNIT
V
=75V
R
V
=20V
R
I
=1mA
F
=10mA
I
F
=50mA
I
F
=150mA
I
F
IF=IR=10mA
=5V
V
R
=100Ω
R
C
4 nS
2.5
25
715
855
1000
1250

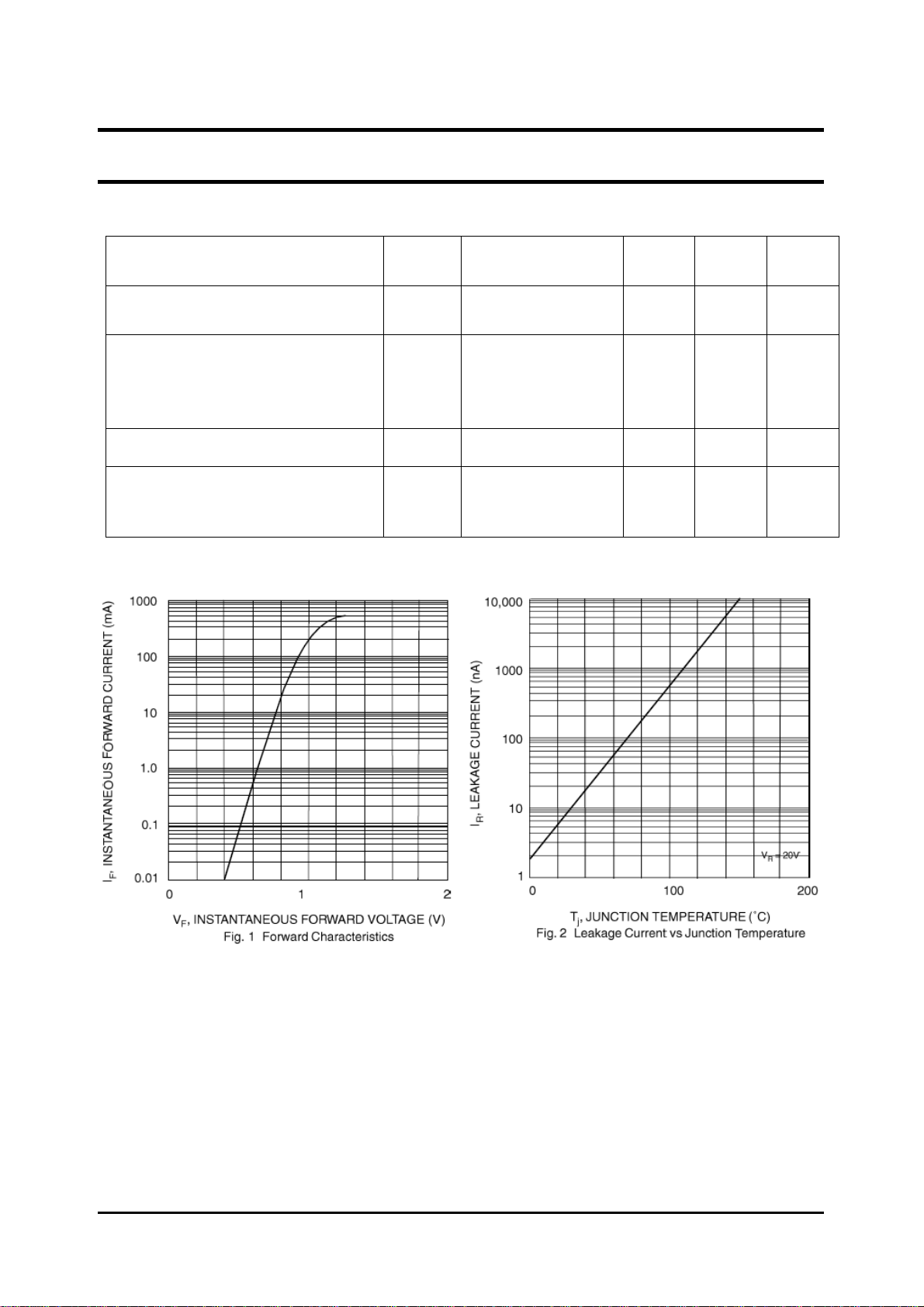

TYPICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified
A
nA
mV
Document number: BL/SSSDF007 www.galaxycn.com
Rev.A 2
