Surface Mount Fast Switching Diodes BAV199DW
FEATURES
z Fast switching speed.
z For general purpose switching application.
z Ultra-small surface mount package.
Pb
Lead-free
APPLICATIONS
z For general purpose switching application. SOT-363
ORDERING INFORMATION
Type No. Marking Package Code
BAV199DW K52 SOT-363
MAXIMUM RATING @ Ta=25℃ unless otherwise specified
Symbol Characteristic Value Unit
V
R
I
FM
I
O
P
D
R
θJA
Tj,T
stg
DC reverse voltage 85 V
Forward continuous current 200 mA
Average rectified output current 150 mA
Power Dissipation 200 mW
Thermal Resistance, Junction to Ambient 625
Junction and Storage Temperature -65 to+150
ELECTRICAL CHARACTERISTICS
℃/W
℃
@ Ta=25℃ unless otherwise specified
Document number: BL/SSSDE012 www.galaxycn.com
Rev.A 1
BL Galaxy Electrical Production specification
Surface Mount Fast Switching Diodes BAV199DW
Parameter
Reverse breakdown voltage V
Forward voltage V
Junction Capacitance C
Reverse Recovery time t
Symbo
l
(BR)R
F
J
rr
Test conditions MIN MAX UNIT
IR=100μA 85 - V
IF=1.0mA
I
=10mA
F
I
=50mA
F
I
=150mA
F
VR=0V,f=1.0MHz - 2.0 pF
IF=IR=10mA,Irr=0.1*IR,RL=100Ω - 3.0 ns
-

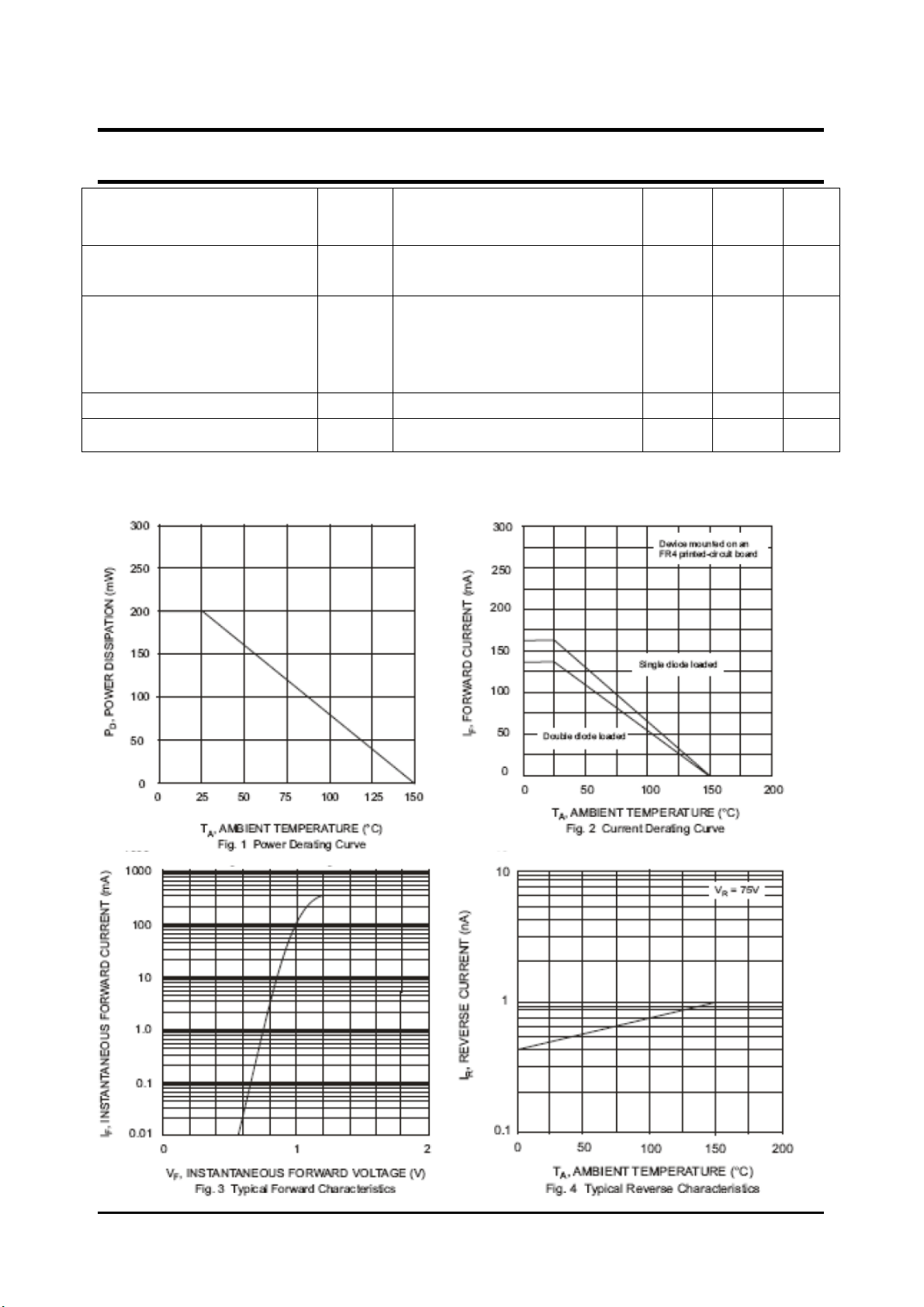

TYPICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified
0.9
1.0
1.1
1.25
V
