BL Galaxy Electrical Production specification
Silicon Epitaxial Planar Diode 1SS380
FEATURES
z Small surface mounting type.
z High speed.
z Suitable for high packing density.
APPLICATIONS
z High speed switching. SOD-323
ORDERING INFORMATION
Type No. Marking Package Code
1SS380 6D SOD-323
Pb
Lead-free
MAXIMUM RATING @ T a=25℃ unless otherwise specified
Parameter Symbol Limits Unit
Peak reverse voltage
DC Reverse Voltage
Peak forward Current
Average Rectified Output Current
Power Dissipation
Junction temperature
Storage temperature
V
V
I
FSM
I
O
P
T
T
RM
R
D
j
STG
40 V
35 V
225 mA
100 mA
200 mW
125 ℃
-55~+125 ℃
ELECTRICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified
Parameter Symbol Min. Typ. Max. Unit Conditions
Forward voltage
V
F
1.2 V IF=100mA
Reverse current
Capacitance between terminals
Document number: BL/SSSDB006 www.galaxycn.com
Rev.A 1
I
R
C
T
15 nA VR=20V
5 pF VR=0.5V,f=1MHz
BL Galaxy Electrical Production specification
Silicon Epitaxial Planar Diode 1SS380

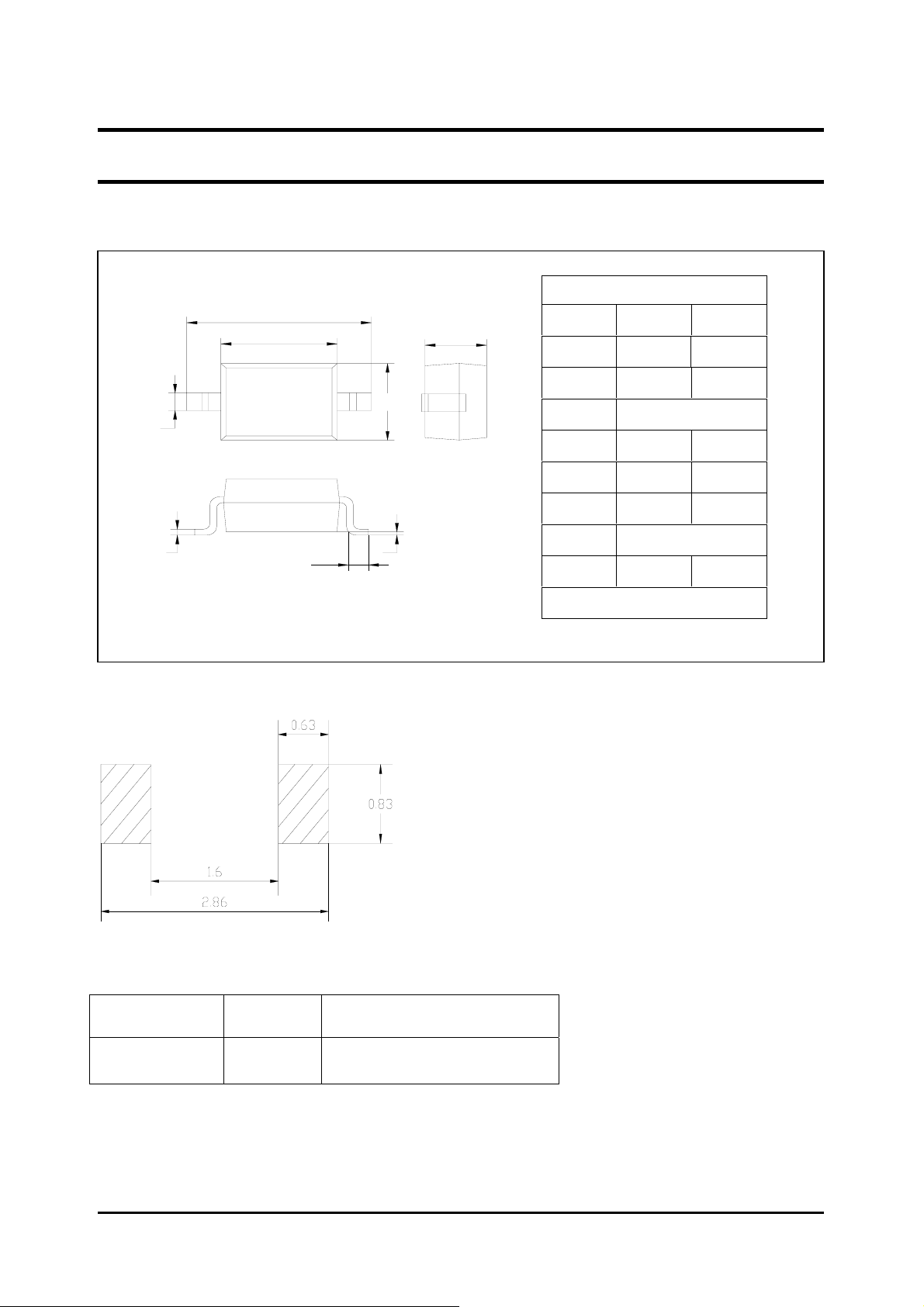

PACKAGE OUTLINE
Plastic surface mounted package SOD-323
SOD-323
1.675 1.725
2.6 2.7
D
J
K
B
A
E
H
C
Dim Min Max
A 1.275 1.325
B
C 0.9 Typical
D 0.25 0.35
E 0.27 0.37
H 0.02 0.1
J 0.1 Typical
K
All Dimensions in mm
SOLDERING FOOTPRINT
Unit : mm
PACKAGE INFORMATION
Device Package Shipping
1SS380 SOD-323 3000/Tape&Reel
Document number: BL/SSSDB006 www.galaxycn.com
Rev.A 2
