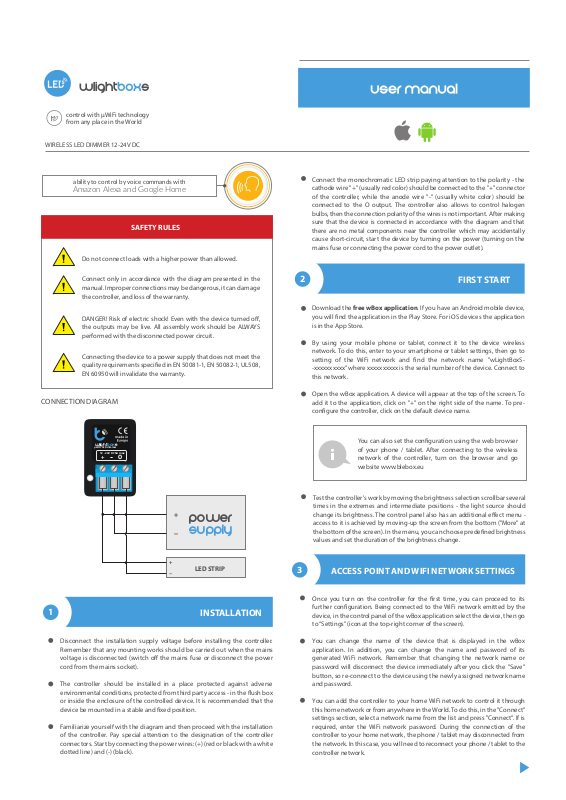

control with μWiFi technology
from any place in the World
WIRELESS LED DIMMER 12-24V DC
ability to control by voice commands with
Amazon Alexa and Google Home
Do not connect loads with a higher power than allowed.
Connect only in accordance with the diagram presented in the
manual. Improper connections may be dangerous, it can damage
the controller, and loss of the warranty.
DANGER! Risk of electric shock! Even with the device turned o,
the outputs may be live. All assembly work should be ALWAYS
performed with the disconnected power circuit.
Connecting the device to a power supply that does not meet the
quality requirements specied in EN 50081-1, EN 50082-1, UL508,
EN 60950 will invalidate the warranty.
CONNECTION DIAGRAM
wlightBoxs
µWiFi LED dimmer
12 - 24V DC 5A max
+
SAFETY RULES
_
O
Connect the monochromatic LED strip paying attention to the polarity - the
cathode wire "+" (usually red color) should be connected to the "+" connector
of the controller, while the anode wire "-" (usually white color) should be
connected to the O output. The controller also allows to control halogen
bulbs, then the connection polarity of the wires is not important. After making
sure that the device is connected in accordance with the diagram and that
there are no metal components near the controller which may accidentally
cause short-circuit, start the device by turning on the power (turning on the
mains fuse or connecting the power cord to the power outlet).
2
Download the free wBox application. If you have an Android mobile device,
you will nd the application in the Play Store. For iOS devices the application
is in the App Store.
By using your mobile phone or tablet, connect it to the device wireless
network. To do this, enter to your smartphone or tablet settings, then go to
setting of the WiFi network and nd the network name "wLightBoxS-
-xxxxxxxxxx” where xxxxxxxxxx is the serial number of the device. Connect to
this network.
Open the wBox application. A device will appear at the top of the screen. To
add it to the application, click on "+" on the right side of the name. To precongure the controller, click on the default device name.
You can also set the conguration using the web browser
of your phone / tablet. After connecting to the wireless
network of the controller, turn on the browser and go
website www.blebox.eu
FIRST START
power
supply
LED STRIP
1
Disconnect the installation supply voltage before installing the controller.
Remember that any mounting works should be carried out when the mains
voltage is disconnected (switch o the mains fuse or disconnect the power
cord from the mains socket).
The controller should be installed in a place protected against adverse
environmental conditions, protected from third party access - in the ush box
or inside the enclosure of the controlled device. It is recommended that the
device be mounted in a stable and xed position.
Familiarize yourself with the diagram and then proceed with the installation
of the controller. Pay special attention to the designation of the controller
connectors. Start by connecting the power wires: (+) (red or black with a white
dotted line) and (-) (black).
INSTALLATION
Test the controller's work by moving the brightness selection scrollbar several
times in the extremes and intermediate positions - the light source should
change its brightness. The control panel also has an additional eect menu access to it is achieved by moving-up the screen from the bottom ("More" at
the bottom of the screen). In the menu, you can choose predened brightness
values and set the duration of the brightness change.
3
ACCESS POINT AND WIFI NETWORK SETTINGS
Once you turn on the controller for the rst time, you can proceed to its
further conguration. Being connected to the WiFi network emitted by the
device, in the control panel of the wBox application select the device, then go
to “Settings” (icon at the top-right corner of the screen).
You can change the name of the device that is displayed in the wBox
application. In addition, you can change the name and password of its
generated WiFi network. Remember that changing the network name or
password will disconnect the device immediately after you click the "Save"
button, so re-connect to the device using the newly assigned network name
and password.
You can add the controller to your home WiFi network to control it through
this home network or from anywhere in the World. To do this, in the "Connect"
settings section, select a network name from the list and press "Connect". If is
required, enter the WiFi network password. During the connection of the
controller to your home network, the phone / tablet may disconnected from
the network. In this case, you will need to reconnect your phone / tablet to the
controller network.
Please remember that in order to control the device outside the local WiFi
network, from anyplace in the World by using the wBox application, the
option "Remote access enabled" in the controller settings must be set to "Yes".
Once you've nished conguring the WiFi network, you can disconnect your
phone/tablet from the controller network and connect your mobile device
directly to your home WiFi network. The control from the wBox application
will work the same way as when the phone / tablet is connected to the
controller network. If the user leaves the local network, for example, leaving
home or using the mobile data, the wBox application will signal this state as
"Remote mode". In this case, the devices can be controlled, but for security
reasons settings are not available.
TECHNICAL SPECIFICATIONS
ADDITIONAL INFORMATION
LOCATION AND TIME OF THE DEVICE,
SCHEDULE
The controller has the ability to work according to a given schedule. To make
this possible, set the device's time. Go to settings in the "Device time" section,
click "Change timezone". Then select your region and location from the list,
conrm your selection clicking the "Save" button. The device will synchronize
its time with the server time (if the controller is in a WiFi network with access
to Internet) or it will download time from the phone / tablet. It is recommended that the controller is always connected to a WiFi network with Internet
access so that it can automatically synchronize its clock.
supply voltage 12 - 24V
maximum current
maximum voltage
maximum load
energy consumption < 1W
number of outputs 1
type of outputs
dimensions 35 x 24 x 15 mm
made of polyurethane composition
housing
protection level
not containing halogens,
inverted polarization, ESDprotection
5A
12 - 24V DC
120 W
MONOcolor mode
open drain, PWM,
low side control
self-extinguishing for
thermal class B (130°C)
IP20
To be able to control devices using the local sunrise and sunset, you must also
select the location of the controller. You can specify the location of the device
using a smartphone or tablet. In the section "Device location", click "Set
locations". Browser will ask whether to share locations - allow. In the "Coordinates" eld,should appear the approximate coordinates of your location. If the
"Set locations" button blinks red with the word "Error", or the "Coordinates"
eld did not change the value from "Not set" to numeric data, a failurehas
occurred during the location download. You should make sure that the phone
/ tablet has a GPS module and that the sharinglocation service is enabled on
the phone.
Adding schedule entries can be performed by clicking the "Add item" button
in the "Schedule" section of settings. You can select the days in which the task
will be performed, the type of entry (at a specic time, or relative to sunrise /
sunset - only having a correctly set location) and set the parameters of the
task. The set tasks will be visible as a list, individual entries can be edited or
deleted.
SOFTWARE UPDATE
To update the software in the controller, connect it to your home WiFi network
(see "Access Point and WiFi Network Settings" section) which is connected to
the Internet. Go to “Settings” (icon at the top-right corner of the screen) and
click the "Get new rmware" button in the nal section on settings. Wait about
1 minute, do not close the interface and don’t perform other actions. The
device will download the latest software. The software version number,
hardware version and device identier can be read at the bottom of the
settings screen.
mounting method
communication standard
transmission type
radio frequency
API
mode
compatible
devices and systems
in the ush-mounted box, on the lamp
housing, directly connected to the LED
strip, e.g. furniture
μWiFi, compatible with WiFi, 802.11g
bi-directional, encrypted
2.4 GHz
open
direct connection (as Access Point),
Wi-Fi connection via a standard router,
connection with access from any
location in the world (requires only
access to the Internet)
Apple iPhone, Apple iPad, iPad Mini,
Android, computers and mobile
devices supporting HTML5
for more information visit our website
www.blebox.eu
or send us an email to: info@blebox.eu
support is available at support@blebox.eu
