Blaze King PEJ 1006, KEJ 1107, PE 1006, KE 1107, Ultra 1006 Specifications

Page 1

Classic Wood Stoves

Princess Ultra Shown With Optional Convection Deck and

Gold Door. Ash Pan & Side Shields As Shown Are Standard.

NOTICE: Improper installation of your wood burning appliance or failure to operate it according to the guidelines detailed in the owners manual, may negate your warranty and endanger your home or family. Contact local building or fire officials about restrictions and installation requirements in your area. Photos and illustrations are for descriptive purposes only. Changes dictated by the manufacturer’s continuing design improvement programs may not be shown. These products are covered by one or more patents in the United States, Canadian and other countries. All Blaze King

Industries prod-

ucts are manufactured under license agreement from: Blaze King

® Industries, 146 AStreet, Walla Walla, WA. 99362 and in Canada by Blaze King

Systems Inc. 1290 Commercial Way, Penticton BC

V2A3H5. Design and specifications subject to change without notice. Rev. 9/03 CP67195 9/02 10M

Blaze King®

Industries

www.blazeking.com

Specifications PEJ/PE 1006 Ultra 1006 KEJ/KE 1107

Square Ft. Heating Capacity 1 1,500+ 1,500+ 2,000+ Wood Length

(Front to Back/Left To Right) 16”/20” 16”/20” 17”/23”

Wood Capacity (approximate) Oak 60# Oak 60# Oak 90# Approximate Weight 350# 410# Width 27” 27” 30” Depth 29” 29” 30” Height

(top of flue collar) 29

3/4” (+4 3/4” w/legs) 343/4

” 34” (+4 3/4” w/legs) Flue Size 6” 6” 8” Door Opening 163/8” x 9” 16

3/8” x 9” 17

3/4” x 10”

Minimum Floor Protection 232” x 44” 32” x 44” 34” x 45” Combustion Chamber Cu. Ft. 2.85 2.85 4.32 Min. Rear Wall Clearance 3 6” 6” 6” Emissions

(Weighted Average EPA) 2.42G 2.42G 1.76G

Overall Efficiency 82.5% 82.5% 82.5% Low Burn Time

(Average)

20 Hours 20 Hours 40 Hours

*Figures below are for roof exit only. Refer to Owners Manual

for other applications.

Single Wall Mobile Home/

Standard Install Reduced Clearances

A.16.00”/386mm 13.00”/314mm

A.16.50”/398mm 13.50”/326mm

B.26.50”/640mm 20.50”/495mm

B.27.00”/652mm 21.00”/507mm

C.24.75”/598mm 16.75”/404mm PE C.25.00”/603mm 17.00”/410mm

D. 9.00”/217mm 6.00”/145mm

KE/PE

E.16.00”/386mm 10.00”/241mm

KE/PE

F.14.00”/338mm 6.00”/145mm

KE/PE

G. 2.50”/ 60mm 2.50”/ 60mm

G. 2.00”/ 48mm 2.00”/ 48mm

H.16.00”/386mm 16.00”/386mm

KE/PE

COMBUSTIBLE WALL

Floor ProtectionRoof Exit*Roof Exit*

YourAuthorized Dealer:

The Facts on Btu’s: There are only two rating methods that mean something to you, the consumer. The first is the btu

output that is achieved during EPAtesting. This testing is quite complicated and costly milled woods are burned. This is a standard for all manufacturer testing and is not intended to provide consumers with a model for how a stove will burn in their home. The second method is what Blaze King refers to as the “Real World” method. These btu’s are achieved during in house testing using the same thing a consumer burns, split, dry cordwood. In our tests, we use fir. The “Real World” btu’s listed are what the average consumer can expect to achieve, with slight variations depending upon geographical location, type of wood, elevation and amount of fuel added. Higher Btu’s are possible. If you were to stand in front of your stove and frequently add fuel, burn the unit on high and have optimal conditions, the PE1006 could produce as high as 87,850 Btu’s and the KE1107 could exceed 90,000 btu’s! However, maximum btu’s would only be achievable at a certain “peak” during the burn. Blaze King does not wish to mislead you so we give you all the facts.

PEJ/PE/Ultra 1006

KEJ/KE 1107 Average EPA Test Fuel (Low Burn) 11,989 Btu’s/hr 8,600 Btu’s/hr Average EPA Test Fuel (High Burn) 35,550 Btu’s/hr 37,800 Btu’s/hr Average Real World Btu’s (Low Burn) 6,400 Btu’s/hr 8,400 Btu’s/hr Average Real World Btu’s (High Burn) 40,000 Btu’s/hr 47,000 Btu’s/hr

Classic Wood Stoves

King Classic 1107 Shown With Optional Dual Fans

Common Specifications

Certified to comply with July 1990 Standards, US (EPA) Environmental Protection Agency

1. Subject to locality, home design, home insulation condition and fuels.

2. Any non-combustible material.

3. Requires Close Clearance /Mobile Home Kit. See stove label or owners manual for specifics. Note: Princess 1006Ultra comes standard with side shields.

For Alcove & Wall Exit Installations

refer to Owners/Operators Manual.

All Units Are EPAAnd Washington State Approved.

Page 2

Superior Engineering

Blaze King® Classic Wood Stoves provide the optimum heating efficiency from solid wood fuel. When wood is initially burned in the firebox of your stove, as much as one-third of the woods energy is released as gases and liquid/vapor materials. Blaze King® catalytic combustor stoves capture these gases and materials and “burns” them instead of allowing this valuable energy source to escape up the chimney. This secondary burn capability means greaterheat output and cleaner emissions from the wood consumed. Youroverall consumption of wood is reduced while your heat output is increased.

More Heat

Blaze King® Classic Wood Stoves have large fire boxes lined with thermo-reactive fire brick which radiates heat directly into the room. They have been tested and certified with an overall efficiency of 82.5% for both the PE1006 & KE 1107. For extended burn times, large logs can be used, and up to 90# of wood can be loaded (KE), eliminating the hassle associated with the frequent reloading of smaller stoves.

Special Features

A large viewing glass door allows the fire to be seen from different angles in the room, creating an atmosphere of an open fireplace. The warmth and beauty of the fire can be highlighted with the addition of the optional gold-plated door.

• Up to 90,000 Btu’s (see reverse side for details)

• Incredible 82.5% Efficiency

• Optional Gold Plated Doors

• 1400 Degree Ceramic Glass

• Optional Variable Speed Dual Fans

• Temperature Sensor Turns Fans off/on

• Mobile Home Approved (All Models)

• Limited-5 Year Warranty PLUS 6 years on Catalytic Combustor

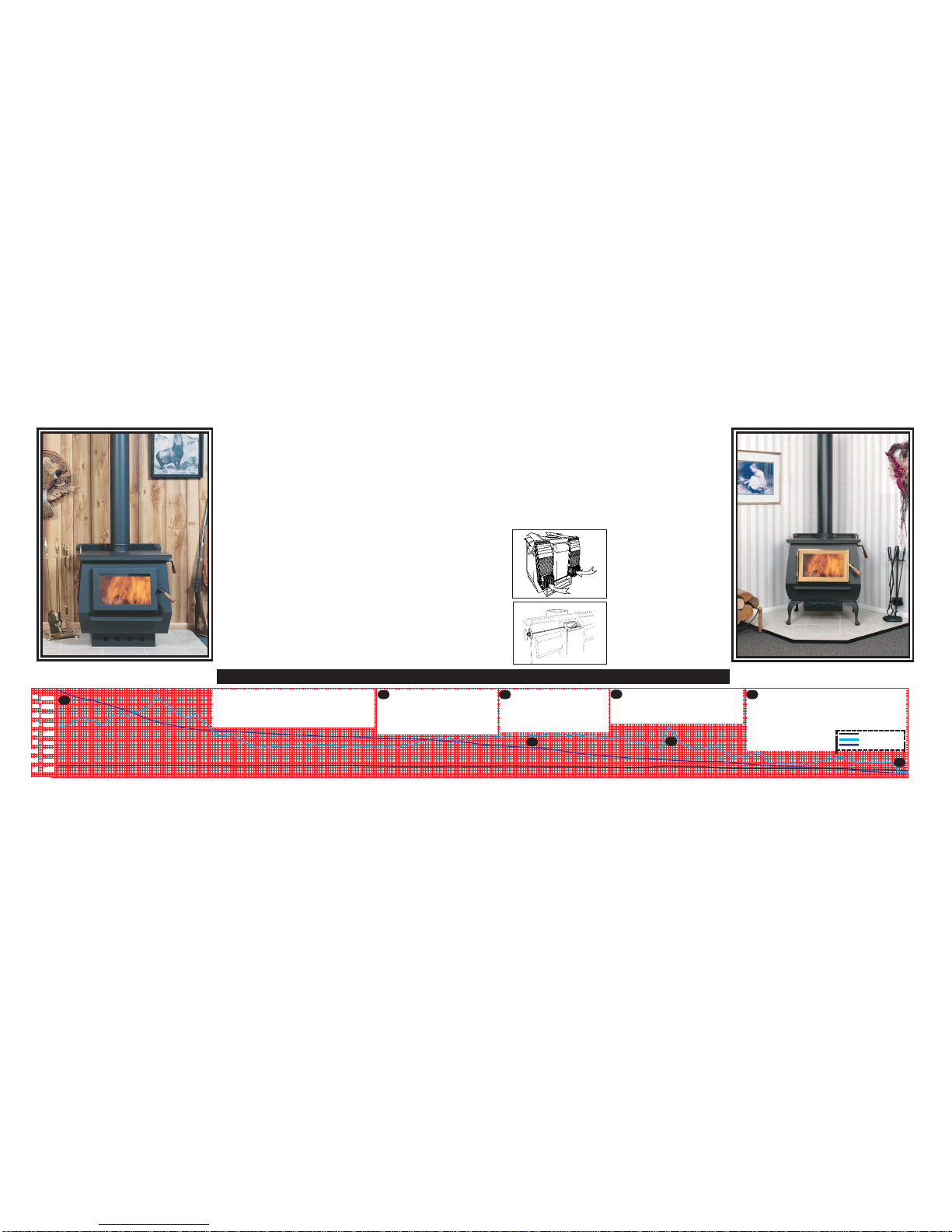

KE Scientific Burn Chart Offers The Proof! Burns Longer, Cleaner & More Efficiently!

Automatic Thermostat

Eliminates need for constant adjustment of draft controls associated with ordinary manual wood stoves. It automatically compensates for the natural uneven burning of wood.

Dual Jet Air Fan System

Radiant heat is stopped by anything in its path. Blaze King solves this problem by using a dual fan system to move air over the firebox surface and circulate it into your home.

Both the KE1107L& PE1006L Feature Parlor Legs. Pictured Above

With Optional Ash Drawer, Dual Fans & Gold Door.

The PE1006 Classic Shown Above with Painted Door and

Optional Dual Fans.

1 2 3

5 6 7

10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

26 27 28 29 30

34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

Hours

1350

1200

1050

900

750

600

450

300

150

40#

45#

50#

35#

30#

25#

20#

15#

10#

Blaze King

It burns cleaner and burns longer

than any ordinary wood stove!

This graph plots the results of a test run by Blaze King Industries, Inc. in its Research and Development laboratory on Friday, August 23, 2002. The test, of a Blaze King

® KE 1107, was run according to WHA(Wood Heating Alliance) stan-

dards for indirect measurement of the heating performance of wood-fired, closed combustion chambered, heating appliances. The lines on this graph trace the temperatures recorded by thermocouple sensors within the catalytic combustorand centered in the flue pipe 48” above the stove top. The fuel level was also charted.

With a hot fire burning and 54-pound load of Douglas

Fir in the firebox, the thermostat was closed down to a low setting. Time Friday afternoon 3:30 p.m. Temperatures at the sensing locations immediately begin to drop, in response to the thermostat setting. Although the flue temperature soon drops below 200 degrees, indicating a slow burn, the catalyst remains lit, actively consuming the smoke and pollutants which would otherwise be exhausted up the stack.

Saturday, August 24, 6:00 a.m., 27+ hours at low

burn and 22 pounds of fuel remain. Average fuel consumption so far 1.02 pounds per hour. Assuming a useful BTU/Pound from the Tamarack of 8,450 and an EPAweighted average overall heating efficiency of

82.5% for the model KE 1107, we get an average heat output of more than 7000 BTU per hour overthe 27 hour period of low, clean burn.

Peaks like this result from the burning wood collapsing, stir-

ring up sparks and smoke (which sets off a flurry of combustor activity), and exposing unburned wood to the fire, resulting in rising firebox temperatures. Note how the thermostat responds to this increase, controlling the airintake to the fire, and automatically lowering the combustion to its previous operating level.

After more than 47 hours of clean burning, the catalytic combustor finally

goes out, having simply run out of fuel. The remaining volatiles are being consumed within the firebox, before they can reach the combustor. The fire itself is not completely out. Abed of hot coals remains, continuing to produce heat for more than an additional 7 hours! Adding more fuel during that time would recharge the fire and relight the combustor. That’s more than 47 hours of continuous heating, with an instant potential for continuing the burn almost indefinitely. Note too, how the flue temperature remains right around 200 degrees fornearly the entire 47 -hour burn. The stoves heat is being put into the room, not wasted up the stack!

Flue Temperature Catalyst Temperature Fuel Level
