Blaupunkt 49/148Z-GB-11B-FGUX User Manual

Full HD SMART LED TV with Freeview HD, Saorview

& USB media player

User Guide

Model No

49/148Z-GB-11B-FGUX

Important safety instruction

Please read these instructions. All
the safety and operating instructions
should be read before the appliance
is operated.

Warnings

• Television sets which weigh 20kg or more must be

lifted and carried by at least 2 people.

• This television does not contain any parts that are

serviceable by the user. In case of a fault, contact the
manufacturer or authorised service department.
Exposing the internal parts inside the TV may endanger
your life. The manufacturers guarantee does not
extend to faults caused by repairs carried out by
unauthorised third parties.

To prevent spread of fi re,
keep candles or other open
fl ames away from this product
at all times

• To reduce the risk of fi re, electric shock or damage

to the TV, do not expose it to dust, rain or moisture.
Never expose the TV to dripping or splashing and do
not place objects fi lled with liquids on or near the TV.

• Do not connect any external devices (DVD player,

games console etc) when the TV is switched on.
Disconnect both the TV and device from the mains
before connecting. Only switch appliances on when
the connection process is complete.

• Do not place the television in a confi ned space and

do not obstruct the ventilation openings at the rear of
the television.

• When installing on a wall, ensure the TV is at

least 5cm from the wall for ventilation.

• Always ensure that the TV’s ventilation openings

are not covered with items such as newspapers, table­cloths, curtains, etc.

• Dispose of this television and any components

including batteries in an environmentally friendly
manner. If in doubt, please contact your local authority
for details of recycling.

• Ensure this TV is used in moderate climates only.

WARNING: Never place a television set on an
unstable location. A television set may fall,
causing serious personal injury or death. Many
injuries, particularly to children, can be avoided
by taking simple precautions such as:

• Use cabinets or stands recommended by the

manufacturer of the television set.

• Only use furniture that can safely support the

television set.

• Ensure the television set is not overhanging the

edge of the supporting furniture.

• Do not place the television set on tall furniture

(for example, cupboards or bookcases) without
anchoring both the furniture and the television
set to a suitable support.

• Do not place the television set on cloth or other

materials that may be located between the television
set and supporting furniture.

• Please educate children about the dangers of

climbing on furniture to reach the television set or its
controls.

• If your existing television set is being retained and

relocated, the same considerations as above should be
applied.

Safety

• For your safety, this appliance is fi tted with a fused

3 pin mains plug. Should the fuse need to be replaced,
ensure that any replacement is of the same amperage
and approved with the BSI mark.

• Never try and replace the mains plug unless

you have adequate qualifi cations and are legally
authorised to do so. In the event that a replacement
mains cable is required, contact the manufacturer for a
suitable replacement.

• Never use the television if it is damaged in any way.

• Always place the television on a fl at level surface

avoiding anywhere which may be subject to
strong vibration.

• The ideal distance to watch the television is

approximately fi ve times the length of the diagonal
measurements of the TV screen.

• Ensure the television is not placed on top of the

power cable as the weight of the television may
damage the cable and cause a safety hazard.

• Never place mobile phones, speakers or any

other device which may cause magnetic or radio
interference, near the television. If interference is
apparent, move the device causing the interference
away from the television.

• To disconnect the apparatus from the mains, please

use the mains plug located on the underside/rear of
the TV.

• Ensure that the mains plug is always easily

accessible.

WARNING: Excessive noise when using
earphones and headphones can cause loss of
hearing.

4

5

Important safety instruction

Maintenance

• To clean your TV, wipe with a soft, dry cloth. If the

surfaces are extremely dirty, use a soft cloth dipped
in a soap and water solution or a weak detergent
solution.

• Never use alcohol, paint thinner or benzene to

clean this unit.

• Before using a chemically treated cloth, read the

instructions that came with the cloth carefully.

CAUTION: If water or other liquid enters the
television through the display panel surface,
a malfunction may occur.

• Time displays.

• Teletext: Do not view a stationary page for a long

period of time

• TV/DVD menus: e.g. listings of DVD disc content.

• Pause mode: Do not leave the TV in pause mode

for long periods of time, e.g. when watching DVDs
or videos.

Important: Once ‘shadow image/screen burn’
occurs, it will never disappear and is not
repairable under warranty.

How do I dispose of this product?

UK: Waste electrical products should not

be disposed of with household waste.
Please dispose of the product at a
designated collection point for recycling
of WEEE. For your nearest facilities, please
see www.recycle-more.co.uk or in store
for details.

ROI: Waste electrical products should
not be disposed of with household waste.
Separate disposal facilities exist. Check
with your local authority or retailer for
recycling advice.

Packaging

• The safest way to transport your item is in the

original box/packaging - please save your packaging
for this.

• You will need the original box/packaging in the

event of warranty/service repair or support. We are
unable to carry out warranty/service if you are unable
to package the item correctly.

Important information regarding use of video
games, computers, captions or other  xed image
displays

The extended use of  xed image program material can cause
a permanent “shadow image” on the LCD/LED panel, also
known as “screen burn”.

This “shadow image” can appear in the background during
normal viewing. This type of irreversible LCD/LED panel
deterioration can be limited by observing the following steps:

1. Reduce the brightness/contrast setting to a minimum
suitable viewing level.

2. Do not display the  xed image for extended periods
of time.

3. Turn the power o when not in use.

Examples of images that are more likely to cause “screen burn”
are as follows (this is not an exhaustive list):

• TV channel logos: e.g. shopping channel logos

and pricing displays - especially if they are bright and
stationary. Moving or low-contrast graphics are less
likely to cause ageing of the screen.

Batteries

• Do not expose batteries to high temperatures,

excessive heat, prolonged sunshine or fi re as this may
cause leakage, explosion or ignition.
Observe the correct polarity when inserting batteries.

• Do not use different types of batteries together or

mix old and new batteries.

• Dispose of batteries in an environmentally

friendly way.

• Certain regions may regulate the disposal of

batteries. Please consult your local authority.

Cd

5

Trademarks

The terms HDMI and HDMI High-De nition Multimedia
Interface, and the HDMI Logo are trademarks or registered
trademarks of HDMI Licensing, LLC in the United States and
other countries.

HDTV

The “HD TV” Logo is a trademark of DIGITALEUROPE.

DVB

The DVB logo is the registered trademark of the Digital Video
Broadcasting (DVB) project.

Manufactured under license from Dolby Laboratories.
Dolby, Dolby Audio and the double-D symbol are trademarks
of Dolby Laboratories.

Youtube

YouTube and the YouTube logo are trademarks of Google Inc.

FREEVIEW

The FREEVIEW words and logos are trade marks of DTV Services
LTD. © DTV Services Ltd.

SAORVIEW

SAORVIEW is a registered trademark owned by RTÉ.

CE Statement:

Hereby, Universal Media Corporation l.t.d. declares
that this LED TV is in compliance with the essential
requirements and other relevant provisions of
Directive 1999/5/EC.

6

7

CONTENTS

Manufacturers Guarantee Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

What is Included in the Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Attaching the Stand / Detaching the Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Securing the TV to a Wall / Wall Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

TV Buttons and Input Source Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-15

Connecting the TV to the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

TV menu operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-27

Picture menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-18

Sound menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Channel menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

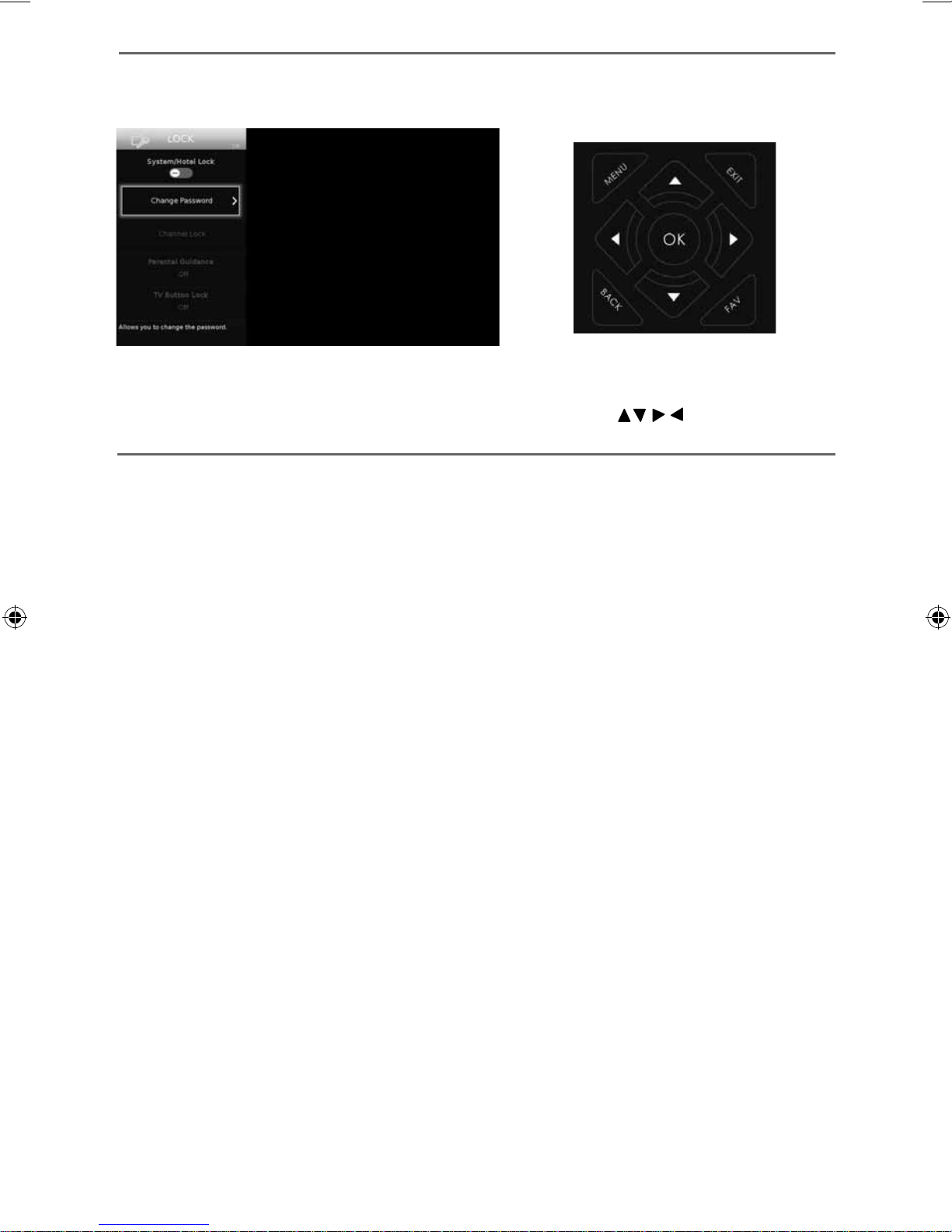

Lock menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Time menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Network Confi guration menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Settings menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Applications menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-27

7 Day TV Guide and Channel List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29-33

Using your TV with a Sky digital set top box . . . . . . . . . . . . . . . . . . . . . . . . 29

Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30-31

Technical Specifi cations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32-33

7

What is Included in the Box

WHAT IS INCLUDED IN THE BOX

Accessories

Included with this TV are the following accessories

1 x User Guide

User Guide

1 x Quick Start Guide

Quick Start

Guide

1 x Remote Control and 2 x AAA Batteries

1 x Mini Component / YPbPr

1 x TV

1 x RF Cable

1 x Mini AV / Composite cable

1 x Stand installation pack

6 x

1 x L (left)

1 x R (right)

Please save your box/packaging as you will need this in the event of warranty/service repair or support.
We are unable to carry out warranty/service if you are unable to package it correctly. The safest way to
package your item in the event of warranty/service repair is in it’s original box/packaging.

8

9

Attaching the Stand

ATTACHING THE STAND

Attaching the stand feet

To complete the stand feet installation you will require a cross head screw driver.

Screws that are included.

6 x

TV panel must be facing downwards.

(fi g.1) Place the TV set on a fl at and
clean surface with the panel facing
downwards to avoid damage, then fi x
the stand feet shown.

1

Back/Shortest

(fi g.2) When the stand feet are
installed correctly the stand feet will
be longest at the front of the TV
and shortest at the back with the
feet pointing away from each other.

Front/Longest

2

4
5
6

(fi g.3) When the stand feet are
in the correct position, secure the
stand feet to the underside of the

1

2
3

3

6 x

TV set using the 6 screws provided.

Detaching the stand

Remove the screws highlighted then remove the stand feet from the underside of the TV set.

4
5
6

1

2
3

6 x

9

Securing the TV to a Wall/Wall Mounting

SECURING THE TV TO A WALL

Securing the TV to a wall with anti-tip straps

For maximum security in the home when using a TV with its stand anti-tip straps should be fi tted. These
are available from supermarket websites and other websites and are an easy, inexpensive and effective
way of ensuring your TV stays safely upright. Straps are designed to be attached to the rear of the TV and
then tethered to the wall or the furniture the TV is stood on.

Note - Please ensure that children do not climb on the TV set.

A) Using one or both of the top wall-mounting
holes and screws (the screws are already supplied
in the wall mounting holes) fasten one end of the
fastening cord/s to the TV.

The Royal Society for the Prevention of Accidents is urging people to take care with fl at-screen televisions.

RoSPA stated in 2010 that “Toddlers are particularly at risk of pulling fl at-screen televisions on to
themselves. They are unsteady on their feet and are attracted by colourful television images.”

The risk is increased as televisions become lighter.

B) Secure the other end of the fastening cord/s to
your wall. (you will need screws/fi xings suitable
for your wall type - available separately from most
DIY stores).

Wall Mounting

IMPORTANT - Before drilling any holes in the wall ensure you are not drilling
where there could be any electrical wires, water or gas pipes.

1) Remove the four screws highlighted that are supplied in the wall mounting
holes.

2) The wall mount can now be easily attached to the mounting holes on the
rear of the TV.

For VESA wall mounting information please refer to the Technical
Specifi cation page.

For optimum viewing, if wall mounting the TV higher than eye level, the TV should be tilted downwards
so that the TV’s screen is ‘face on’. See fi g 1 and 2.

g 1 fig 2

Important – If wall mounting this TV, only use the screws already provided in the wall mounting holes.
Using other screws which are longer could cause irreparable damage to internal parts.

INCORRECT

Viewing angle

10

TV

CORRECT

TV

Viewing angle

11

REMOTE CONTROL

Key

For models with integrated DVD players.
For models with PVR Function.
For models with USB Playback.
For models with 3D functions.

1

STANDBY - Switch on the TV when in standby or vice versa.
MUTE - Mute the sound or vice versa.
SMART - Access the Blaupunkt Smart Portal.
DTV - Switch to digital TV source.
USB - Switch to USB source.
YOUTUBE - Access the Youtube App.

2

NUMBER BUTTONS - 0–9 to select a TV channel directly.
TV GUIDE - Opens the 7 day TV guide (digital TV mode).

- To return to the previous channel viewed.

3

VOL (+/-) - To increase/decrease the sound level.
P.MODE - Scrolls through picture mode options.
S.MODE - Scrolls through sound mode options.
SOURCE - To display the input/source menu.
CH (+/-) - To increase or decrease the channel being watched.
MENU - To display OSD menu.
EXIT - To exit all menus.

- Allows you to navigate the on-screen menus and adjust

the system settings to your preference.

BACK - To go back a previous step.
FAV - To display favourites menu.

Remote Control

1

2

3

4

INFO - Press once for now/next channel information.

- Press twice for information about the current programme.

SLEEP - Press repeatedly to cycle through the sleep options.
AUDIO - To change the audio language (if available).
SUBTITLE - To switch the dialogue at the bottom of the screen (on/off).
TEXT - To enter/exit Text.
TEXT HOLD - Teletext mode - Holds current page which is

displayed (Analogue TV).

TEXT/ZOOM - Zoom function for Teletext and DVD.
DISPLAY - To switch off the screen when listening to radio.
RECORD - Access the USB record function.

- To restart the current chapter

- To advance forward to the next chapter

- To stop the playback/Eject Disc

(To EJECT the disc press/hold the button for 4 seconds)

- To play in fast rewind mode

- To play in fast forward mode

- To play/pause

REC LIST - Opens the list of what has been previously recorded.
GOTO - To go to a specifi c chapter.
A-B - Press once to set point, press a second time to return to point.
ANGLE/3D - Select different angle of DVD.
REPEAT - To repeat playback.

4

11

TV Buttons and Input Source Menu

TV BUTTONS AND INPUT SOURCE MENU

1

Standby Power On/Off

1

Displays the input source menu

2

Displays Menu/OSD

3

Programme/Channel down and menu down

4

Programme/Channel up and menu up

5

Volume down and menu left

6

Volume up and menu right

7

3

2

5

4

6

7

Choosing Mode Input/Source

To switch between the different input/
connections.

For further information on input/connections
please view ‘Connections’ pages.

A) Using the buttons on the remote control:

1) Press [SOURCE] - The source menu will appear.

2) Press [\/] or [/\] to select the input you require.

3) Press [OK].

B) Using the buttons on the Television:

1) Press [SOURCE].

2) Scroll up / down using CH+/ CH- buttons to
the input/source you require.

3) Press Vol+ to change input/source to the
one selected.

12

Example of Source menu

depending on the TV model

13

CONNECTIONS

Connections

DIGITAL
AUDIO OUT

ETHERNET

A

EARPHONE

H

A

Ethernet/LAN* Network Connection

B

Optical Digital Audio Optical Digital Audio output

C

HDMI 1 HDMI input

D

HDMI 2 (ARC) HDMI input

E

VGA PC VGA-PC input

F

VGA PC Audio In 3.5mm PC audio input

RF IN RF / TV Aerial Input

G

OPTICAL

B

C

3 (1.4)

I

ARC

1 (1.4)

D E

YPbPr IN AV IN

J

K

2 (1.4)

CI CARD IN

L

VGA/PC In

VGA/PC (Audio In)

F

5V
500mA MAX

USB (2.0)

RF IN

G

M

H

Earphones Earphone Input

I

HDMI 3 (MHL)** HDMI input

J

YPbPr HD input (Ypbpr)

K

CI CARD IN Common Interface module

L

AV IN Audio/Video Input

M

USB USB port

* The Ethernet/LAN port is used for Freeview HD services and smart functions.

** HDMI 3 (MHL Port) - MHL is a wired solution that allows you to access the media from your phone or
tablet onto the big screen in the highest quality.
By connecting an MHL cable (sold separately) from your mobile device and into your TV you can playback all
your videos, games and photographs directly onto your TV.
MHL simply mirrors the screen of your mobile device so will work with all applications, whilst connected it
will also charge your device too.

13

Connections

CONNECTIONS

Note: Connecting cables are shown for example only and may not be included. Please check ‘What Is
Included In The Box’ page.

Connecting to a device with Composite AV/Video output

TV Source should be set to Composite/AV

L (white)

R (red)

Mini
AV in

Connecting to a device with SCART output (using SCART to AV cable)

TV source should be set to composite/AV

Video
(yellow)

Mini
AV in

Scart

Connecting to a device with HDMI output

A HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio
with minimal loss of quality.

TV Source should be set to the corresponding HDMI port (HDMI 1, HDMI 2 etc)

HDMI 3 (MHL Port) - MHL is a wired solution that allows you to access the media from your phone or
tablet onto the big screen in the highest quality.
By connecting an MHL cable (sold separately) from your mobile device and into your TV you can
playback all your videos, games and photographs directly onto your TV.
MHL simply mirrors the screen of your mobile device so will work with all applications, whilst connected
it will also charge your device too.

14

15

Connections

CONNECTIONS

Connecting to a device with Component/YPbPr output

If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors
you must connect via Component (for picture) and by phono cable (for sound).

TV Source should be set to Component/YPbPr

Y (green)

PB (blue)

Mini

YPbPr

Mini
AV in

Video (yellow)
is not connected

Connecting to a device with VGA/PC output (Laptop or Desktop Computer)

TV Source should be set to VGA/PC

PR (red)

L (white)

R (red)

VGA/PC

in

VGA/PC

(audio

in)

VGA/PC

out

Audio

out

Connecting to an external audio device (Amplifi ers, Surround Sound,
Sound Bars etc)

When connecting via the TV’s 3.5mm Earphone output, this will disable the TV speakers.

There are two options when connecting a device via the 3.5mm Earphone Output and the
Digital Optical Audio Output

3.5mm

earphone

Digital

audio

out

(optical)

OPTION 1 for 3.5mm EARPHONE Output

OPTION 2 for Digital Optical Audio Output

3.5mm
audio

in

Digital

audio

(optical)

in

Connecting an Ethernet/Network cable

The Ethernet/LAN port is used for Freeview HD services and smart functions.

Ethernet
port

Ethernet
port

15

Connecting the TV to the Internet

CONNECTING THE TV TO THE INTERNET

When you fi rst power on your new SMART TV there will be an option to follow various on-screen set up
instructions. These instructions will enable you to connect to the internet via your home network.
You can connect to your home network either wirelessly or with an Ethernet cable.

If you decide not to follow the initial set up instructions and need to connect at a later date please follow
these simple steps below:

Connecting your TV with a wireless connection

1) Press Menu on the remote control (fi g.1).

2) Scroll through the menu then select and enter the ‘Network’ menu.

3) in the ‘Network’ menu, example below, scroll down and select ‘Wi-fi Confi g’ (fi g.2).

4) Within the ‘Wi-Fi confi g’ options, highlight and select ‘Wi-Fi Auto Search’.

5) The TV will then automatically search for networks.

6) Select the preferred type of network connection then enter the network password.

7) The TV will then establish a connection.

Note: An icon will appear in the top right hand side of the ‘Application’ menu to show you if the TV is
connected to the internet.

Connecting your TV with an Ethernet/LAN cable:

1) Plug in your Ethernet cable into the RJ45 (Ethernet) socket located at the rear of the television.

Ethernet
port

2) Press Menu on the remote control (fi g.1).

3) Scroll through the menu and select and enter the ‘Network’ menu.

4) In ‘Network Confi gurations’, select ‘Cable’ (fi g.2).

5) Set will automatically confi gure itself.

6) Exit the menu by pressing ‘EXIT’ on the remote control.

fi g.1

fi g.2

16

17

TV Menu Operation

PICTURE MENU

To access this menu, press [MENU] button on the remote control and scroll right.
To select a sub menu press [OK]

If you wish to make changes to any of the default settings, use the scroll buttons.
To confi rm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

Picture Mode - Choose from the following presets:

Dynamic Recommended settings for fast moving pictures

Standard Standard settings

Mild Set to be lighter in colour and less bright

Personal Lets you manually alter all the settings

Economy Power saving mode which reduces the energy used by up to

25% (by reducing the power to the LED/LCD panel).

In Economy mode, the TV will switch itself to Standby mode

after 3-5 hours in the event that the TV buttons or remote

control buttons are not pressed (change the picture mode

to another setting to de-activate this function)

You can make the following adjustments in

Contrast - Switch the balance between black and white.

Brightness - Increase or decrease the brightness of the picture.

Colour - Increases the colour from black and white.

Tint - Lets you increase or decrease the level of tint within the picture

(only available for NTSC source signal).

Sharpness - Increase or decrease the sharpness of the picture.
Colour Temperature - Choose from the following presets:

Normal Default settings

Warm Increases red within the picture

Cold Increases blue within the picture

Personal mode:

17

TV Menu Operation

PICTURE MENU

Aspect Ratio - Within the UK the picture format varies depending on the channel/broadcast. There are a

number of different options to best meet your needs. Choose from the following settings:

Auto

Automatically displays the best picture format so the picture is in the correct position, black lines maybe
viewable at the top/bottom and/or sides.

4:3

Displays the 4:3
picture in its
original size.
Side bars are
shown to fi ll the
16:9 screen

Fills the screen with
a regular 16:9 signal
and 4:3 picture
format will be
stretched to fi ll
the screen

Full Screen

Displays a picture in
the full screen size
without overscan.
16:9 signal will be
displayed in original
proportion. Other
picture format will
be stretched to fill
the screen

Zoom1 and Zoom 216:9

The picture
is the correct
proportion but
zoomed in to
fi ll the screen

Noise Reduction - Allows you to switch noise reduction ON or OFF. Choose one of the following presets:

low, middle, high and Off.

MPEG Noise Reduction - Allows you to change the MPEG noise reduction settting. This feature improves

the quality of pictures by reducing the picture noise without compromising the picture resolution. Choose

one of the following presets: low, middle, high and Off.

Active Contrast - Automatically optimises the ‘backlight’ and ‘contrast’ of the picture according to the

brightness of the screen. Choose one of the following presets: low, middle, high and Off.

18

19

TV Menu Operation

SOUND MENU

To access this menu, press [MENU] button on the remote control and scroll right.
To select a sub menu press [OK]

If you wish to make changes to any of the default settings, use the scroll buttons.
To confi rm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

Sound Mode - Choose from the following presets

Standard Default settings

Music Emphasises music over voices

Movie Provides live and full sound for movies

Sports Emphasises sound for sports

Personal Selects your personal sound settings. Any adjustments made
automatically sets the sound mode to

Personal.

EQ - Adjust the audio level of separate frequencies via the band equaliser.

Balance - To switch the sound between the left and right speakers.

Auto Volume Level (AVL) - When ‘on’ is selected, the volume will attempt to stay at a constant level

regardless of TV programme and advertisements.

Surround Sound - Allows you to turn the function ON or OFF.

Digital Output - This is the digital optical audio output. Choose from the following options:

Off To turn off Digital Output

Auto Selects the best settings automatically

PCM Select this option if you are connecting to a Stereo Hi-fi via optical cable (Pulse-code

modulation (PCM) is a digital representation of an analogue signal)

Audio Description - This allows the user to switch Audio Description ON or OFF. (Audio Description is

a service available on certain programmes. It provides a description of what is happening during the

selected programme for a person who is visually impaired).

AD Volume - This allows the user to increase and decrease the AD (Audio Description) volume level.

Audio Delay - Enables the user to adjust setting to sync picture and audio.

SPDIF Delay - Enables the user to adjust sound setting to sync picture and audio for external speakers

connected via digital audio output.

Tip: Equaliser settings can only be adjusted when the sound mode ‘Personal’ is selected.

19

TV Menu Operation

CHANNEL MENU

To access this menu, press [MENU] button on the remote control.
To select a sub menu press [OK]

If you wish to make changes to any of the default settings, use the scroll
To confi rm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

Auto Tuning - Allows you to retune the television for all digital channels, digital radio stations and

analogue devices.

Analogue Manual Tuning - Allows you to manually tune your analogue signal.

Freeview/Saorview Manual Tuning* - Allows you to manually tune your digital signal.

Channel Edit - Allows you to delete, move, skip and select favourite channels.

Important: To receive Freeview/Saorview channels, in particular
HD channels, you will need a Digital TV aerial and be in a good
Freeview/Saorview coverage area. You can check the coverage
for your area at www.freeview.co.uk or www.saorview.ie

Please note that any Freeview HD channels found during tuning
will be placed in channel positions above 100.
For example, 101 (BBC1 HD) 102 (BBC2 HD) etc.

*Freeview channels are only available in the UK, Saorview
channels are only available in the ROI.

buttons.

Signal Information - Allows you to view signal frequency, signal quality and signal strength.

CI Information - Pay per view services require a “smartcard” to be inserted into the TV. If you subscribe to

a pay per view service the provider will issue you with a ‘CAM’ and a “smartcard”. The CAM can then be

inserted into the COMMON INTERFACE PORT (CI Card In).

Schedule List - Lists your programme reminders.

Software Update (OAD) - Switch on/off OAD (over air download) software updates.

OAD Scan - Scan for (over air download) software updates.

Tip: If you do not press any buttons for 30 seconds, the menu will automatically exit. You can change
the length of time before the menu exits automatically - see ‘OSD Timer’ in the Time Menu

20

21

TV Menu Operation

LOCK MENU

To access this menu, press [MENU] button on the remote control and scroll right.
To select a sub menu press [OK]

If you wish to make changes to any of the default settings, use the scroll buttons.
To confi rm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

System/Hotel Lock - Allows you to lock or unlock the menu. You will be asked to enter a 4 digit password

Use the

Change Password - Allows you to change the password.

Channel Lock - Allows you to lock certain channels manually.

Parental Guidance - Allows you to set the rating to block certain content based on age information

TV Button Lock - Allows you to lock the buttons on the side of the TV set.

Default Source - Allows the user to set the default source. The default source is the source the TV starts on

when fi rst switched on.

Default Channel - Allows the user to set a channel as the default channel on the Digital source. The

default channel is the channel the TV starts on when fi rst switched on.

Max Volume - Allows you to adjust and set the maximum volume.

Source Lock - Allows you to lock the source menu.

◄ button to quit the password input or use the ► button to clear. Default password is 0000.

21

TV Menu Operation

TIME MENU

To access this menu, press [MENU] button on the remote control and scroll right.
To select a sub menu press [OK]

If you wish to make changes to any of the default settings, use the scroll buttons.
To confi rm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

Clock - Shows the date and time.

Off Time - Allows you to set aspecifi c time for your TV to turn off.

On Time - Allows you to set aspecifi c time for your TV to turn on, the channel it will then display, the

source it will be on and also the volume. This function can then be toggled to repeat every day or

acertain day.

Sleep Timer - Lets you set the sleep timer so the television automatically switches off after a set amount

of time. Off -> 10min -> 20min -> 30min -> 60min -> 90min -> 120min -> 180min -> 240min.

OSD Timer - Lets you adjust the amount of time the On Screen Menu stays on the screen

before disappearing. Off -> 5secs -> 15secs -> 30secs -> 60secs.

Auto standby - Set ‘Auto Standby’ to OFF, 3 hours, 4 hours or 5 hours.

Time Zone - Change your current time zone.

22

23

Network Confi guration

NETWORK CONFIGURATION MENU

To access this menu, press [MENU] button on the remote control and scroll right.
To select a sub menu press [OK]

If you wish to make changes to any of the default settings, use the scroll
To confi rm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

The Network connection enables you to update the TV software and a number of Smart TV functions.

For the network confi guration to work the TV will need to be connected to your home network via an
ethernet cable, with these requirements in place the TV will connect to the network automatically.

Network Confi g - Allows you to select either Cable or Wifi connection.

WIFI / IP Confi g - Allows you to access LAN network connection settings. Choose from the following options:

Auto Will automatically connect the TV to your home network(this is the default setting

and is highly recommended)

Manual Allows you to manually change the IP, Netmask, Gateway and DNS information.

WIFI Confi g - If WIFI is selected during fi rst time installation process.

Wi-Fi Confi guratrion Wireless network connection settings

Wi-Fi Auto Search Automatically searches for available wireless networks. Select the desired

Wi–Fi network and then enter the network password (if network is password

protected). Once the password is accepted, you will not be asked for it again.

Network Info - Allows you to view Information about network settings.

Network Test - Allows you to test the network connection.

buttons.

23

TV Menu Operation

SETTINGS MENU

Language - Allows you to change the language of the menu.

Audio Language - Select your preferred primary audio language.

Audio Language 2 - Select your preferred secondary audio language.

Subtitle Language - Select your preferred primary subtitle language.

Subtitle Language 2 - Select your preferred secondary subtitle language.

Hearing Impaired - This allows the user to turn on the Hearing Impaired function, this produces subtitles on

the screen which provide a description of what is happening during the selected program.

Blue Screen - Changes the background when there is no input between clear and a blue background (only

available on some sources).

First Time Installation - Allows you to access the First Time Installation menu and retune the TV set.

Software Update (USB) - Allows you to update your TV with the newest software using a USB memory stick.

Software and instructions are available on our website.

Software Update (NET) - Allows you to update your TV with the newest software via your internet connection.

This will require the TV to be connected to the internet and have a blank USB memory stick inserted in to the

USB input of the TV. The software will be downloaded on to the blank USB memory stick and then complete

the update process.

Reset TV - This resets the menus to factory settings and clears all the TV channels from the television.

HDMI CEC (Consumer Electronic Control) - Allows HDMI devices to control each other and allows the user to

operate multiple devices with one remote control (only available with compatible devices).

LED Status - Allows the user to switch the LED power indicator light ON or OFF when the TV is being operated.

(When this option is set to OFF the LED power indicator light will fl ash when the remote control is used).

Version Info - Allows you to view the version/information of the software installed on the TV set.

Store Mode - Switch ON/OFF shop demonstration mode (available only if store mode was selected during fi rst

time installation).

Note: For further support with software updates, contact our technical support team or refer to the
‘product support’ section of the website. If the TV is using the newest software available it will not
attempt to update the software.

24

25

TV Menu Operation

APPLICATIONS MENU

To access this menu, press [MENU] button on the remote control and scroll left/right.
To select a sub menu press [OK]

If you wish to make changes to any of the default settings, use the scroll
To confi rm any settings press [OK] button.
To exit this menu at anytime, press the ‘MENU’, ‘EXIT’ or ‘BACK’ button on the remote control.

The Application Menu allows you to access the TV set’s “SMART” features. In this menu you can enter

various functions including Youtube, Facebook, etc. At the bottom of the screen there are some key apps

for easy and quick access.

buttons.

Blaupunkt Smart Portal

Blaupunkt Smart Portal is a portal to a variety of apps and multimedia which the TV acesses via the

internet. To enter the Blaupunkt Smart Portal you will be prompted to enter a language and accept the

terms and conditons. once the relevant information has been entered you will be able to use a range of

features such as MUZU.TV, Viewster and Dailymotion. Content is updated and managed from a central

source, so look out for new features and updates.

Note: If you wish to reset the settings for Blaupunkt Smart Portal back to the default settings, you will
need to access the Blaupunkt Smart Portal and enter the settings menu. In the settings menu press the
YELLOW button on the remote control, you will then be asked ‘Yes’ or ‘No’ to confi rm your decision,
highlight ‘Yes’ and press ‘OK’ on the remote control to complete the reset process.

25

TV Menu Operation

APPLICATIONS MENU

USB mode and media server

The USB media and the media server offer the playback of various different types of content that is
either saved on your USB memory stick or external media server. (USB mode allows you to view/playback
fi les from an external USB device and Media Server connects to your home network and can view/playback
fi les from your laptop, PC, tablets and smart phones).

When accessing the USB media or media server features the below menu screen will appear. The content
will be divided into Photo, Music, Movie and All.

1) You can navigate through the menus using the
scroll

to confi rm the item you wish to play/view press the
[OK] button.

3) You can now access the item. Press OK to view.

buttons on the remote control,

2)

USB mode - Select the USB drive (If your drive

only has 1 partition you will only see 1 item)

Media server - Select the external device

that you would like to access.

4) Whilst viewing your media, you can control
the item by using the remote control buttons
(below) or by pressing (Info) to access the
on-screen playback menu, you can now make
your selection by using the and (OK)
buttons on the remote control.

Fig.A

Tip: If you experience a playback issue, please ensure the fi les being used are the correct format (example - the picture
plays but no sound) See technical specifi cation page for compatible fi le types

Note: USB extension cables are not recommended as they can cause a reduction in picture/audio quality and stoppages
during play back of USB content.

26

27

TV Menu Operation

APPLICATIONS MENU

Wireless Connection

The Wireless Connection feature allows you to connect to a compatible external device such as a laptop,
tablet and/or smart phone. Once connected, your device will mirror all its content on to the TV, this
allows you to view photos, emails and This allows almost unlimited applications including many video on
demand and subscription based services, for example Blinkbox, Netfl ix and Amazon, to be played on your
smartphone or tablet and at the same time wirelessly ‘streamed’ and viewed on the TV.

Many Android and Windows devices include ‘Screen Mirroring’ as standard. Apple devices do not
currently allow it, however, it is possible to ‘mirror’ from your Apple smart phone or IPad etc. when
used with an Apple TV box (available separately).

Some newer / higher spec smartphones, tablets, laptops & computers may include Intel’s technology,
called WiDi (Wireless Display), WiDi allows you to wirelessly ‘mirror’ content from your WiDi equipped
device directly on to the TV’s screen.

Note: If your smartphone or tablet does not include ‘Mirroring’, it may be possible to connect a suitable
cable from your device directly to one of the HDMI inputs on the rear of the TV (for example, if your
device supports video output and has a Micro USB socket, you can purchase a Micro USB to HDMI cable
from your retailer).

Applications

Contains the most commonly used apps for quick and easy access.

Youtube - Video sharing website allows you to discover, watch and share originally-created videos.
BBC iPlayer - Catch up on your favourite BBC TV programmes and view exclusive content.
BBC News - Access the BBC News app for up-to-the-minute and breaking news reports.
BBC Sport - The BBC Sport app offers the latest sports news, live action, scores and highlights.
Web browser
Twitter - Online social networking service that enables users to send and read short 140-character

messages called “tweets”.

Facebook - The popular social networking website that allows registered users to create profi les, upload

photos and videos.

- Use the Seraphic app to access websites via the internet.

27

7 Day TV Guide and Channel List

7 DAY TV GUIDE

TV Guide is available in Freeview TV mode. It provides information about forthcoming programmes
(where supported by the Freeview channel). You can view the start and end time of all programmes and
on all channels for the next 7 days and set reminders.

1) Press [TV GUIDE]. The following 7 Day TV Guide will appear..

2) Navigate through the menu using

You can now:

View a previous day by pressing GREEN
View the next day by pressing YELLOW
Set a reminder by pressing BLUE

3) Press [EXIT] to exit the 7 day TV Guide

.

Channel List

To view the channel list, please ensure that the TV is set to either the analogue or digital source and
no menus or TV notifi cations are displayed.

1) Press [OK] on the remote control and the
channel list menu will appear.

2) Scroll through the channel list by using buttons then
press [OK] to view the channel that is currently highlighted.

You can also:

View Freeview HD channels by pressing RED
View standard defi nition Freeview channels by pressing GREEN
View radio channels by pressing YELLOW
View all channels by pressing BLUE

28

3) Press [EXIT] to exit the channel list.

29

General Information

USING YOUR TV WITH A SKY DIGITAL SET TOP BOX

Option 1) Connecting your TV to your Sky box (when both the TV and Sky Box are located
in the same room)

Depending on your Sky Box & TV model, connect either by SCART or HDMI cables
(available separately) .

If connecting by SCART, select the ‘Input source’ on the TV as SCART. If your TV does
not have SCART, please refer to ‘Connections’ pages in this user guide for alternative
ways to connect.

If connecting by HDMI, select the ‘Input source’ on the TV as HDMI (if the TV has more
than 1 HDMI port, ensure you select the input source to match the HDMI numbered port

SCART adapter
or HDMI cable

on the rear of the TV).

If you wish to use your Sky remote to operate the TV’s functions, you will need a Sky

Sky Box

remote control (Revision 9 or later) and you will need to program a 4 digit code into it.
See bottom of this page.

Option 2) Connecting your TV
to your Sky box (when your
Sky box is located in a different
room to the TV)

Please note, if you are adding a ‘Magic
Eye/TV Link’ to your system so that
you can use your Sky remote control
to change the Sky channel in the room
where the 2nd TV is located, please

HDMI cable or
SCART adapter

RF/COAX cable from
Sky Box to 2nd TV

refer to the instructions included
with the TV link/magic eye in order to
ensure the RF or RF2 output on your
Sky box is powered on. (The red LED
light on the TV link/magic eye will light

Sky Box

Connect to RF
or RF2 output
on the Sky box

up if the RF / RF2 output is correctly set
up) If you do not have the instructions that came with the TV link/magic eye, instructions on how to do it can be
found on our web site.

Connect to the
Aerial/RF input
on the 2nd TV

TV Link/Magic Eye
(optional)

2nd TV in
another room

1) To tune the TV to the Sky box, on the 2nd TV, select the ‘Analogue’ input source.

2) Select the channel that you wish to store the Sky box/channel on. (If you do not use channels 1-5 because you
no longer have analogue terrestrial channels after digital switchover, you may choose to select channel 1 to store
the Sky box/channel, if you still have and use analogue channels 1-5, you may for example decide that channel 6 is
the best option for you)

3) Press the corresponding number on the remote control to select the desired analogue channel chosen as per
point 2 above.

4) On the TV remote control, press Menu. Now navigate through the menus to select Manual Tuning or Analogue
Manual tuning (refer to the Tuning/Channel menu section of this user guide if necessary)

5) Manually tune in the channel (usually, the Sky box is at a frequency between 800Mhz and 850Mhz) once the
Sky box/channel is found, press ‘OK’ to store it.

If you wish to use your Sky remote to operate the TV’s functions, you will need a Sky remote control (Revision 9 or
later) and you will need to programme a 4 digit code into it. See below.

Using a Sky remote or a universal remote to operate your TV

Sky remote control - If you wish to use your Sky remote to operate the basic functions of your TV, you need to
program a 4 digit code into it. Please note - you will need a Sky Revision 9 remote control (or later). The code
required for this television is 2134. If you wish to upgrade/replace your existing Sky remote control to the latest

version, you can do so on our website.

Universal remote control - If you wish to use a Universal remote control to operate your TV, please refer to the
website for a full list of codes. (Please note we only have codes for One for All branded remote controls, if you
have an alternative brand of Universal remote, please refer to the manufacturer for the code.)

29

General Information

FREQUENTLY ASKED QUESTIONS

General I would like to have louder

General Why are some options in the menu

General Can I stop my TV automatically

TV I have tuned in Digital TV but I

TV I have re-tuned my television but

VCR/DVD
Recorder

Game Consoles I have connected my Playstation/

Game Consoles I have connected my Playstation/

System Lock I have changed the password

USB Mode I have inserted a USB Memory Key,

USB Mode Using a USB portable hard drive /

Freeview HD I cannot access all Freeview

Freeview HD I cannot  nd the Freeview HD

sound by connecting additional
speakers. For TV models with
digital optical audio output.

unavailable and greyed out.

turning o after 4hrs?

am not receiving any or all of the
channels and/or the channels I
receive are breaking up.

when I switch it o it is not storing
the channels.

I have connected the TV to my VCR
or DVD Recorder via SCART but it is
not recording.

Xbox to the TV via HDMI, but I am
not receiving any pictures or sound
on my TV

Xbox to the TV via Component
cables (red, green & blue) but I am
not receiving any sound.

on the television and now
forgotten it.

but the TV does not recognise it.

larger than 32GB.

channels.

channels.

1) Use the 3.5mm headphone output and a 3.5mm to phono cable (available
separately) to connect to an amplifi er/surround sound system. Please note this
will deactivate the TV’s built in speakers.

2) Connect a digital optical audio cable from the TV’s digital optical audio output
to your amplifi er/surround systems digital optical audio input.

Some options are only available in certain sources, i.e. HDMI. They are
unavailable in the other sources where they have no a ect.

Yes, in the ‘Time’ menu settings, scroll down to Auto standby and select OFF.

1) Check you are in an area that can receive Freeview/Saorview, visit www.freeview.co.uk or
www.saorview.ie

2) Check you are using an aerial that is able to receive a good digital signal. In most cases,
you will need an outdoor digital hi-gain/wideband aerial. In areas that have excellent
digital coverage, you may be able to use a loft type aerial but it is highly likely that you will
also need to connect a booster between the back of the TV and the TV aerial wall socket.
Unfortunately, to receive a good enough digital signal, it is not possible to use a portable/
indoor type aerial.

If the TV does not save the channels when you power it o , it’s likely the channel database
has become corrupt.

1) Turn o the TV.

2) Remove the RF/Aerial cable from the rear of the TV and then turn the TV back on again.

3) Using the remote control, press Menu followed by 8-8-8-8 to enter the initial setup/ rst

time installation menu.

4) Press OK (let the TV run the full tuning process).

5) Once completed, turn o the TV, reconnect the RF/Aerial cable then turn the TV back on

again.

6) Repeat steps 3 & 4.

In addition to connecting via SCART, you should connect the aerial cable from the wall
socket to your VCR/DVD Recorder and another aerial cable from the VCR/DVD Recorder to
the TV.

1) Ensure the TVs’ source is set to HDMI.

2) Check your settings on your Playstation/Xbox are as per the Playstation/Xbox
instruction manual.

Component cables only provide HD pictures. For the sound you will need to connect the
red & white audio cables on the Playstation/Xbox to the red & white phono inputs (or mini
AV input where  tted) on the rear of the TV. Please refer to the ‘Connections’ pages.

There is a master password of 4711, to gain access to the TV menu and reset the
normal password.

Ensure the USB Memory Key is formatted to type FAT32.

If you wish to use a portable hard drive larger than 32GB, please note that it must be
formatted to the FAT32  le system in order to operate on this TV. Windows XP/Vista
computers are only capable of formatting up to 32GB, therefore, you will need a software
programme/utility to format larger hard drives.
Please refer to the website, www.umc-uk.co.uk, for more information.

Some data channels for Freeview can only be obtained when the TV ‘s ethernet port is
connected to your router.

Freeview HD channels found during tuning will be placed in channel positions above 100.
For example, 101 (BBC1 HD), 102 (BBC2 HD) etc.

30

31

General Information

FREQUENTLY ASKED QUESTIONS

Smart I cannot access Smart apps on my

Smart TV.

Smart I cannot access content through the

Media Server settings

Smart I cannot access content through the

Wireless Connection settings

Smart While using Media Server, access is

not possible or connection is slow

Smart I cannot access Facebook or Twitter Ensure that you have an active account and that your network is not blocking access to

Check your TV is connected to the internet and there is suitable signal strength.
You can carry out a Network Test as follows:

1) Press Menu on the remote control.

2) Select ‘Network’ Menu then ‘Network Test’.

3) This will show the status of the internet connection.

If you have no internet connection you must re-connect your TV as follows:

1) Press Menu on the remote control.

2) Select ‘Network’ Menu then ‘Wi- con g’.

3) Then ‘Wi Auto Search’.

4) The TV will then automatically search for Networks.

5) Select the desired network then enter the Network password.

6) The TV will then connect.

Note: An icon will appear in the top right hand side of the Application page to show you if
the TV is connected to the internet.

Check your TV is connected to your local network and there is suitable signal strength.
Check the server devices you are trying to connect with are also on the Network and are set
to share content.

Ensure the device you are trying to mirror onto the TV is correctly paired with the TV.
Check the settings on the device, move your device closer to the TV set, check the user
guide of the device to ensure it is compatible with this function.

If the folder you are attempting to view contains a large amount of  les, it may take a little
while to load, this is normal, content may be blocked on the host PC. Recon gure the host
PC to allow external access.
Note: Host may not be connected to your network.

these sites.

Smart The YouTube app does not work

and/or is erratic

Ensure that your network is not blocking access to YouTube and the speed of your internet
connection is fast enough for viewing YouTube content.

31

General Information

TECHNICAL SPECIFICATION

Product  che

Trademark

Model ID 49/148Z-GB-11B-FGUX

Energy e ency class A+

Visible screen size (diagonal) 123 cm / 49 inches

On mode power consumption 67.0 W

Annual energy consumption *1 98 kWh

Standby power consumption *2 <0.50 W

O mode power consumption 0 W

Screen resolution 1920 (H) x 1080(V)

*1: Energy consumption XYZ kWh per year, based on the power consumption of the television operating
4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.
*2: When the TV is turned o with the remote control/standby button and no function is active.

Blaupunkt

Additional Technical Information

RF 75 ohm Antenna / Analog / DVB

Inputs 3 x HDMI, 1 x USB, 1 x Mini Composite Video/CVBS,

1 x Mini Component/YPbPr,

1 x VGA/PC, 1 x 3.5mm jack for PC audio input,

1 x shared audio for Composite Video & Component/YPbPr

Sound Outputs 1 x Digital Optical Audio output, 1 x 3.5mm Headphone

Speaker / Ampli er Watts (RMS) 2 x 10 / 2 x 8

Voltage and power consumption 110-240V 50 / 60Hz

67/95/110W

(ecomode/standard/max)

Dimensions including stand (mm)

Net weight (Kgs) 11.4

Wall Mounting VESA 200 x 200 (mm)

1114 W x 702 H x 230 D

32

33

TECHNICAL SPECIFICATION

Compatible fi les in USB Mode

General Information

33

BLA/MAN/0311
