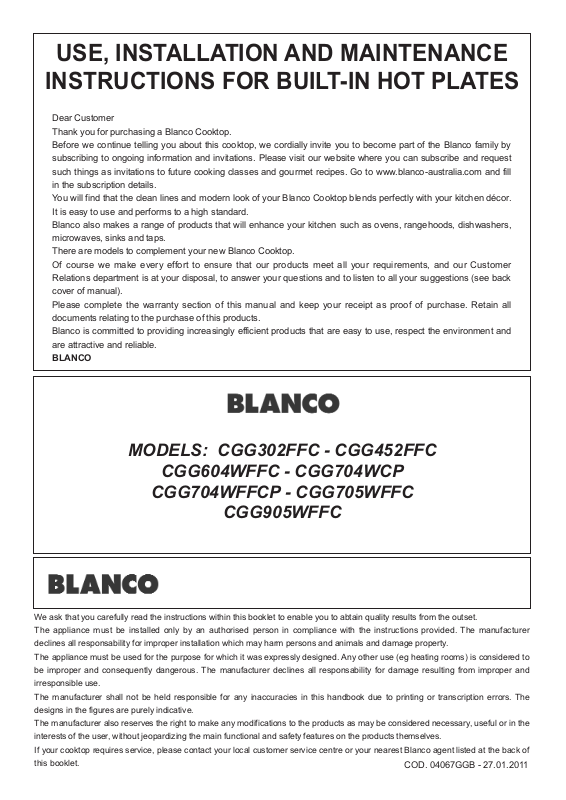

Blanco CGG905WFFC User Manual

MODELS: CGG302FFC - CGG452FFC

CGG604WFFC - CGG704WCP

CGG704WFFCP - CGG705WFFC

CGG905WFFC

We ask that you carefully read the instructions within this booklet to enable you to abtain quality results from the outset.

The appliance must be installed only by an authorised person in compliance with the instructions provided. The manufacturer

declines all responsability for improper installation which may harm persons and animals and damage property.

The appliance must be used for the purpose for which it was expressly designed. Any other use (eg heating rooms) is considered to

be improper and consequently dangerous. The manufacturer declines all responsability for damage resulting from improper and

irresponsible use.

The manufacturer shall not be held responsible for any inaccuracies in this handbook due to printing or transcription errors. The

designs in the figures are purely indicative.

The manufacturer also reserves the right to make any modifications to the products as may be considered necessary, useful or in the

interests of the user, without jeopardizing the main functional and safety features on the products themselves.

If your cooktop requires service, please contact your local customer service centre or your nearest Blanco agent listed at the back of

this booklet.

COD. 04067GGB - 27.01.2011

Dear Customer
Thank you for purchasing a Blanco Cooktop.
Before we continue telling you about this cooktop, we cordially invite you to become part of the Blanco family by
subscribing to ongoing information and invitations. Please visit our website where you can subscribe and request
such things as invitations to future cooking classes and gourmet recipes. Go to www.blanco-australia.com and fill
in the subscription details.
You will find that the clean lines and modern look of your Blanco Cooktop blends perfectly with your kitchen décor.
It is easy to use and performs to a high standard.
Blanco also makes a range of products that will enhance your kitchen such as ovens, rangehoods, dishwashers,
microwaves, sinks and taps.
There are models to complement your new Blanco Cooktop.
Of course we make every effort to ensure that our products meet all your requirements, and our Customer
Relations department is at your disposal, to answer your questions and to listen to all your suggestions (see back
cover of manual).
Please complete the warranty section of this manual and keep your receipt as proof of purchase. Retain all
documents relating to the purchase of this products.
Blanco is committed to providing increasingly efficient products that are easy to use, respect the environment and
are attractive and reliable.

BLANCO

USE, INSTALLATION AND MAINTENANCE

INSTRUCTIONS FOR BUILT-IN HOT PLATES

2

Natural Propane
1 Ultra rapid gas burner/WOK 17.0 MJ/h 16.2 MJ/h
2 Rapid gas burner 12.0 MJ/h 10.4 MJ/h
3 Semirapid red. gas burner 5.4 MJ/h 4.86 MJ/h
4 Semirapid gas burner 7.1 MJ/h 6.3 MJ/h
5 Auxiliary gas burner 4.1 MJ/h 3.6 MJ/h
7 Cast iron trivet pan support 2F
8 Cast iron trivet pan support central
11 Burner n° 1 control knob
12 Burner n° 5 control knob
13 Burner n° 4 control knob
14 Burner n° 3 control knob
15 Burner n° 2 control knob

Attention: this appliance has been manufactured for domestic use only. Do not modify this
appliance.

DESCRIPTION OF HOBS

USE

FIG. 1 FIG. 2

1) BURNERS

A diagram is screen-printed above each knob on the
front panel. This diagram indicates to which burner
the knob in question corresponds. After having
opened the gas mains or gas bottle tap, light the
burners as described below:

- automatic electrical ignition

Push and turn the knob corresponding to the
required burner in an anticlockwise direction until it
reaches the full on position (large flame fig. 1), then
depress the knob.

- Lighting burners equipped with flame failure

device

The knobs of burners equipped with flame failure
device must be turned in an anticlockwise direction
until they reach the full on position (large flame fig. 1)
and come to a stop. Now depress the knob in
question and re peat the previously indicated
operations.
Keep the knob depressed for about 10 seconds once
the burner has ignited.

Note: you are advised not to try and light a
burner if the flame divider (burner Cap) is not
correctly placed

HOW TO USE THE BURNERS

Bear in mind the following indications in order to
achieve maximum efficiency with the least possible
gas consumption:

- use adequate pans for each burner (consult the

following table and fig. 2).

- When the pan comes to the boil, set the knob to

the reduced rate position (small flame fig. 1).

- Always place a lid on the pans.

- Use only pan with a flat bottom.

WARNINGS:

- burners with flame failure device may only be
ignited when the relative knob has been set to
the Full on position (large flame fig. 1).

- Matches can be used to ignite the burners in a
blackout situation.

- Never leave the appliance unattended when the
burners are being used. Make sure there are no
children in the near vicinity. Particularly make
sure that the pan handles are correctl y
position ed and keep a check on foods
requiring oil and grease to cook since these
products can easily catch fire.

- The machine must not be used by people
(including children) with impaired mental or
physical capacities, or without experience of
using electrical devices, unless supervised or
instructed by an expert adult responsible for
their care and safety. Children should not be
allowed to play with the equipment.

- Never use aerosols in the vicinity of this appliance
while it is in operation.

- Should a crack appear on the surface of the glass,
disconnect the appliance from the electricity
supply immediately.

- Do not place pans with an unstable or deformed
bottom on the burner, as these may tip or spill their
contents, causing accidents.

- Do not store or use flammable liquids or items
in the vicinity of the hotplate.

- Do not use the hob as a work surface.

- This product is not to be installed in marine
crafts, caravans, or mobile homes.

- Containers wider than the unit are not
recommended.

- Avoid scraping the pans on the glass surface,
as the surface may become scratched.

3

Burners

Power ratings

Pan Ø

in cm

Natural Propane

Ultra rapid/WOK 17.0 MJ/h 16.2 MJ/h

24 ÷ 26

Rapid 12.0 MJ/h 10.4 MJ/h

20 ÷ 22

Semirapid red. 5.4 MJ/h 4.86 MJ/h

16 ÷ 18

Semirapid 7.1 MJ/h 6.3 MJ/h

16 ÷ 18

Auxiliary 4.1 MJ/h 3.6 MJ/h

10 ÷ 14

In the event of the Burner flames being accidentally
extinguished, turn off the burner control and do not
attempt to re-ignite the burner for a least 1 minute.

4

USE

Notes:
use of a gas cooking appliance produces heat and moisture in the room in which it is installed.
The room must therefore be well ventilated by keeping natural air vents clear and by activating a
mechanical aeration device (suction hood or electric fan).
Intensive and lengthy use of the appliance may require additional ventilation. This can be
achieved by opening a window or by increasing the power of the mechanical exhausting system if
installed.

Abnormal operations:
any of the following are considered to be anormal operation and may require servicing:

- yellow tipping of the hob burner flame.

- Sooting up of cooking utensils.

- Burners not igniting properly.

- Burners failing to remain alight.

- Burner extinguished by cupboard doors.

- Gas valves which are difficult to turn.

Do not place anything, eg. flame tamer, asbestos
mat , betw een pan and p an sup port a s serious
damage to the appliance my result.

Do not remove the pan support and enclose the
burner with a wok stand as this will concentrate and
deflect heat onto the hotplate.

Do not use large pots or heavy weights which can
bend the pan support or deflect flame onto the
hotplate.

Symbol 1

Symbol 2

Symbol 3

Locate pan centrally over the burner so that it is
stable and does not overhang the appliance.

Use only a wok support supplied or recommended by
the manufacturer of the appliance.

Symbol 4

Symbol 5

5

CLEANING

IMPORTANT:
always disconnect the appliance from the gas
and electricity mains before carrying out any
cleaning operation.

2) HOT PLATE

Periodically wash the hot plate, the enamelled
steel pan support, the enamelled burner caps “C”
and the burn er hea d s “M” (s ee f i g. 3 ) with
lukewarm soapy water. Following this, all parts
should be thoroughly rinsed and dried. Never
wash them while they are still warm and never use
abrasive powders.
Do not allow vinegar, coffee, milk, salted water,
lemon or tomato juice from remaining in contact
with the surfaces for long periods of time.

WARNINGS:
comply with the following instructions, before
remounting the parts:

- check that burner head slots “M” (fig. 3) have
not become clogged by foreign bodies.

- Check that the enamelled burner cap “C” (fig. 3)
has been correctly positioned on the burner head.
It must be steady.

- Do not force the taps if they are difficult to
open or close. Contact an Authorised Service
Centre for repairs.

- Do n’t use stea m jets for cleani ng the
cooktop.

FIG. 3

PREVENTATIVE MAINTENANCE

This cooktop should not require ongoing
maintenance provided you ensure:

- all spillages are cleaned up as soon as they
occur.

- Burner are kept clean.

- Burner ports are free of debris, food or anything
else that may cause an obstruction.

- Electrode and thermocouples are kept clean.

- Burners are re-assembled correctly.

- Do not get water in the area where the injectors
are located.
