Blanco CG705WXFFC Installation and Operating Instructions

MODELS: CG302FFX - CG604WXC - CG604WXFFC

CG604XP - CG604XFFP - CG604WXP

CG604WXFFP - CG705WXC - CG705WXFFC

We ask that you carefully read the instructions within this booklet to enable you to abtain quality results from the outset.

The appliance must be installed only by an authorised person in compliance with the instructions provided. The manufacturer

declines all responsability for improper installation which may harm persons and animals and damage property.

The appliance must be used for the purpose for which it was expressly designed. Any other use (eg heating rooms) is considered to

be improper and consequently dangerous. The manufacturer declines all responsability for damage resulting from improper and

irresponsible use.

The manufacturer shall not be held responsible for any inaccuracies in this handbook due to printing or transcription errors. The

designs in the figures are purely indicative.

The manufacturer also reserves the right to make any modifications to the products as may be considered necessary, useful or in the

interests of the user, without jeopardizing the main functional and safety features on the products themselves.

If your cooktop requires service, please contact your local customer service centre or your nearest Blanco agent listed at the back of

this booklet.

COD. 04037GGB - 16.06.2010

Dear Customer
Thank you for purchasing a Blanco Cooktop.
Before we continue telling you about this cooktop, we cordially invite you to become part of the Blanco family by
subscribing to ongoing information and invitations. Please visit our website where you can subscribe and request
such things as invitations to future cooking classes and gourmet recipes. Go to www.meaappliances.com.au and
fill in the subscription details.
You will find that the clean lines and modern look of your Blanco Cooktop blends perfectly with your kitchen décor.
It is easy to use and performs to a high standard.
Blanco also makes a range of products that will enhance your kitchen such as ovens, rangehoods, dishwashers,
microwaves, sinks and taps.
There are models to complement your new Blanco Cooktop.
Of course we make every effort to ensure that our products meet all your requirements, and our Customer
Relations department is at your disposal, to answer your questions and to listen to all your suggestions (see back
cover of manual).
Please complete the warranty section of this manual and keep your receipt as proof of purchase. Retain all
documents relating to the purchase of this products.
Blanco is committed to providing increasingly efficient products that are easy to use, respect the environment and
are attractive and reliable.

BLANCO

USE, INSTALLATION AND MAINTENANCE

INSTRUCTIONS FOR BUILT-IN HOT PLATES

2

NATURAL PROPANE

1 Ultra rapid gas burner/WOK 14.5 MJ/h 11.4 MJ/h
2 Rapid gas burner 12.0 MJ/h 10.4 MJ/h
3 Semirapid gas burner right front 7.1 MJ/h 6.2 MJ/h
4 Semirapid gas burner left back 7.1 MJ/h 6.2 MJ/h
5 Auxiliary gas burner 4.1 MJ/h 3.5 MJ/h
6 Trivet pan support 2F
7 Trivet pan support 1F
8 Burner n° 1 control knob
9 Burner n° 2 control knob
10 Burner n° 3 control knob
11 Burner n° 4 control knob
12 Burner n° 5 control knob
13 Electric ignition button

Attention: this appliance has been manufactured for domestic use only and it employment by
private. Do not modify this appliance.

DESCRIPTION OF THE HOT PLATES

1) BURNERS

A diagram is screen-printed above each knob on
the front panel. This diagram indicates to which
burner the knob in question corresponds. After
having opened the gas mains or gas bottle tap, light
the burners as described below:

- manual ignition

Push and turn the knob corresponding to the
required burner in an anticlockwise direction until it
reaches the full on position (large flame fig. 1), then
place a lighted match near the burner.

- Electrical ignition

Push and turn the knob corresponding to the
required burner in an anticlockwise direction until it
reaches the full on position (large flame fig. 1), then
depress and release the ignition button.

- Automatic electrical ignition

Push and turn the knob corresponding to the
required burner in an anticlockwise direction until it
reaches the full on position (large flame fig. 1), then
depress the knob.

- Lighting burners equipped with flame failure
device

The knobs of burners equipped with flame failure
device must be turned in an anticlockwise direction
until they reach the full on position (large flame fig. 1)
and come to a stop. Now depress the knob in
question an d repeat the previ ously indicated
operations.
Keep the knob depressed for about 10 seconds
once the burner has ignited.

Note: you are advised not to try and light a
burner if the flame divider (burner Cap) is not
correctly placed

HOW TO USE THE BURNERS

Bear in mind the following indications in order to
achieve maximum efficiency with the least possible
gas consumption:

- use adequate pans for each burner (consult the
following table and fig. 2).

- When the pan comes to the boil, set the knob to
the reduced rate position (small flame fig. 1).

- Always place a lid on the pans.

- Use only pan with a flat bottom.

WARNINGS:

- burners with flame failure device may only be
ignited when the relative knob has been set to
the Full on position (large flame fig. 1).

- Matches can be used to ignite the burners in a
blackout situation.

- Never leave the appliance unattended when the
burners are being used. Make sure there are no
children in the near vicinity. Particularly make
sure that the pan handles are correctl y
position ed and keep a check on fo ods
requiring oil and grease to cook since these
products can easily catch fire.

- The machine must not be used by people
(including children) with impaired mental or
physical capacities, or without experience of
using electrical devices, unless supervised or
instructed by an expert adult responsible for
their care and safety. Children should not be
allowed to play with the equipment.

- Never use aerosols in the vicinity of this appliance
while it is in operation.

- If the built-in hot plate has a lid, any spilt food
should be immediately removed from this
before it is opened. If the appliance has a glass
lid, this could shatter when the hot plate
becomes hot. Always switch off all the burners
before closing the lid.

- Do not store or use flammable liquids or items
in the vicinity of the hotplate.

- THIS PRODUCT IS NOT FOR USE IN MARINE
CRAFT, CARAVANS OR MOBILE HOMES.

- Containers wider than the unit are not
recommended.

3

USE

FIG. 1 FIG. 2

Burners

Power ratings

Pan Ø in cm

NATURAL PROPANE

Ultra rapid/WOK 14.5 MJ/h 11.4 MJ/h

22 ÷ 24

Rapid 12.0 MJ/h 10.4 MJ/h

20 ÷ 22

Semirapid right front 7.1 MJ/h 6.2 MJ/h

16 ÷ 18

Semirapid left back 7.1 MJ/h 6.2 MJ/h

16 ÷ 18

Auxiliary 4.1 MJ/h 3.5 MJ/h

10 ÷ 14

In the event of the Burner flames being accidentally
extinguished, turn off the burner control and do not
attempt to re-ignite the burner for a least 1 minute.

4

USE

FIG. 3 FIG. 4 FIG. 5

(*) Air inlet - minimum section 100 cm

2

Notes:

use of a gas cooking appliance produces heat and moisture in the room in which it is installed. The
room must therefore be well ventilated by keeping the natural air vents clear (fig. 3) and by
activating the mechanical aeration device (suction hood or electric fan fig. 4 and fig. 5).
Intensive and lengthy use of the appliance may require additional ventilation. This can be achieved
by opening a window or by increasing the power of the mechanical exhausting system if installed.

Abnormal Operation:

any of the following are considered to be abnormal operation and may require servicing:

- yellow tipping of the hob burner flame.

- Sooting up of cooking utensils.

- Burners not igniting properly.

- Burners failing to remain alight.

- Burners extinguished by cupboard doors.

- Gas valves which are difficult to turn.

CLEANING

FIG. 6

5

IMPORTANT:
always disconnect the appliance from the gas and electricity mains before carrying out any cleaning
operation.

2) HOT PLATE

Periodically wash the hot plate, the enamelled steel pan support, the enamelled burner caps “C” and the
burner heads “M” (see fig. 6) with lukewarm soapy water. Following this, all parts should be thoroughly
rinsed and dried. Never wash them while they are still warm and never use abrasive powders. Do not allow
vinegar, coffee, milk, salted water, lemon or tomato juice from remaining in contact with the enamelled
surfaces for long periods of time.

WARNINGS:
comply with the following instructions, before remounting the parts:

- check that burner head slots “T” (fig. 6) have not become clogged by foreign bodies.

- Check that enamelled burner cap “C” (fig. 6) have correctly positioned on the burner head. It must
be steady.

- The exact position of the pan support is established by the rounded corners, which should be set
towards the side edge of the hot plate.

- Do not force the taps if they are difficult to open or close. Contact the technical assistance service
for repairs.

- Don’t use steam jets for cleaning the cooktop.

CARE & MAINTENANCE

To optimize the appearance and upkeep of stainless:

1) ALWAYS keep stainless steel out of contact from Acid/Acid based solvent (liquid or vapour form).

2) After installation, wipe clean all stainless steel products with a soft damp cloth to remove any traces of dirt

(e.g. cement dust) or condensation marks.

In the event whereby persistant sparks appear:

immediately clean affected areas with stainless steel cleaner, using a clean damp soft cloth.
Ensure surface is rinsed and thoroughly clean of all marks and cleaning agent.

PREVENTATIVE MAINTENANCE

This cooktop should not require ongoing maintenance provided you ensure:

- all spillages are cleaned up as soon as they occur.

- Burners are kept clean.

- Burner ports are free of debris, food or anything else that may cause an obstruction.

- Electrode and thermocouples are kept clean.

- Burners are re-assembled correctly.

- Do not get water in the area where the injectors are located.

INSTALLATION

6

TECHNICAL INFORMATION

FOR THE INSTALLER

This appliance shall be installed only by authorised
personnel and in accordance with the
manufacturer’s installation instructions, local gas
fitting regulations, municipal codes, electrical wiring
regulations, AS 5601/AG 601- Gas Installation and
any other statutory regulations.
Ventilation must be in accordance with
AS 5601/AG 601- Gas Installation. In general, the
appliance should have adequate ventilation for
complete combustion of gas, proper flueing and to
maintain temperature of immediate surroundings
within safe limits.
The wall and bench surfaces must be capable of
sustaining temperatures of 75 °C.
All laminates, fixing adhesive and surfacing
materials should be certified suitable for this
temperature.

3) INSTALLING THE COOKTOP

Check that the appliance is in a good condition after
having removed the outer packaging and internal
wrappings from around the various loose parts. In case
of doubt, do not use the appliance and contact qualified
personnel.

Never leave the packacing materials (cardboard,
bags, polystyrene foam, nails, etc.) within children’s
reach since they could become potential sources of
danger.

The measurements of the opening made in the top
of the modular cabinet and into which the hot plate
will be installed are indicated in fig. 7.
Always comply with the measurements given for
the hole into which the appliance will be recessed
(see fig. 7).
Any adjoining wall surface situated within 200 mm
fro m the edge of any hob bur ner mus t be a
suitable non-combustible material for a height of
150 mm for the entire length of the hob. Any
combustible construction above the hotplate must
be at least 600 mm above the top of the burner
and no construction shall be within 450 mm above
the top of the burner. A minimum depth of 60 mm
from the top of the work surface must be provided
for this appliance.

COMPLY WITH THE DIMENSIONS

A B C D E

2F (30) 282 482 59 59 100 min.

4F (60) 553 473 63.5 63.5 100 min.

5F (70) 553 473 63.5 63.5 175 min.

FIG. 7

INSTALLATION

7

4) FIXING THE COOKTOP

The hot plate has a special seal which prevents
liquid from infiltrating into the cabinet. Strictly
comply with the following instructions in order to
correctly apply this seal:

- detach the seals from their backing, checking that
the transparent protection still adheres to the seal
itself.

- Overturn the hot plate and correctly position seal
“E” (fig. 8) under the edge of the hot plate itself, so
that the outer side of the seal perfectly matches
the outer perimetral edge of the hot plate. The
ends of the strips must fi t together witho ut
overlapping.

- Evenly and securely fix the seal to the hot plate,
pressing into place with the fingers and remove the
strip of protective paper from the seal and set the
plate into the hole made in the cabinet.

- Fix the hob with the proper brackets “S” and fit the
prominent part into the porthole “H” on the bottom;
turn the screw “F” until the bracket “S” stick on the
top (fig. 9).

- When the appliance is installed so that the base
can be tou che d, we recommen d fit ting a
protecting shield. This shield must be at least

60 mm below the base of the bench top (fig. 7).
Timber or other suitable material may be used
provid ed it is capable of withs tan ding the
appliance temperatures. Ensure that the supply
connection point is accessible with the appliance
installed. To facilitate the shield may need to be
removable.

NOTE: do not fix the cooktop into the bench
with sealant (ie silicon) as this may void the
warranty. Use only the seals provided.

FIG. 8 FIG. 9

INSTALLATION

8

5) GAS CONNECTION

The gas connection is located in the rear and on the
underside of the appliance 118 mm (for EH/60) from
the right hand side.
There are two ways to carry out the connection to
the main gas line:
A. the hotplate can be connected with rigid pipe as
specified in AS5601 table 3.1.
B. The hotplate can be connected with a Flexible
Hose, which complies with AS/ANZ 1869 (AGA
Approved), 10 mm ID, class B or D, no more than

1.2 m long and in accordance with AS5601.
Ensure that the Hose does not contact the hot
surfaces of the hotplate, oven, dishwasher or other
appliance that may be installed underneath or next
to the hotplate. The Hose should not be subjected
to abrasion, kinking or permanent deformation and
should be able to be inspected along its entire
length.
Unions compatible with the hose fittings must be
used and connections tested for gas leaks.
Ensure the supply connection point is accessible
with the appliance installed.
Warni ng: ensure that the hose asse mbly is
restrained from accidental contact with the flue or
flue outlet of an underbench oven.

Natural Gas

Natural Gas installations require the connection of
a gas regulator at the appliance. This regulator is
supplied with the appliance on purchase.
Assemble the regulator (noti ng the gas flo w
direction) and transition pieces (supplied with the
appliance), in accordance with figure 10.
The transition piece on the supply side of the
regulator must be provided by the installer.

Liquified Petroleum Gas

In a Propane installation the gas regulation is
made at the gas cylinder and regulation at the
appliance is not required. To connect supply to the
appliance use transiti on pie ces a s sho wn in
figure 11. These pieces are supplied with the
appliance on purchase.

WARNING:
THE BURNER FLAME MUST BE ADJUSTED BY
THE INSTALLER.
FAULTY INSTA L LATION WILL NO T BE
COVERED UNDER WARRANTY.
THE APPLIANC E IS FACTORY SET FOR
NATURAL GAS. THE TEST POINT PRESSURE
SHOULD BE ADJUSTED TO 1.00kPa WITH THE
WOK BURNER OPERATING AT MAXIMUM.

FIG. 10 FIG. 11

6) ELECTRICAL CONNECTION

The appliance is supplied with a 1800 mm long
flexible supply lead.
The point of attachment for this lead is located at
the rear and on the underside of the appliance
380 mm from the right hand side.
The voltage and power consumption are detailed on
the underside of the appliance. Ensure that the
appliance is correctly rated to the supply.
Connect appliance by way of a switched power
point.

THE APPLIANCE MUST BE EARTHED

Ensure that this power point is properly earthed.
Look a t the conn ectio n w iring d iagra m s
(fig. 12 and 13).

War ning: i n order to avoi d hazar d, any
electrical work performed on this equipment or
its associated wiring, should only be done by
persons authorised by the supplier or similarly
qualified persons.
The socket outlet for this hotplate shall be
installed near the hotplate and shall be easily
accessible.

INSTALLATION

FIG. 12

FIG. 13

9

ADJUSTMENTS

FIG. 14

10

Always disconnect the appliance from the
electricity main before making any adjustments.
All seals must be replaced by the technician at
the end of any adjustments or regulations.
Our burners do not re quire prim ary air
adjustment.
a) Data Label

The Data Label is located on the underside of the
hotplate. A duplicate Data Label is supplied to
adhere in an accessible area next to the hotplate.
This hotplate is suitable for Natural Gas and
Propane Gas; ensure that the available gas supply
matches the Data Label.

b) Before Leaving

Check that there are no gas leaks, but do not use a
naked flame to detect gas leaks. Ignite all burners
to ensure correct operation of gas valves, burners,
ignition and if fitted, flame failure valves. Turn gas
taps to low flame position and observe stability of
the flame. When satisfied with the hotplate, please
instruct the user on the correct method of operation.
In case the appliance falls to operate correctly after
all checks have been carried out, refer to the
authorised service provider in your area.

7) TAPS

Our taps are suitable for all the gas, they are male
conical type at one way.

“Reduced rate” adjustment

- Switch on the burner and turn the relative knob to
the “Reduced rate” position (small flame fig. 1).

- Remove knob “M” (fig. 14) of the tap, which is
simply pressed on to its rod.

- Insert a s mall screwdriver “ D” into hole “C”
(fig. 14) and turn the throttle screw to the right or
left until the burner flame has been adequately
regulated to the “Reduced rate” position.

Check that the flame does not go out when the knob
is s har ply switched from the “Full on” to the
“Reduced rate” position.

It is understood that only burners operating
with Natural gas should be subjected to the
above mentioned adjustments. The screw must
be fully locked when the burners operate with
Liquid gas.

CONVERSIONS

11

8) PROPANE GAS TO NATURAL GAS
CONVERSION PROCEDURE

Appliance models: Gas stainless steel hotplate
models:

CG302FFX 2 Burners
CG604WXC 4 Burners
CG604WXFFC 4 Burners
CG604XP 4 Burners
CG604XFFP 4 Burners
CG604WXP 4 Burners
CG604WXFFP 4 Burners
CG705WXC 5 Burners
CG705WXFFC 5 Burners

1. Remove each burner cap and burner skirt.

2. Remove the Propane Gas main injector with a

7 mm /VF tube spanner and re place with the
appropriate size Natural Gas main injector for
each burner. The following injector sizes are
required for Natural Gas:

Burner Main injector

Wok 1.76 mm
Rapid 1.55 mm
Semi Rapid 1.20 mm
Auxiliary 0.90 mm

3. Shut off gas supply to the appliance.

4. Disconnect gas inlet pipe from the Propane Gas

test point inlet fitting.

5. Remove the Propane Gas test point inlet fitting
from the appliance.

6. Fit the Natural Gas Regulator supplied in the
conversion kit.

7. Connect the gas supply to the Regulator.

8. Check for gas leaks. Do not use a naked flame

to check for gas leaks.

9. Adjust the gas pressure to 1.00 kPa with the
wok burner operating on high flame.

10. Remove the control knob, with a thin shaft
blade screwdriver inserted on the left side of the
gas valve shaft (safety valve models) or down in
the centre of the gas valve shaft (non-safety valve
mode ls), scr ew the by-p ass inje ctor ant i­clockwise. Test the appliance on both high and
low flame for each burner. If the burner fails to
remain alight or the flame is not stable on the
simmer setting, adjust the by-pass screw, until
flame is stable.

11. If not already removed, remove the "Only for
use with Pr opane Gas" label ad hered t o the
bottom panel near the gas connection.

12. Fit the new data label included in the gas
conversion kit.

9) NATURAL GAS TO PROPANE GAS
CONVERSION PROCEDURE

Appliance models: gas stainless steel hotplate
models:

CG302FFX 2 Burners
CG604WXC 4 Burners
CG604WXFFC 4 Burners
CG604XP 4 Burners
CG604XFFP 4 Burners
CG604WXP 4 Burners
CG604WXFFP 4 Burners
CG705WXC 5 Burners
CG705WXFFC 5 Burners

1. Remove each burner cap and burner skirt.

2. Remove the Natural Gas main injector with a

7 mm/VF t ube spanner and replace with the
appropriate size Propane main injector for each
burner. The following injector sizes are required for
Propane Gas:

Burner Main injector

Wok 0.94 mm
Rapid 0.91 mm
Semirapid 0.70 mm
Auxiliary 0.53 mm

3. Remove the control knob, with a thin shaft

blade screwdriver down the centre of each gas
valve shaft, scr ew the b y-pass inject or fully
clockwise.

4. Shut off gas supply to the appliance.

5. Disconnect gas inlet pipe from the Natural Gas

Regulator.

6. Remove the Natural Gas Regulator from the

appliance.

7. Fit the Propane test point inlet fitting supplied in

the conversion kit.

8. Connect the gas supply to the inlet fitting.

9. Check for gas leaks. Do not use a naked flame

to check for gas leaks.

10. Adjust the gas pressure to 2.75 kPa.

11. Test the appliance on both high and low flame

for each burner and check the gas pressure. If the
burner fails to remain alight or the flame is not
stable on the simmer setting, adjust the by-pass
screw until flame is stable.

12. If not already removed, remove the “Only for

use with Natural Gas” label adhered to the bottom
panel near the gas connection.

13. Fit the new data label included in the gas

conversion kit.

CONVERSIONS

12

CONVERSIONS

FIG. 15

BURNER ARRANGEMENT ON THE HOT PLATE

BURNERS

GAS

NORMAL

PRESSURE

(kPa)

INJECTOR

DIAMETER

(1/100 mm)

N O M I N AL

HEAT

INPUT (MJ/h)

MAX.

BY PASS

N°

DESCRIPTION

1/100 mm

1

ULTRA RAPID/WOK

PROPANE

NATURAL

2.75

1.00

94

176

14.5

11.4

85

1/2

2

RAPID

PROPANE
NATURAL

2.75

1.00

91

155

12.0

10.4

45

1/4

3

SEMIRAPID

RIGHT FRONT

PROPANE

NATURAL

2.75

1.00

70

120

6.2

7.1

35

1/4

4

SEMIRAPID
LEFT BACK

PROPANE

NATURAL

2.75

1.00

70

120

6.2

7.1

35

1/4

5

AUXILIARY

PROPANE
NATURAL

2.75

1.00

53
90

4.1

3.5

32

1/4

TABLE

13

10) REPLACING THE INJECTORS

The burners can be adapted to different types of
gas by mounting injectors suited to the type of gas
in question. To do this, first remove the burner tops
using a wrench “B”. Now unscrew injector “A” (see
fig. 15) and fit a injector corresponding to the
utilized type of gas in its place.
It is advisable to strongly tighten the injector in
place.

After the injectors have been replaced, the

burners must be regulated as explained in
paragraphs 7. The technician must reset any
seals on the regulating or pre-regulating devices.
The envelope with the injectors and the labels can
be included in the kit, or at disposal to the
authorized customer Service Centre.

For the sake of convenience, the nominal rate table
also lists the heat inputs of the bur ners, the
diameter of the injectors and the working pressures
of the various types of gas.

14

SERVICING

WARNING:
serv icing sh ould be carried out only by
authorised personnel.

10) COMPONENTS REPLACEMENT

NOTE:
BEFORE ANY MAINTENANCE REQUIR ING
REPL ACEME NT OF A C O MPONE NT IS
UNDE RTAKEN E NSURE T HAT THE
ELECTRICAL LEAD HAS BEEN ISOLATED AND
REMOVED FROM THE POWER POINT.

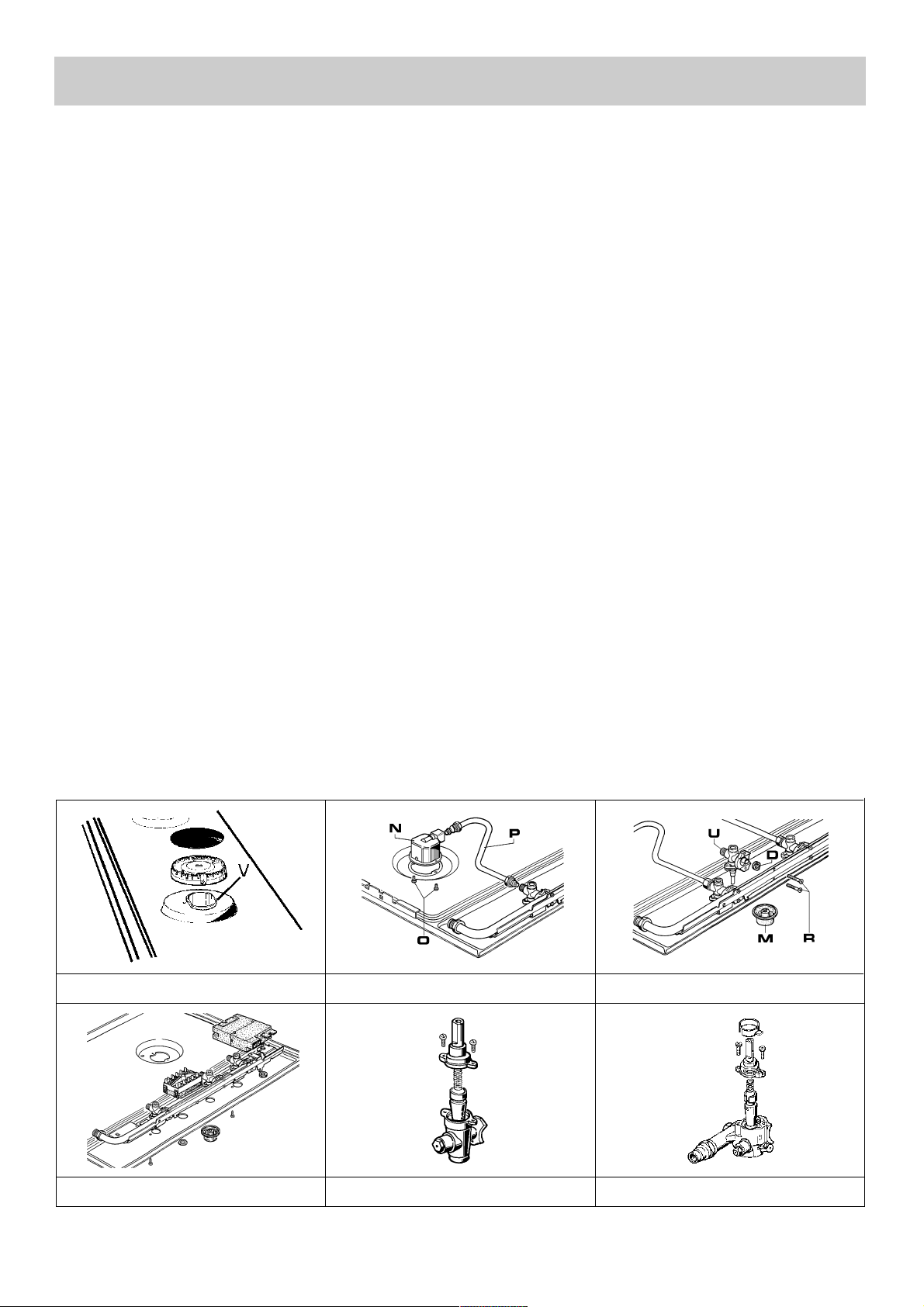

To replace the components fit inside the hob is
necessary to take off the pan supports and the
burners from the upper part of the working table,
then unscrew the burner fixing screws “V” (fig. 16)
and the control knobs, fixed by a simple pressure,
in order to take off the working table.
After having carried out the above listed operations,
the burners (fig. 17), taps (fig. 18) and electrical
components can all be replaced (fig. 19).
It is advisable to change seal “D” each time a tap is
changed in order to ensure a perfect tightness.

Greasing the taps (see fig. 20 - 21)

If a ta p bec ome s sti ff to operate, it must be
immediately greased in compliance with the
following instructions:

- remove the tap.

- Clean the cone and its housing using a cloth
soaked in diluent.

- Lightly spread the cone with the relative grease.

- Fit the cone back in place, operate it several
times and then remove it again. Eliminate any
excess grease and check that the gas ducts
have not become clogged.

- Fit all parts back in place, complying with the
demounting order in reverse.

To facilitate the servicing technician’s task, here is
a chart with the types and sections of the powering
cabl es and the r ating s of the e l ectri cal
components.

FIG. 19

FIG. 20 FIG. 21

FIG. 16 FIG. 17 FIG. 18

SERVICING

FIG. 22

TYPE OF TYPE OF SINGLE - PHASE

HOT PLATE CABLE POWER SUPPLY

CABLE TYPES AND SECTIONS

ATTENTION!!!

If the power supply cable is replaced, the installer should leave the ground wire longer than the phase
conductors (fig. 22) and comply with the recommendations given in paragraph 6.

H05 RR - F Section 3 X 0.75 mm

2

Gas hot plate

15

16

TECHNICAL ASSISTANCE AND SPARE PARTS

BLANCO CUSTOMER SERVICE

1300 739 033

www.meaappliances.com.au

SALES OFFICES AND SHOWROOMS SERVICE AND SPARE PARTS

NEW SOUTH WALES.

QUEENSLAND.

Head Office, Sales and Marketing

Brisbane.
104 Vanessa Street. Endeavour Refrigeration and Appliance Service.
Kingsgrove. Telephone: [phone]
NSW 2208. Facsimile: 07 3137 3663
Telephone: [phone]

www.endeavourservice.com.au

Facsimile: 02 9503 2810
Gold Coast.

Sydney Showroom.

Roshad Appliance Service.
40 Ebley Street. Telephone: [phone]
Bondi Junction. Facsimile: 07 5535 7407
NSW 2022
Telephone: [phone] . Sunshine Coast.
Facsimile: 02 9386 1671 Paul Matters Electrical.
Telephone: [phone]

QUEENSLAND

Facsimile: 07 5449 9045

Brisbane Showroom.

148 Robinson Road East. NEW SOUTH WALES.
Geebung.
QLD 4034. All General Whitegoods.
Telephone: [phone] Telephone: [phone]
Facsimile: 07 3265 6933. Facsimile: 02 9752 5294

www.agw.com.au

VICTORIA.
AUSTRALIAN CAPATIAL TERRITORY
Melbourne Showroom.

35 Centre Road. Detlevs Appliance & Electrical Care
Scoresby. Telephone: [phone]
VIC 3179 Facsimile: 02 6260 1035
Telephone: [phone]
Facsimile: 03 8756 7907 VICTORIA.

South Australia Showroom (By Appointment only)

SC Lighting & Electrical Supplies Advantage Appliance Service
47 North Terrace Telephone: [phone]
Hackney Facsimile: 03 9874 6917
SA 5069
Telephone: [phone] SOUTH AUSTRALIA
Facsimile: 08 8362 4591
Prestige Appliance

Western Australia Sales Office

Telephone: [phone]

2A/1 King Edward Road, Facsimile; 08 8352 2044
Osborne Park,

www.prestigerepairs.com.au

WA 6017
Telephone: [phone]
Facsimile: 08 9204 1219 WESTERN AUSTRALIA

*SHOWROOMS ARE OPEN 6 DAYS A WEEK

. Metropolitan Appliance Service
Telephone: [phone]
Facsimile: 08 9317 1296

17

WARRANTY SECTION

1.Sub ject to the “Statem ent o f Stan dard Warrant y
Conditions” this product is covered by the following
Warranty.

TWO (2) YEARS WARRANTY from date of purchase,

covering all parts and labour.

2. The appliance is warranted under normal single family
domestic installation and use, as set out in the instruction
manual, against manufacturing defects for the Warranty
periods shown above.

3. Should service be required under this Warranty, the
purchaser should contact an approved BLANCO Service
Provider during their normal business hours.

4. At no time does BLANCO/MEA have liability for any
freight or transportation costs or for any damage during
transit or for any consequence of failure of this appliance
outside of the normal service area, unless such limitation
of liability is prohibited by statute.

5. This Warranty excludes replacement of parts required
due to normal wear and tear including light globe

s.

6. This Warranty only applies, provided the appliance has
been used in accordance with the ma nu fa ct ur er ’s
instructions and provided an accident, misuse, neglect or
abuse has not damaged the appliance.

7. None of the above Warranties purport to exclude, restrict
or modify either the application or the exercise of a right
conferred by any applicable Statute.

8. Please complete the details below, which should be
retained for future reference along with your proof of
purchase:

Date of Purchase: .......................

Model No: ......................

Serial No: ......................

Notice to Victorian Customers from the Victorian Plumbing Industry

Commission.

This product must be installed by a licenced person as required by the

Victorian Building Act 1993.

Only a licenced person will give you a Compliance Certificate, showing that the

work complies with all the relevant standards. Only a licenced person will have

insurance protecting their workmanship for 6 years. Make sure you use a

licenced person to install this product and ask for your Compliance Certificate.

1. The Warranty only applies provided that the appliance
has been used in accordance with the manufacturer’s
instructions and provided that the appliance has not been
damaged by an accident, misuse, neglect or abuse of
any p erson other than t he manufact urer o r
BLANCO/Major Electrical Appliances (“MEA”) or from
faulty installation , mis-adjust ment or tampering by
unauthorised persons.

2. When a service inspection reveals the alleged fault or
faults are caused by incorrect operation, contrary to the
instruction manual, and otherwise the appliance is in
good order and working condition, the purchaser shall be
liable for a service fee charged by BLANCO/MEA or one
of its’ Service Providers.

3. If the appliance is used in Commercial Applications or for
Rental purposes, a separate warranty of Twelve (12)
months covering all parts with Three (3) months on the
labour will apply.

4. Subject to the provisions of any applicable statute this
Warranty applies to the original retail purchaser only and
is not transferable.

5. Subject to the provisions of any applicable statute, at no
ti me does BLANC O/ MEA have l ia bility for fr eight,
transport or travel costs outside normal service areas.

6. None of the above Warranties purport to exclude, restrict

or modify either the application or the exercise of a right
conferred by any applicable statute.

7. Subject to any Warranties implied by statute, at no time
will BLANCO/MEA or its’ Service Providers be liable for
any economic loss consequent upon the failure of the
appliance.

8. This Warranty is only valid for major appliances imported
and distributed by BLANCO/MEA, purchased and used in
Australia.

MEA0304

BLANCO COOKING PRODUCT WARRANTY STATEMENT OF STANDARD

WARRANTY CONDITIONS

18

20
