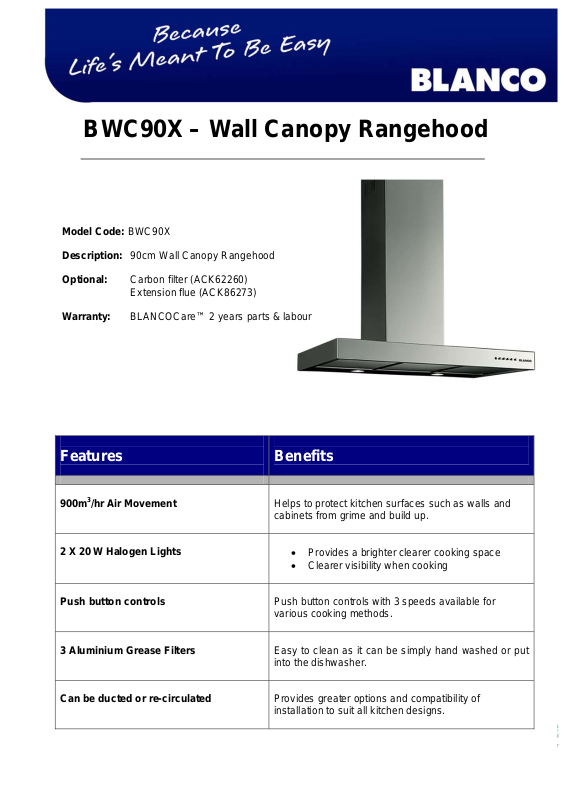

Blanco BWC90X User Manual

BWC90X – Wall Canopy Rangehood

Model Code: BWC90X Description: 90cm Wall Canopy Rangehood Optional: Carbon filter (ACK62260)

Extension flue (ACK86273)

Warranty: BLANCOCare™ 2 years parts & labour

Features

900m

2 X 20 W Halogen Lights

Push button controls

3 Aluminium Grease Filters

Can be ducted or re-circulated

/hr Air Movement

Benefits

Helps to protect kitchen surfaces such as walls and cabinets from grime and build up.

• Provides a brighter clearer cooking space

• Clearer visibility when cooking

Push button controls with 3 speeds available for various cooking methods.

Easy to clean as it can be simply hand washed or put into the dishwasher.

Provides greater options and compatibility of installation to suit all kitchen designs.

Specifications

BWC90X

90cm Wall Canopy Rangehood

Method of installation: Stainless Steel Overall Dimensions: 900W x 480D x 75H (mm) Flue Cover: Minimum: 690 mm

Power Requirement: 240 V – 10 Amps

Airflow: 900m Ducting: Top only or recirculating

Duct Spigot: 120 or 150 mm Minimum Height

above cooktop: 600 mm

Maximum: 1155 mm

/hr

(carbon filters recommended for recirculated installation)
