Blanco BCCT60N, BCCT60X Instructions

Instructions for the Use and Care and Installation of

BCCT60N
BCCT60X
BCCT75N
BCCT75X

Electrical Touch Control Ceran Cooktop.

Dear Customer

You will find that the clean lines and modern look of your Blanco cooktop blends
in perfectly with your kitchen décor. It is easy to use and performs to a high
standard.

Blanco also makes a range of products that will enhance your kitchen – such as
ovens, rangehoods, dishwashers, microwaves, sinks and taps. There are models
to complement your new Blanco cooktop. Blanco now has a range of laundry
products to choose from.

Of course, we make every effort to ensure that our products meet all your
requirements, and our Customer Relations Department is at your disposal, to
answer all your questions and to listen to all your suggestions.

Please complete the warranty section of this manual and keep your receipt as
proof of purchase. Retain all documents relating to the purchase of Blanco
product.

Blanco is committed to providing increasingly efficient products that are easy to
use, respect the environment and are attractive and reliable.

BLANCO

- 3 -

GENERAL

Carefully read the contents of this leaflet since it provides important instructions regarding safety of installation, use
and maintenance. Keep the leaflet for possible future consultation. All the operations relating to installation (electrical
connections) must be carried out by specialised personnel in conformity with the regulations in force.

SAFETY WARNINGS

If the surface is cracked, switch off the appliance to avoid the possibility of an electric shock.
The appliance is not intended for use by young children or infirm persons without supervision.
Young children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified

person in order to avoid a hazard.

Do not use a steam cleaner to clean this appliance.

IMPORTANT

- Avoid spilling liquid, therefore to boil or heat liquids, reduce the heat.

- Do not leave the heating elements on with empty pots and pans or without receptacles.

- When you have finished cooking, switch off the relevant heating element with the control indicated below.

INSTALLATION INSTRUCTIONS

These instructions address specialised installers and serve as a guide for installation, adjustment and maintenance
in conformity with the laws and regulations in force.

Because of the electronics used in the control of the cooktop it is necessary to observe some precautions in regards
to the temperature rise at the bottom right hand corner of the cooktop if another appliance such as an oven is
installed below the cooktop. The temperature at this point should not exceed 600 degrees C. Failure to acknowledge
this may result in malfunction of the touch control. If a temperature rise is encountered it will be necessary to
insulate between the oven and the cooktop.

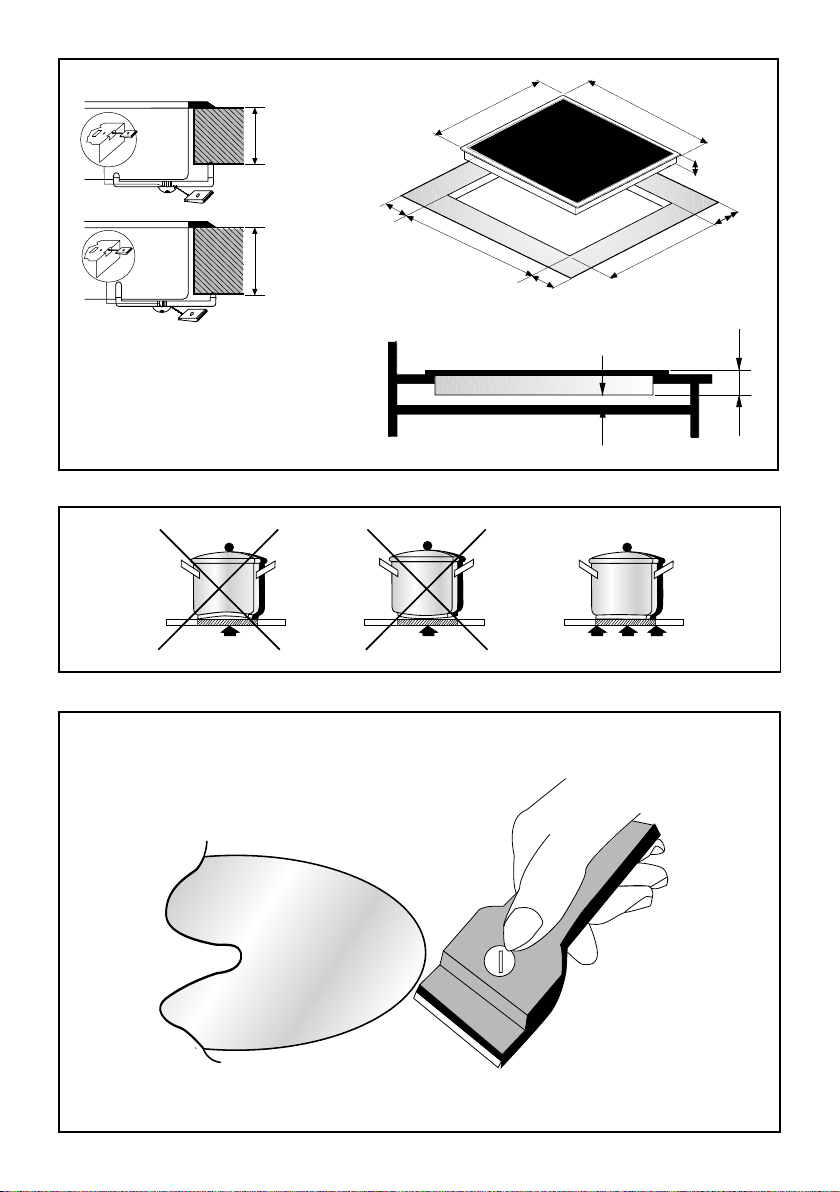

POSITIONING (Fig.1)
The domestic appliance is designed to be built into a worktop as illustrated in the specific figure. Apply the sealing
strip provided with the appliance around the entire perimeter (cut-out dimensions Fig.1B).
Fix the domestic appliance on the worktop by means of the 4 brackets provided, taking the thickness of the worktop
into account (Fig.1A). If the lower part of the appliance, after installation, is accessible via the lower part of the
cabinet then it is necessary to mount a separator panel respecting the distances indicated (Fig.1C). If the appliance
is installed with an oven underneath then the separator is not necessary.

ELECTRICAL CONNECTIONS

Before making the electrical connections, check that:

- the ground cable is 2 cm longer than the other cables;

- the system ratings meet the ratings indicated on the identification plate fixed on the lower part of the worktop;

- the system is fitted with efficient earthing compliant to the laws and regulations in force.
Earthing is obligatory by law.
If the domestic appliance is not fitted with a cable and/or relevant plug, use material suited to the absorption value
indicated on the identification plate and the operating temperature. At no point must the cable reach a temperature
50°C higher than room temperature.
If wishing to make a direct connection to the mains, an omnipolar switch must be interposed with a minimum
opening of 3 mm between the contacts and suited to the load indicated on the plate and conform to the regulations
in force (the yellow/green ground conductor must not be interrupted by the switch). When the appliance has been
installed, the omnipolar switch must be easily reachable.

USE AND MAINTENANCE

MAINTENANCE

Remove any residues of food and drops of grease from the cooking surface using the special scraper supplied on
request (Fig.3) Clean the heated area as thoroughly as possible using CERAFIX or similar products and a cloth/
paper, then rinse with water and dry with a clean cloth.
Using the special scraper (optional) immediately remove any fragments of aluminium and plastic material that have
unintentionally melted on the heated cooking area or residues of sugar or food with a high sugar content (Fig.3). In
this way, any damage to the cooktop surface is prevented.

- 4 -
