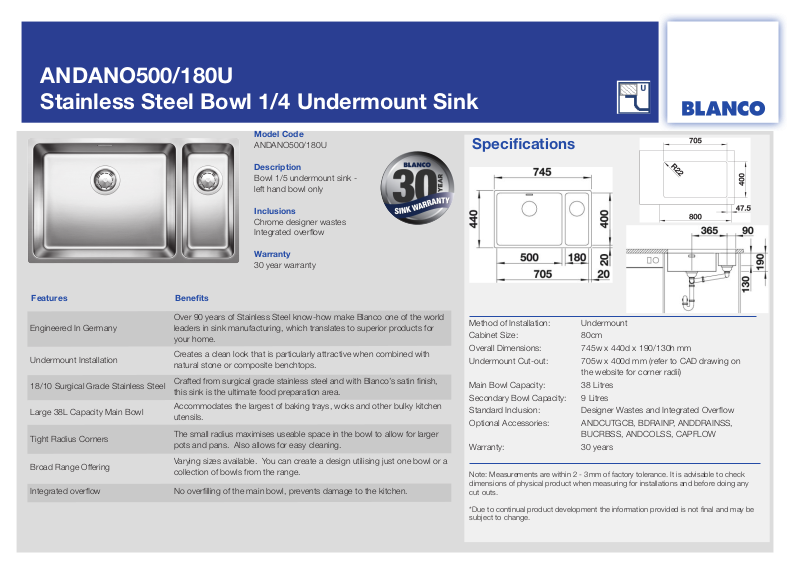

Blanco AND500/180UK5 Specifications Sheet

ANDANO500/180U
Stainless Steel Bowl 1/4 Undermount Sink

Model Code

ANDANO500/180U

Description

Bowl 1/5 undermount sink ­left hand bowl only

Inclusions

Chrome designer wastes
Integrated overflow

Warranty

30 year warranty

Features Benefits

Specifications

Over 90 years of Stainless Steel know-how make Blanco one of the world

Engineered In Germany

Undermount Installation

18/10 Surgical Grade Stainless Steel

Large 38L Capacity Main Bowl

Tight Radius Corners

Broad Range Offering

Integrated overflow No overfilling of the main bowl, prevents damage to the kitchen.

leaders in sink manufacturing, which translates to superior products for
your home.

Creates a clean look that is particularly attractive when combined with
natural stone or composite benchtops.

Crafted from surgical grade stainless steel and with Blanco’s satin finish,
this sink is the ultimate food preparation area.

Accommodates the largest of baking trays, woks and other bulky kitchen
utensils.

The small radius maximises useable space in the bowl to allow for larger
pots and pans. Also allows for easy cleaning.

Varying sizes available. You can create a design utilising just one bowl or a
collection of bowls from the range.

Method of Installation: Undermount

Cabinet Size: 80cm

Overall Dimensions: 745w x 440d x 190/130h mm

Undermount Cut-out: 705w x 400d mm (refer to CAD drawing on
the website for corner radii)

Main Bowl Capacity: 38 Litres

Secondary Bowl Capacity: 9 Litres

Standard Inclusion: Designer Wastes and Integrated Overflow

Optional Accessories: ANDCUTGCB, BDRAINP, ANDDRAINSS,
BUCRBSS, ANDCOLSS, CAPFLOW

Warranty: 30 years

Note: Measurements are within 2 - 3mm of factory tolerance. It is advisable to check
dimensions of physical product when measuring for installations and before doing any
cut outs.

*Due to continual product development the information provided is not final and may be
subject to change.
