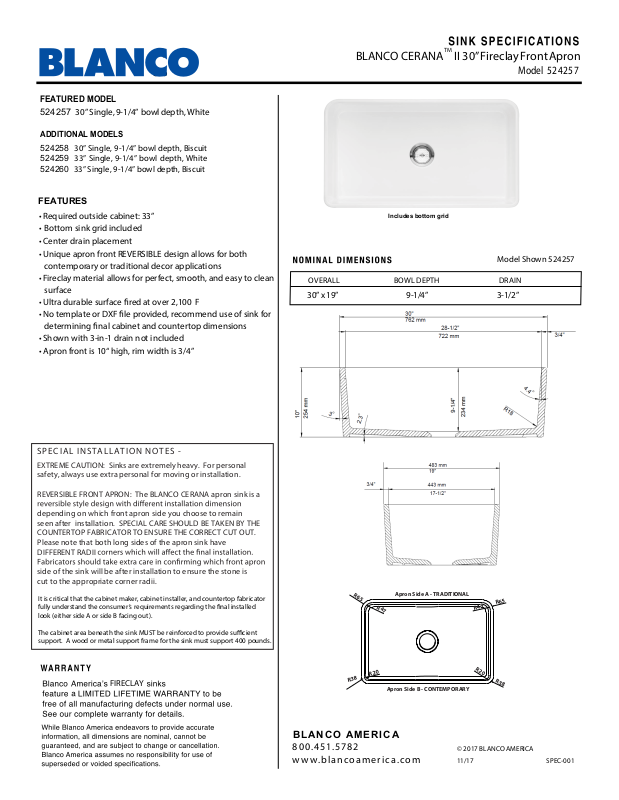

Page 1
FEATURED MODEL
524257 30” Single, 9-1/4” bowl depth, White
BLANCO CERANATM II 30” Fireclay Front
Model 524257
Apron
ADDITIONAL MODELS
524258 30” Single, 9-1/4” bowl depth, Biscuit
524259 33” Single, 9-1/4” bowl depth, White
524260 33” Single, 9-1/4” bowl depth, Biscuit
FEATURES
•
Required outside cabinet: 33”
•
Bottom sink grid included
Center drain placement
•
• Unique apron front REVERSIBLE design allows for both
contemporary or traditional decor applications
• Fireclay material allows for perfect, smooth, and easy to clean
O
surface
• Ultra durable surface red at over 2,100 F
• No template or DXF le provided, recommend use of sink for
determining nal cabinet and countertop dimensions
• Shown with 3-in-1 drain not included
• Apron front is 10“ high, rim width is 3/4”
Includes bottom grid
Model Shown 524257
OVERALL
BOWL DEPTH
DRAIN
30” x 19” 9-1/4” 3-1/2”
SPECI AL INSTALLATI ON NOTES -
EXTREME CAUTION: Sinks are extremely heavy. For personal
safety, always use extra personal for moving or installation.
REVERSIBLE FRONT APRON: The BLANCO CERANA apron sink is a
depending on which front apron side you choose to remain
seen after installation. SPECIAL CARE SHOULD BE TAKEN BY THE
COUNTERTOP FABRICATOR TO ENSURE THE CORRECT CUT OUT.
Please note that both long sides of the apron sink have
DIFFERENT RADII
side of the sink will be after installation to ensure the stone is
cut to the appropriate corner radii.
It is critical that the cabinet maker, cabinet installer, and countertop fabricator
fully understand the consumer’s requirements regarding the nal installed
look (either side A or side B facing out).
The cabinet area beneath the sink MUST be reinforced to provide sucient
support. A wood or metal support frame for the sink must support 400 pounds.
FIRECLAY
R65
R38
Apron Side A - TRADITIONAL
R47
R20
Apron Side B - CONTEMPORARY
B L A N CO AMER I C A
8 0 0 . 451. 578 2
w w w. b l a n c o america.com
R65
R47
R20
R38
© 2017 BLANCO AMERICA
11/17
SPEC-001
