Blanco 523039PR1AP User Manual
FEATURED MODEL
523026 36” Single, 9-1/4” bowl depth, White
ADDITIONAL MODELS
523027 36” Single, 9-1/4” bowl depth, Biscuit
FEATURES
Required outside cabinet: 39"
•
•
Cutting Board included
Features functional accessory ledge
•
• Center drain placement
• Fireclay material allows for perfect, smooth, and easy to clean
O
surface
• Ultra durable surface red at over 2,100 F
• No template or DXF le provided, recommend use of sink for
determining nal cabinet and countertop dimensions
• Shown with 3-in-1 drain not included
• Apron front is 10“ high, rim width is 3/4”
OPTIONAL ACCESSORIES
Stainless Steel Sink Grid:
2246910
Stainless Steel Dish Rack: 234699
3-in-1 Basket Strainer:
441231

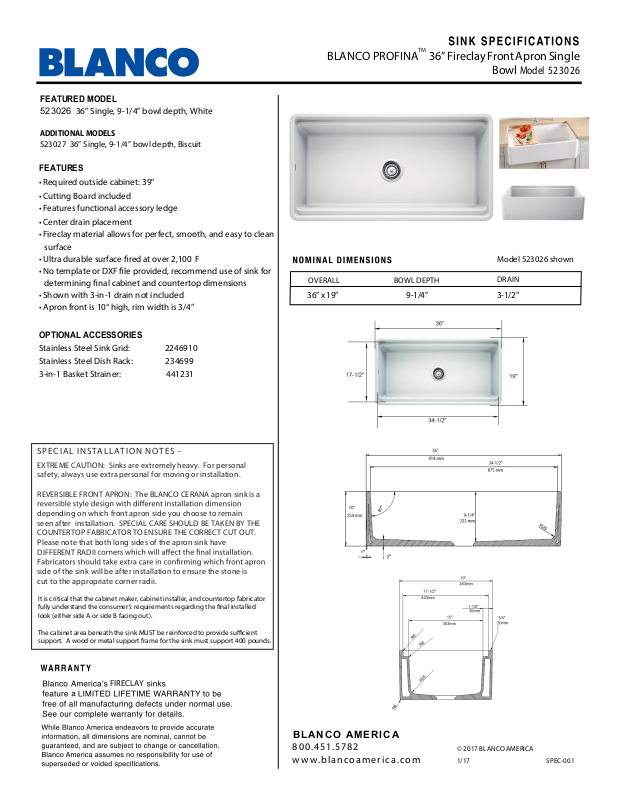

BLANCO PROFINATM 36” Fireclay Front Apron Single
Bowl
Model 523026
Model 523026 shown
OVERALL
36” x 19”
BOWL DEPTH
9-1/4” 3-1/2”
DRAIN
SPECI AL INSTALLATI ON NOTES -
EXTREME CAUTION: Sinks are extremely heavy. For personal
safety, always use extra personal for moving or installation.
REVERSIBLE FRONT APRON: The BLANCO CERANA apron sink is a
depending on which front apron side you choose to remain
seen after installation. SPECIAL CARE SHOULD BE TAKEN BY THE
COUNTERTOP FABRICATOR TO ENSURE THE CORRECT CUT OUT.
Please note that both long sides of the apron sink have
DIFFERENT RADII
side of the sink will be after installation to ensure the stone is
cut to the appropriate corner radii.
It is critical that the cabinet maker, cabinet installer, and countertop fabricator
fully understand the consumer’s requirements regarding the nal installed
look (either side A or side B facing out).
The cabinet area beneath the sink MUST be reinforced to provide sucient
support. A wood or metal support frame for the sink must support 400 pounds.
FIRECLAY
B L A N CO AMER I C A
8 0 0 . 451. 578 2
w w w. b l a n c o america.com
© 2017 BLANCO AMERICA
1/17
SPEC-001
