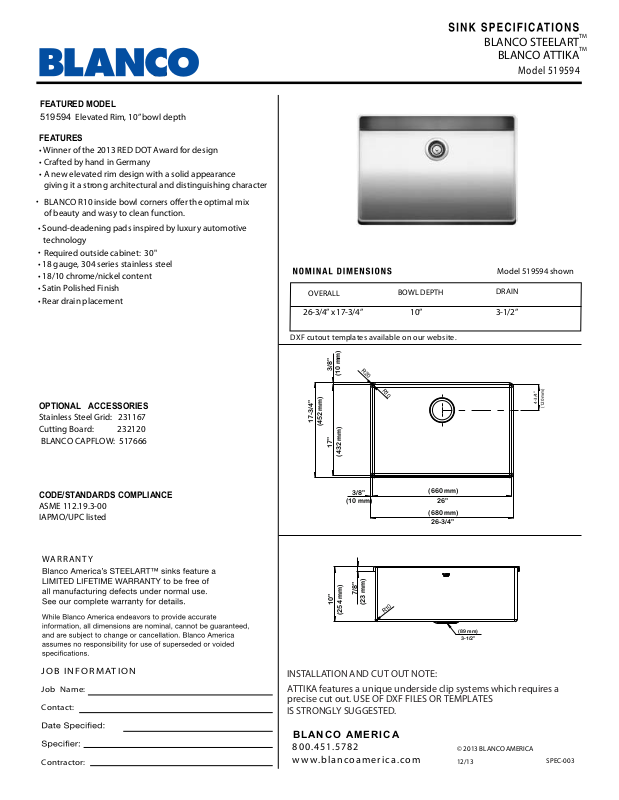

Blanco 519594 User Manual
FEATURED MODEL
519594 Elevated Rim, 10” bowl depth
FEATURES
• Winner of the 2013 RED DOT Award for design
• Crafted by hand in Germany
• A new elevated rim design with a solid appearance
giving it a strong architectural and distinguishing character
•
BLANCO R10 inside bowl corners oer the optimal mix
of beauty and wasy to clean function.
• Sound-deadening pads inspired by luxury automotive
technology
•
Required outside cabinet: 30"
• 18 gauge, 304 series stainless steel
• 18/10 chrome/nickel content
• Satin Polished Finish
• Rear drain placement
BLANCO STEELART
BLANCO ATTIKA
Model 519594 shown
OVERALL
26-3/4” x 17-3/4” 10” 3-1/2”
BOWL DEPTH
TM
TM
Mo de l 519594
DRAIN
OPTIONAL ACCESSORIES
Stainless Steel Grid: 231167
Cutting Board: 232120
BLANCO CAPFLOW: 517666
CODE/STANDARDS COMPLIANCE
ASME 112.19.3-00
IAPMO/UPC listed
WA RR ANT Y
DXF cutout templates available on our website.
3/8”
R
20
(10 mm)
R
10
17-3/4”
(452 mm)
17”
(432 mm)
(660 mm)
26”
(680 mm)
26-3/4”
10”
(254 mm)
3/8”
(10 mm)
7/8”
(23 mm)
R10
(89 mm)
3-1/2”
4-3/4”
(120 mm)
J O B I NF OR MA T I O N
Job Name:
Contact:
Contractor:
INSTALLATION AND CUT OUT NOTE:
ATTIKA features a unique underside clip systems which requires a
precise cut out. USE OF DXF FILES OR TEMPLATES
IS STRONGLY SUGGESTED.
B L A N CO AMER I C A
8 0 0 . 451. 578 2
w w w. b l a n c o america.com
© 2013 BLANCO AMERICA
12/13
SPEC-003
