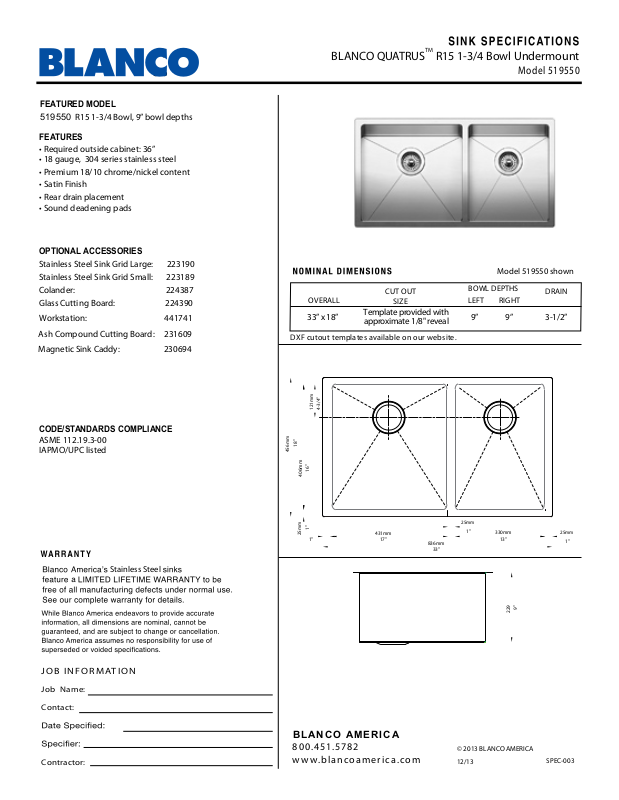

Blanco 519550 User Manual

FEATURED MODEL

519550 R15 1-3/4 Bowl, 9” bowl depths

FEATURES

• Required outside cabinet: 36”

• 18 gauge, 304 series stainless steel

• Premium 18/10 chrome/nickel content

• Satin Finish

• Rear drain placement

• Sound deadening pads

OPTIONAL ACCESSORIES

Stainless Steel Sink Grid Large: 223190

Stainless Steel Sink Grid Small: 223189

Colander: 224387

Glass Cutting Board: 224390

Workstation: 441741

Ash Compound Cutting Board: 231609

Magnetic Sink Caddy: 230694

BLANCO QUATRUSTM R15 1-3/4 Bowl Undermount

BOWL DEPTHS

9”

OVERALL LEFT RIGHT

33” x 18”

approximate 1/8" reveal

Template provided with

SIZE

DXF cutout templates available on our website.

CUT OUT

Model 519550

Model 519550 shown

DRAIN

9” 3-1/2”

CODE/STANDARDS COMPLIANCE

ASME 112.19.3-00
IAPMO/UPC listed

Stainless Steel

J O B I NF OR MA T I O N

Job Name:

18"

456mm

406mm

25mm

1"

121mm

16"

1"

4-3/4”

431mm

17"

836mm

33"

25mm

1"

330mm

13"

229

25mm

1"

9"

Contact:

Contractor:

B L A N CO AMER I C A

8 0 0 . 451. 578 2
w w w. b l a n c o america.com

© 2013 BLANCO AMERICA

12/13

SPEC-003
