FEATURED MODEL
519549 R15 Equal Double, 9” bowl depths
FEATURES
• Required outside cabinet: 36”
• 18 gauge, 304 series stainless steel
• Premium 18/10 chrome/nickel content
• Satin Finish
• Rear drain placement
• Sound deadening pads
OPTIONAL ACCESSORIES
Stainless Steel Sink Grid: 224403
Colander: 224387
Glass Cutting Board: 224390
Workstation: 441741
Ash Compound Cutting Board: 231609
Magnetic Sink Caddy: 230694
CODE/STANDARDS COMPLIANCE
ASME 112.19.3-00
IAPMO/UPC listed

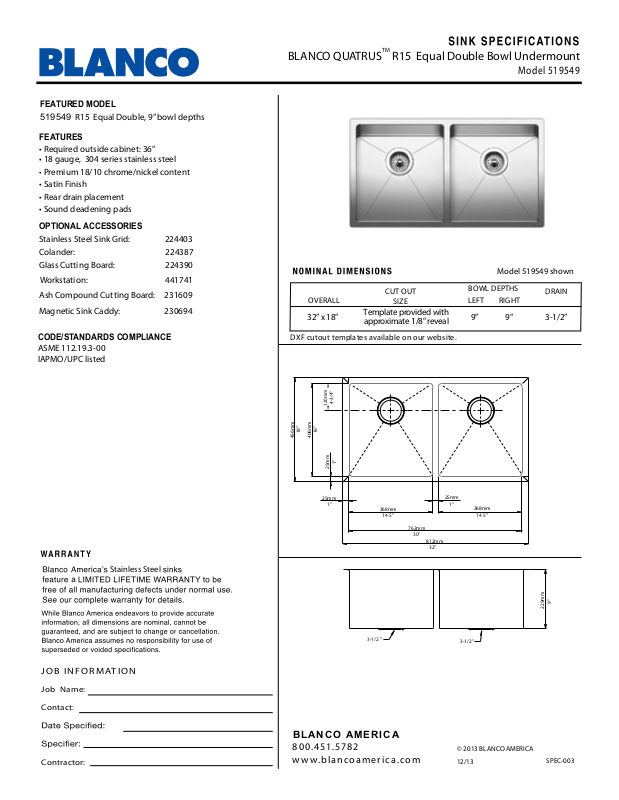

BLANCO QUATRUSTM R15 Equal Double Bowl Undermount
Model 519549
Model 519549 shown
OVERALL LEFT RIGHT
32” x 18”
approximate 1/8" reveal
Temp
SIZE
late provided with
DXF cutout templates available on our website.
CUT OUT
BOWL DEPTHS
9”
9” 3-1/2”
DRAIN
Stainless Steel
J O B I NF OR MA T I O N
Job Name:
18"
456mm
16"
406mm
120mm
25mm
1"
4-3/4”
25mm
1"
25mm
1"
3-1/2 "
368mm
14.5"
762mm
30"
812mm
32"
3-1/2
368mm
14.5"
"
9"
229mm
Contact:
Contractor:
B L A N CO AMER I C A
8 0 0 . 451. 578 2
w w w. b l a n c o america.com
© 2013 BLANCO AMERICA
12/13
SPEC-003
