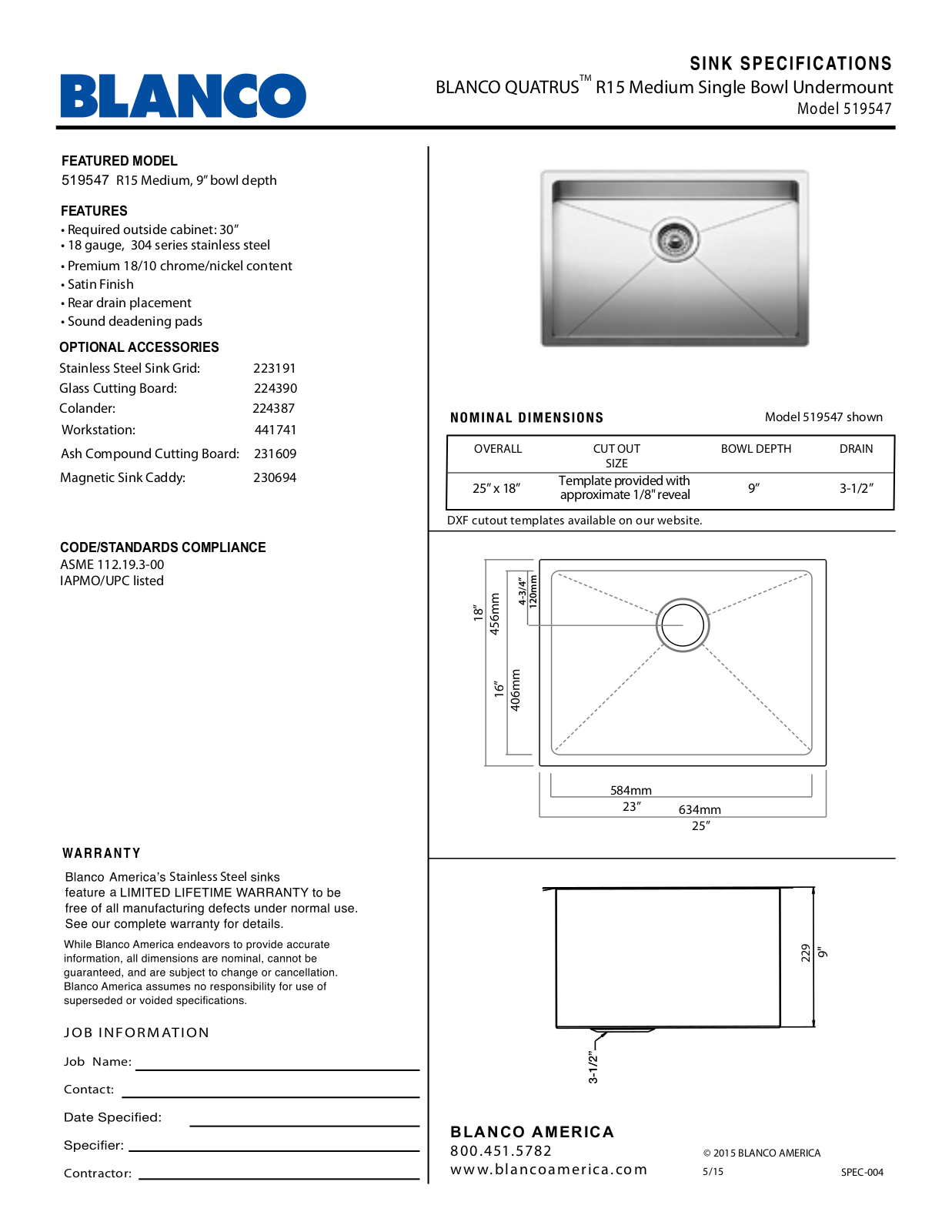

Blanco 519547 User Manual

FEATURED MODEL

519547 R15 Medium, 9” bowl depth

FEATURES

Required outside cabinet: 30

•

”

• 18 gauge, 304 series stainless steel

• Premium 18/10 chrome/nickel content

• Satin Finish

• Rear drain placement

• Sound deadening pads

OPTIONAL ACCESSORIES

Stainless Steel Sink Grid: 223191

Glass Cutting Board: 224390

Colander: 224387

Workstation: 441741

Ash Compound Cutting Board: 231609

Magnetic Sink Caddy: 230694

BLANCO QUATRUSTM R15 Medium Single Bowl Undermount

Model 519547

Model 519547 shown

CUT OUT

SIZE

25” x 18”

approximate 1/8" reveal

DXF cutout templates available on our website.

Template provided with

BOWL DEPTH DRAINOVERALL

9” 3-1/2”

CODE/STANDARDS COMPLIANCE

ASME 112.19.3-00
IAPMO/UPC listed

Stainless Steel

18”

4-3/4”

456mm

16”

406mm

120mm

584mm

23”

634mm

25”

229

9"

J O B I NF OR MA T I O N

Job Name:

Contact:

Contractor:

B L A N CO AMER I C A

8 0 0 . 451. 578 2
w w w. b l a n c o america.com

© 2015 BLANCO AMERICA

5/15

SPEC-004
