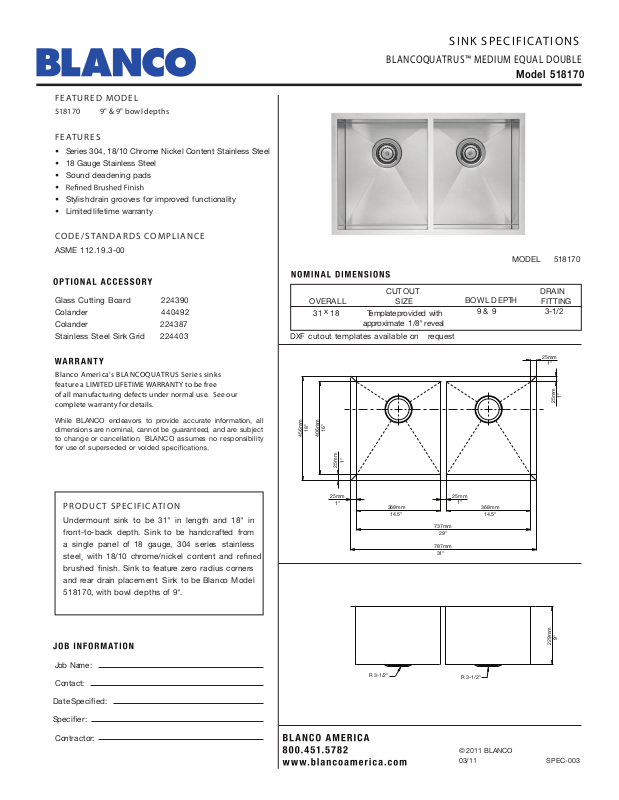

Blanco 518170 Specifications
F E ATURED MO DE L
518170 9" & 9" bowl depths
F E ATURES
• Series 304, 18/10 Chrome Nickel Content Stainless Steel
• 18 Gauge Stainless Steel
• Sound deadening pads
•
• Stylish drain grooves for improved functionality
• Limited lifetime warranty
CODE / STA NDARDS C O M P LIA N CE
ASME 112.19.3-00
S I NK S PEC I F I C ATIONS
BLANCOQUATRUS™ MEDIUM EQUAL DOUBLE
Model 518170
MODEL
518170
CUT OUT
Glass Cutting Board 224390
Colander 440492
Colander 224387
Stainless SteelSink Grid 224403
OVERALL SIZE FITTING
31x18 Template provided with
approximate 1/8" reveal
DXF cutout templates availabl e on request
BO WL D EPTH
9 & 9 3-1/2
DRAIN
25mm
1"
Blanco America’s BLANCOQUATRUS Series sinks
feature a LIMITED LIFETIME WARRANTY to be free
of all manufacturing defects under normal use. See our
complete warranty for details.
While BLANCO endeavors to provide accurate information, all
dimensions are nominal, cannot be guaranteed, and are subject
to change or cancellation. BLANCO assumes no responsibilit y
for use of superseded or voided
PRODUCT S PE CIF ICA T I O N
Undermount sink to be 31" in length and 18" in
front-to-back depth. Sink to be handcrafted from
a single pane l of 18 gauge, 304 series stainless
steel,with 18/10 chrome/nickel content and
18"
456mm
16"
406mm
25mm
25mm
1"
1"
25mm
1"
368mm
14.5"
737mm
29"
787mm
31"
368mm
14.5"
1"
25mm
brushed Sink to feature zero radius corners
and rear drain placement. Sink to be Blanco Model
518170, with bowl depths of 9".
Job Name:
Contact:
Date Specified:
Specifier:
Contractor:
R 3-1/2"
9"
229mm
R 3-1/2"
© 2011 BLANCO
03/11 SPEC-003
