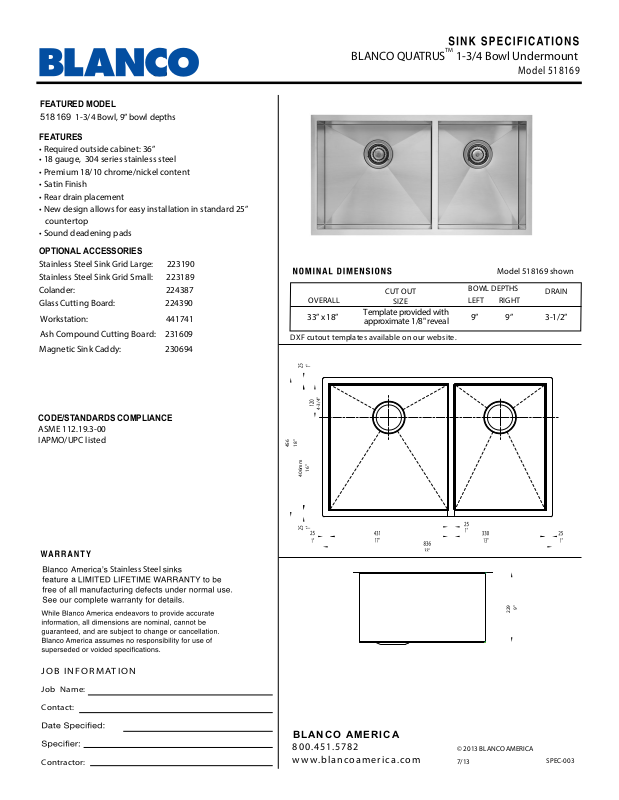

Blanco 518169 User Manual

FEATURED MODEL

518169 1-3/4 Bowl, 9” bowl depths

FEATURES

• Required outside cabinet: 36”

• 18 gauge, 304 series stainless steel

• Premium 18/10 chrome/nickel content

• Satin Finish

• Rear drain placement

• New design allows for easy installation in standard 25”

countertop

• Sound deadening pads

OPTIONAL ACCESSORIES

Stainless Steel Sink Grid Large: 223190

Stainless Steel Sink Grid Small: 223189

Colander: 224387

Glass Cutting Board: 224390

Workstation: 441741

Ash Compound Cutting Board: 231609

Magnetic Sink Caddy: 230694

BLANCO QUATRUSTM 1-3/4 Bowl Undermount

OVERALL LEFT RIGHT

33” x 18”

approximate 1/8" reveal

DXF cutout templates available on our website.

CUT OUT

SIZE

Template p

rovided with

BOWL DEPTHS

9”

Model 518169

Model 518169 shown

DRAIN

9” 3-1/2”

CODE/STANDARDS COMPLIANCE

ASME 112.19.3-00

IAPMO/UPC listed

Stainless Steel

J O B INF OR MA TION

Job N ame:

456

18"

16"

406mm

4-3/4”

229

9"

Contact:

Contractor:

B L A N CO AMER I C A

8 0 0 . 451. 578 2
w w w. b l a n c o america.com

© 2013 BLANCO AMERICA

7/13

SPEC-003
