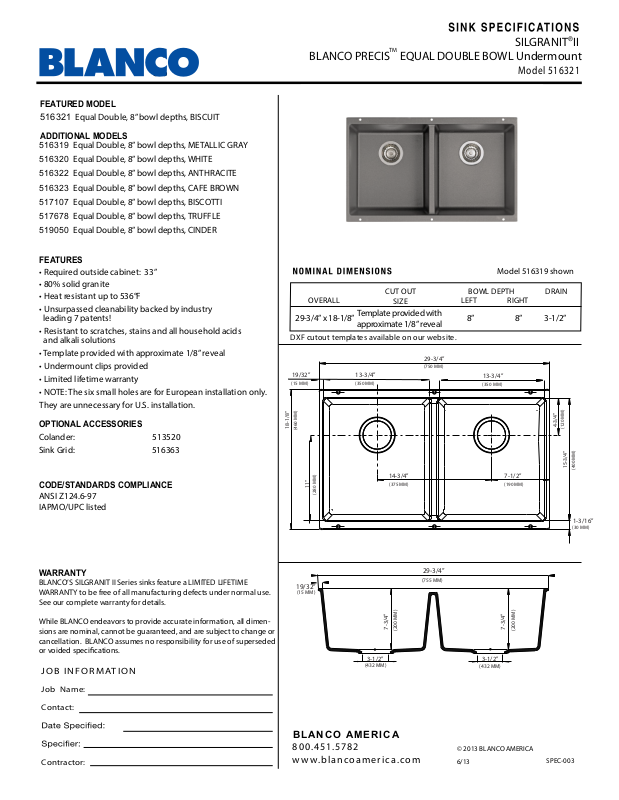

Blanco 516321 User Manual
FEATURED MODEL
516321 Equal Double, 8” bowl depths, BISCUIT
ADDITIONAL MODELS
516319 Equal Double, 8” bowl depths, METALLIC GRAY
516320 Equal Double, 8” bowl depths, WHITE
516322 Equal Double, 8” bowl depths, ANTHRACITE
516323 Equal Double, 8” bowl depths, CAFE BROWN
517107 Equal Double, 8” bowl depths, BISCOTTI
517678 Equal Double, 8” bowl depths, TRUFFLE
519050 Equal Double, 8” bowl depths, CINDER
FEATURES
• Required outside cabinet: 33”
• 80% solid granite
• Heat resistant up to 536°F
• Unsurpassed cleanability backed by industry
leading 7 patents!
• Resistant to scratches, stains and all household acids
and alkali solutions
• Template provided with approximate 1/8” reveal
• Undermount clips provided
• Limited lifetime warranty
• NOTE: The six small holes are for European installation only.
They are unnecessary for U.S. installation.
BLANCO PRECIS
TM
EQUAL DOUBLE BOWL Undermount
CUT OUT
OVERALL
29-3/4” x 18-1/8”
Template provided with
approximate 1/8” reveal
SIZE
DXF cutout templates available on our website.
29-3/4”
19/32”
(15 MM)
13-3/4”
(350 MM)
(750 MM)
SILGRANIT II
Model 516321
Model 516319 shown
BOWL DEPTH
LEFT RIGHT
8” 8”
13-3/4”
(350 MM)
DRAIN
3-1/2”
OPTIONAL ACCESSORIES
Colander: 513520
Sink Grid: 516363
CODE/STANDARDS COMPLIANCE
ANSI Z124.6-97
IAPMO/UPC listed
WARRANTY
BLANCO’S SILGRANIT II Series sinks feature a LIMITED LIFETIME
WARRANTY to be free of all manufacturing defects under normal use.
See our complete warranty for details.
While BLANCO endeavors to provide accurate information, all dimensions are nominal, cannot be guaranteed, and are subject to change or
cancellation. BLANCO assumes no responsibility for use of superseded
or voided specications.
J O B INF OR MA TION
Job N ame:
Contact:
18-1/8”
(460 MM)
19/32”
(15 MM)
11”
(280 MM)
3-1/2”
(432 MM)
14-3/4”
(375 MM)
7-3/4”
(200 MM)
29-3/4
(755 MM)
4-3/4”
(120 MM)
15-3/4”
7-1/2”
(190 MM)
”
7-3/4”
(200 MM)
3-1/2”
(432 MM)
(400 MM)
1-3/16”
(30 MM)
Contractor:
B L A N CO AMER I C A
8 0 0 . 451. 578 2
w w w. b l a n c o america.com
© 2013 BLANCO AMERICA
6/13
SPEC-003
