BLANCO

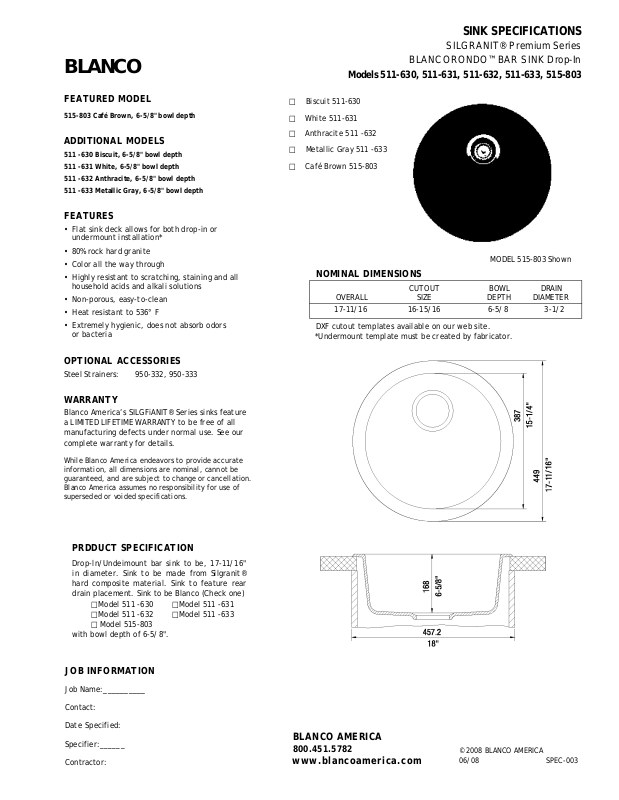

SINK SPECIFICATIONS
SILGRANIT® Premium Series
BLANCORONDO™ BAR SINK Drop-In
Models 511-630, 511-631, 511-632, 511-633, 515-803
FEATURED MODEL
515-803 Café Brown, 6-5/8" bowl depth
ADDITIONAL MODELS
511 -630 Biscuit, 6-5/8" bowl depth
511 -631 White, 6-5/8" bowl depth
511 -632 Anthracite, 6-5/8" bowl depth
511 -633 Metallic Gray, 6-5/8" bowl depth
FEATURES
• Flat sink deck allows for both drop-in or
undermount installation*
• 80% rock hard granite
• Color all the way through
• Highly resistant to scratching, staining and all
household acids and alkali solutions
• Non-porous, easy-to-clean
• Heat resistant to 536° F
• Extremely hygienic, does not absorb odors
or bacteria
OPTIONAL ACCESSORIES
Steel Strainers: 950-332, 950-333
□ Biscuit 511-630
□ White 511-631
□ Anthracite 511 -632
□ Metallic Gray 511 -633
□ Café Brown 515-803
NOMINAL DIMENSIONS
CUTOUT BOWL DRAIN
OVERALL SIZE DEPTH DIAMETER
17-11/16 16-15/16 6-5/8
DXF cutout templates available on our web site.
*Undermount template must be created by fabricator.
MODEL 515-803 Shown
3-1/2
WARRANTY
Blanco America’s SILGFiANIT® Series sinks feature
a LIMITED LIFETIME WARRANTY to be free of all
manufacturing defects under normal use. See our
complete warranty for details.
While Blanco America endeavors to provide accurate
information, all dimensions are nominal, cannot be
guaranteed, and are subject to change or cancellation.
Blanco America assumes no responsibility for use of
superseded or voided specifications.
PRDDUCT SPECIFICATION
Drop-ln/Undeimount bar sink to be, 17-11/16"
in diameter. Sink to be made from Silgranit®
hard composite material. Sink to feature rear
drain placement. Sink to be Blanco (Check one)
□ Model 511 -630 □ Model 511 -631
□ Model 511 -632 □ Model 511 -633
□ Model 515-803
with bowl depth of 6-5/8".
JOB INFORMATION
Job Name:
__________
Contact:
Date Specified:
Specifier:
Contractor:
______
BLANCO AMERICA
800.451.5782
www.blancoamerica.com
© 2008 BLANCO AMERICA
06/08 SPEC-003
