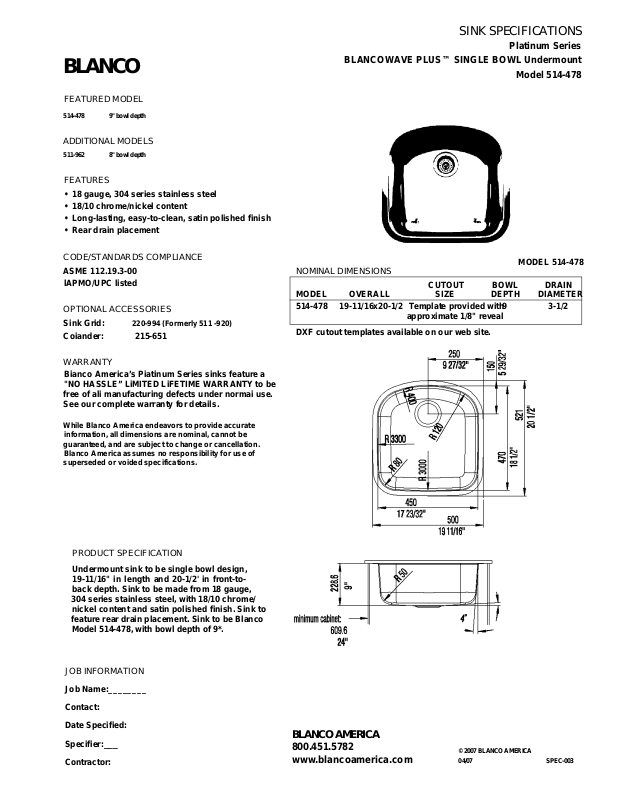

Blanco 514-478 User Manual

BLANCO

FEATURED MODEL

514-478 9" bowl depth

ADDITIONAL MODELS

511-962 8" bowl depth

FEATURES

• 18 gauge, 304 series stainless steel

• 18/10 chrome/nickel content

• Long-lasting, easy-to-clean, satin polished finish

• Rear drain placement

SINK SPECIFICATIONS

Platinum Series

BLANCOWAVE PLUS™ SINGLE BOWL Undermount

Model 514-478

CODE/STANDARDS COMPLIANCE

ASME 112.19.3-00

lAPMO/UPC listed

OPTIONAL ACCESSORIES

Sink Grid: 220-994 (Formerly 511 -920) Coiander: 215-651

WARRANTY

Bianco America’s Piatinum Series sinks feature a "NO HASSLE” LiMITED LiFETIME WARRANTY to be

free of ali manufacturing defects under normai use. See our complete warranty for details.

While Blanco America endeavors to provide accurate

information, all dimensions are nominal, cannot be

guaranteed, and are subject to change or cancellation.

Blanco America assumes no responsibility for use of

superseded or voided specifications.

NOMINAL DIMENSIONS

MODEL OVERALL SIZE DEPTH DIAMETER 514-478

DXF cutout templates available on our web site.

19-11/16x20-1/2

CUTOUT BOWL DRAIN

Template provided with

approximate 1/8" reveal

MODEL 514-478

3-1/2

PRODUCT SPECIFICATION

Undermount sink to be single bowl design, 19-11/16" in length and 20-1/2' in front-toback depth. Sink to be made from 18 gauge, 304 series stainless steel, with 18/10 chrome/ nickel content and satin polished finish. Sink to feature rear drain placement. Sink to be Blanco Model 514-478, with bowl depth of 9*.

JOB INFORMATION

Job Name: Contact: Date Specified: Specifier: Contractor:

________

___

BLANCO AMERICA

800.451.5782 www.blancoamerica.com
