BLANCO

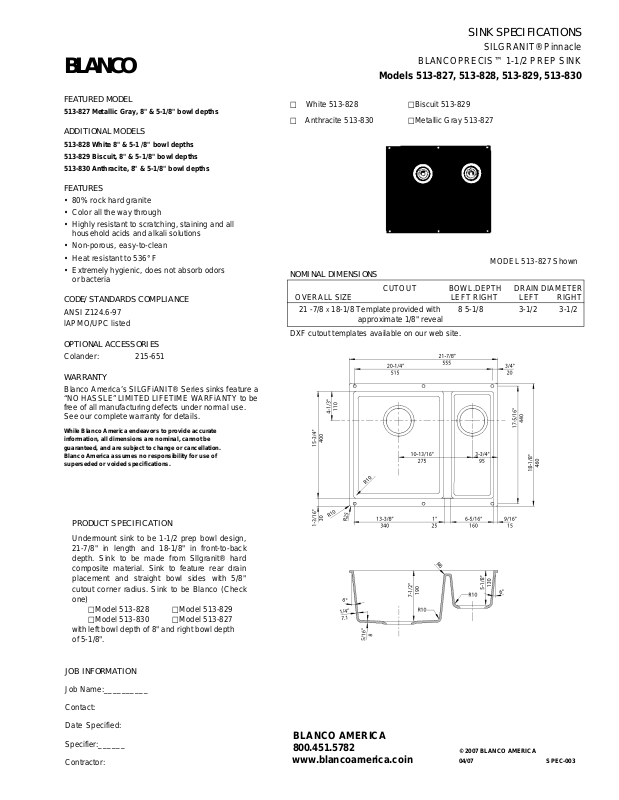

SINK SPECIFICATIONS

SILGRANIT® Pinnacle

BLANCOPRECIS™ 1-1/2 PREP SINK

Models 513-827, 513-828, 513-829, 513-830

FEATURED MODEL

513-827 Metallic Gray, 8" & 5-1/8" bowl depths

ADDITIONAL MODELS

513-828 White 8" & 5-1 /8" bowl depths
513-829 Biscuit, 8" & 5-1/8" bowl depths
513-830 Anthracite, 8" & 5-1/8" bowl depths

FEATURES

• 80% rock hard granite

• Color all the way through

• Highly resistant to scratching, staining and all
household acids and alkali solutions

• Non-porous, easy-to-clean

• Heat resistant to 536° F

• Extremely hygienic, does not absorb odors
or bacteria

CODE/STANDARDS COMPLIANCE

ANSI Z124.6-97

lAPMO/UPC listed

OPTIONAL ACCESSORIES

Colander: 215-651

WARRANTY

Blanco America’s SILGFiANIT® Series sinks feature a
“NO HASSLE” LIMITED LIFETIME WARFiANTY to be
free of all manufacturing defects under normal use.
See our complete warranty for details.

While Blanco America endeavors to provide accurate
information, all dimensions are nominal, cannot be
guaranteed, and are subject to change or cancellation.
Blanco America assumes no responsibility for use of
superseded or voided specifications.

□ White 513-828 □ Biscuit 513-829
□ Anthracite 513-830 □ Metallic Gray 513-827

MODEL 513-827 Shown

NOMINAL DIMENSIONS

OVERALL SIZE LEFT RIGHT LEFT RIGHT

21 -7/8 X 18-1/8 Template provided with

DXF cutout templates available on our web site.

CUTOUT BOWL.DEPTH DRAIN DIAMETER

8 5-1/8 3-1/2 3-1/2

approximate 1/8" reveal

PRODUCT SPECIFICATION

Undermount sink to be 1-1/2 prep bowl design,
21-7/8" in length and 18-1/8" in front-to-back
depth. Sink to be made from Sllgranit® hard
composite material. Sink to feature rear drain
placement and straight bowl sides with 5/8"
cutout corner radius. Sink to be Blanco (Check
one)

□ Model 513-828 □ Model 513-829

□ Model 513-830 □ Model 513-827
with left bowl depth of 8" and right bowl depth
of 5-1/8".

JOB INFORMATION

Job Name:

Contact:
Date Specified:

Specifier:

Contractor:

__________

______

BLANCO AMERICA

800.451.5782
www.blancoamerica.coin

© 2007 BLANCO AMERICA
04/07 SPEC-003
