Blanco 513-829 User Manual

BLANCO

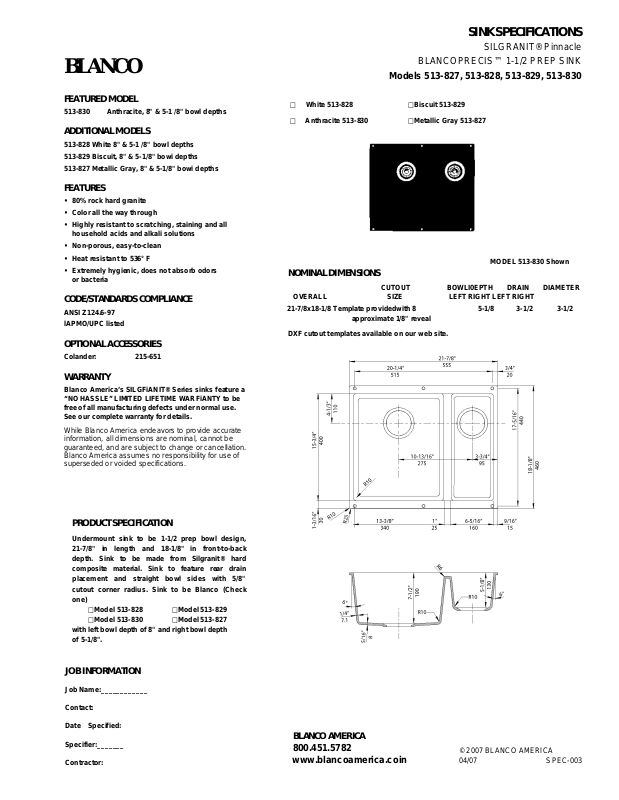

SINK SPECIFICATIONS

SILGRANIT® Pinnacle

BLANCOPRECIS™ 1-1/2 PREP SINK

Models 513-827, 513-828, 513-829, 513-830

FEATURED MODEL

513-830 Anthracite, 8" & 5-1 /8" bowl depths

ADDITIONAL MODELS

513-828 White 8" & 5-1 /8" bowl depths 513-829 Biscuit, 8" & 5-1/8" bowi depths 513-827 Metallic Gray, 8" & 5-1/8" bowi depths

FEATURES

• 80% rock hard granite

• Color all the way through

• Highly resistant to scratching, staining and all

household acids and alkali solutions

• Non-porous, easy-to-clean

• Heat resistant to 536° F

• Extremely hygienic, does not absorb odors

or bacteria

CODE/STANDARDS COMPLIANCE

ANSI Z124.6-97

lAPMO/UPC listed

OPTIONAL ACCESSORIES

Colander: 215-651

WARRANTY

Blanco America’s SILGFiANIT® Series sinks feature a “NO HASSLE” LIMITED LIFETIME WARFiANTY to be free of all manufacturing defects under normal use. See our complete warranty for details.

While Blanco America endeavors to provide accurate information, all dimensions are nominal, cannot be guaranteed, and are subject to change or cancellation. Blanco America assumes no responsibility for use of superseded or voided specifications.

□ White 513-828 □ Biscuit 513-829 □ Anthracite 513-830 □ Metallic Gray 513-827

MODEL 513-830 Shown

NOMINAL DIMENSIONS

OVERALL

21-7/8x18-1/8 Template providedwith 8 5-1/8 3-1/2 3-1/2

DXF cutout templates available on our web site.

CUTOUT

SIZE

approximate 1/8" reveal

BOWLI0EPTH DRAIN DIAMETER

LEFT RIGHT LEFT RIGHT

PRODUCT SPECIFICATION

Undermount sink to be 1-1/2 prep bowl design, 21-7/8" in length and 18-1/8" in front-to-back depth. Sink to be made from Silgranit® hard composite material. Sink to feature rear drain placement and straight bowl sides with 5/8" cutout corner radius. Sink to be Blanco (Check one)

□ Model 513-828 □ Model 513-829 □ Model 513-830 □ Model 513-827

with left bowl depth of 8" and right bowl depth of 5-1/8".

JOB INFORMATION

Job Name:

Contact:

Date Specified:

Specifier:

Contractor:

____________

_______

BLANCO AMERICA

800.451.5782

www.blancoamerica.coin
