FEATURED MODEL

513-695 10" and 10" bowl depths

ADDITIONAL MODELS

513-689 Double Bowl without Drainboard

FEATURES

• 18 gauge, 304 series stainless steel

• 18/10 chrome/nickel content

• Handcrafted from a single panel of stainless steel

• 10mm radius corners

• Elegant and functional drain grooves

• Long-lasting, easy-to-clean, satin polish finish

• Sound-deadening insulation

• Rear drain placement

CODE/STANDARDS COMPLIANCE

ASME 112.19.3-00

IAPMO/UPC listed

OPTIONAL ACCESSORIES

Sink Grids: 221-015, 221-024

Colanders: 218-772, 215-651

Cutting Board: 218-620

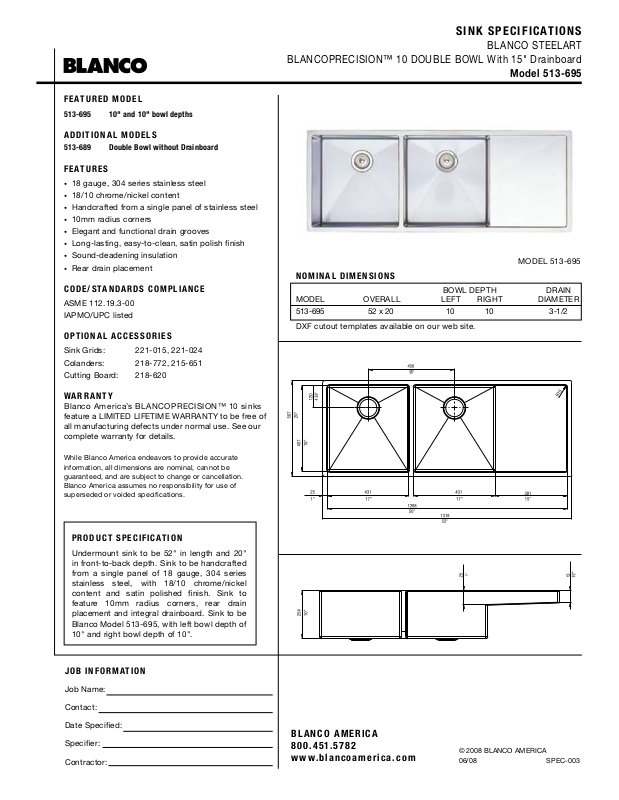

SINK SPECIFICATIONS

BLANCO STEELART

BLANCOPRECISION™ 10 DOUBLE BOWL With 15" Drainboard

Model 513-695

MODEL 513-695

NOMINAL DIMENSIONS

BOWL DEPTH DRAIN
MODEL OVERALL LEFT RIGHT DIAMETER

513-695 52 x 20 10 10 3-1/2

DXF cutout templates available on our web site.

WARRANTY

Blanco America’s BLANCOPRECISION™ 10 sinks
feature a LIMITED LIFETIME WARRANTY to be free of
all manufacturing defects under normal use. See our
complete warranty for details.

While Blanco America endeavors to provide accurate
information, all dimensions are nominal, cannot be
guaranteed, and are subject to change or cancellation.
Blanco America assumes no responsibility for use of
superseded or voided specifications.

PRODUCT SPECIFICATION

Undermount sink to be 52" in length and 20"
in front-to-back depth. Sink to be handcrafted
from a single panel of 18 gauge, 304 series
stainless steel, with 18/10 chrome/nickel
content and satin polished finish. Sink to
feature 10mm radius corners, rear drain
placement and integral drainboard. Sink to be
Blanco Model 513-695, with left bowl depth of
10" and right bowl depth of 10".

JOB INFORMATION

Job Name:

Contact:

Date Specified:

Specifier:

Contractor:

BLANCO AMERICA

800.451.5782
www.blancoamerica.com

© 2008 BLANCO AMERICA
06/08 SPEC-003
