Blanco 513-692 User Manual

FEATURED MODEL

513-692 10" bowl depth

ADDITIONAL MODELS

515-823 Super Single 16" Bowl without Drainboard

513-686 Super Single Bowl without Drainboard

513-691 Large Bowl with Drainboard

513-685 Large Bowl without Drainboard

FEATURES

• 18 gauge, 304 series stainless steel

• 18/10 chrome/nickel content

• Handcrafted from a single panel of stainless steel

• 10mm radius corners

• Elegant and functional drain grooves

• Long-lasting, easy-to-clean, satin polish finish

• Sound-deadening insulation

• Rear drain placement

CODE/STANDARDS COMPLIANCE

ASME 112.19.3-00

IAPMO/UPC listed

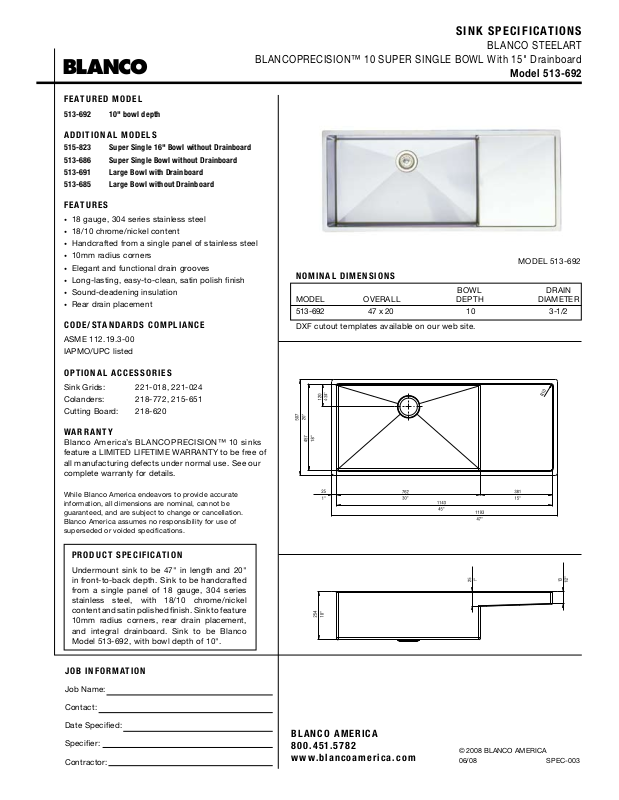

SINK SPECIFICATIONS

BLANCO STEELART

BLANCOPRECISION™ 10 SUPER SINGLE BOWL With 15" Drainboard

Model 513-692

MODEL 513-692

NOMINAL DIMENSIONS

BOWL DRAIN
MODEL OVERALL DEPTH DIAMETER

513-692 47 x 20 10 3-1/2

DXF cutout templates available on our web site.

OPTIONAL ACCESSORIES

Sink Grids: 221-018, 221-024

Colanders: 218-772, 215-651

Cutting Board: 218-620

WARRANTY

Blanco America’s BLANCOPRECISION™ 10 sinks
feature a LIMITED LIFETIME WARRANTY to be free of
all manufacturing defects under normal use. See our
complete warranty for details.

While Blanco America endeavors to provide accurate
information, all dimensions are nominal, cannot be
guaranteed, and are subject to change or cancellation.
Blanco America assumes no responsibility for use of
superseded or voided specifications.

PRODUCT SPECIFICATION

Undermount sink to be 47" in length and 20"
in front-to-back depth. Sink to be handcrafted
from a single panel of 18 gauge, 304 series
stainless steel, with 18/10 chrome/nickel
content and satin polished finish. Sink to feature
10mm radius corners, rear drain placement,
and integral drainboard. Sink to be Blanco
Model 513-692, with bowl depth of 10".

JOB INFORMATION

Job Name:

Contact:

Date Specified:

Specifier:

Contractor:

BLANCO AMERICA

800.451.5782
www.blancoamerica.com

© 2008 BLANCO AMERICA
06/08 SPEC-003
