BLANCO

FEATURED MODEL

513-690 1 0", 8" and 10" bowl depths

FEATURES

• 18 gauge, 304 series stainless steel

• 18/10 chrome/nickel content

• Handcrafted from a single panel of stainless steel

• 10mm radius corners

• Elegant and functional drain grooves

• Long-lasting, easy-to-clean, satin polished finish

• Sound-deadening insulation

• Rear drain placement

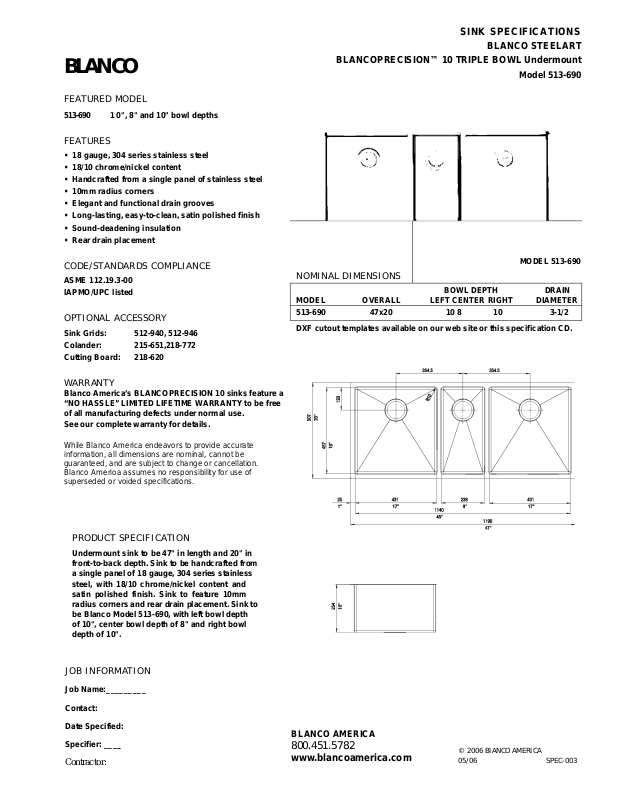

SINK SPECIFICATIONS

BLANCO STEELART

BLANCOPRECISION™ 10 TRIPLE BOWL Undermount

Model 513-690

CODE/STANDARDS COMPLIANCE

ASME 112.19.3-00

lAPMO/UPC listed

OPTIONAL ACCESSORY

Sink Grids: 512-940, 512-946
Colander: 215-651,218-772
Cutting Board: 218-620

WARRANTY

Blanco America’s BLANCOPRECISION 10 sinks feature a
“NO HASSLE” LIMITED LIFETIME WARRANTY to be free
of all manufacturing defects under normal use.
See our complete warranty for details.

While Blanco America endeavors to provide accurate
information, all dimensions are nominal, cannot be
guaranteed, and are subject to change or cancellation.
Blanco Amerioa assumes no responsibility for use of
superseded or voided specifications.

PRODUCT SPECIFICATION

Undermount sink to be 47" in length and 20" in
front-to-back depth. Sink to be handcrafted from
a single panel of 18 gauge, 304 series stainless
steel, with 18/10 chrome/nickel content and
satin polished finish. Sink to feature 10mm
radius corners and rear drain placement. Sink to
be Blanco Model 513-690, with left bowl depth
of 10", center bowl depth of 8" and right bowl
depth of 10".

MODEL 513-690

NOMINAL DIMENSIONS

MODEL OVERALL
513-690 47x20 10 8 10 3-1/2

DXF cutout templates available on our web site or this specification CD.

BOWL DEPTH

LEFT CENTER RIGHT

DRAIN

DIAMETER

JOB INFORMATION

Job Name:
Contact:

Date Specified:

Specifier:

_________

____

Contractor:

BLANCO AMERICA

800.451.5782

www.blancoamerica.com

© 2006 BIANCO AMERICA
05/06 SPEC-003
