BLANCO

FEATURED MODEL

513-689 1 0" and 10" bowl depths

ADDITIONAL MODELS

513-695 Double Bowl with Drainboard

FEATURES

18 gauge, 304 series stainless steel
18/10 chrome/nickel content
Handcrafted from a single panel of stainless steel
10mm radius corners
Elegant and functional drain grooves
Long-lasting, easy-to-clean, satin polished finish
Sound-deadening Insulation
Rear drain placement

CODE/STANDARDS COMPLIANCE

ASME 112.19.3-00

lAPMO/UPC listed

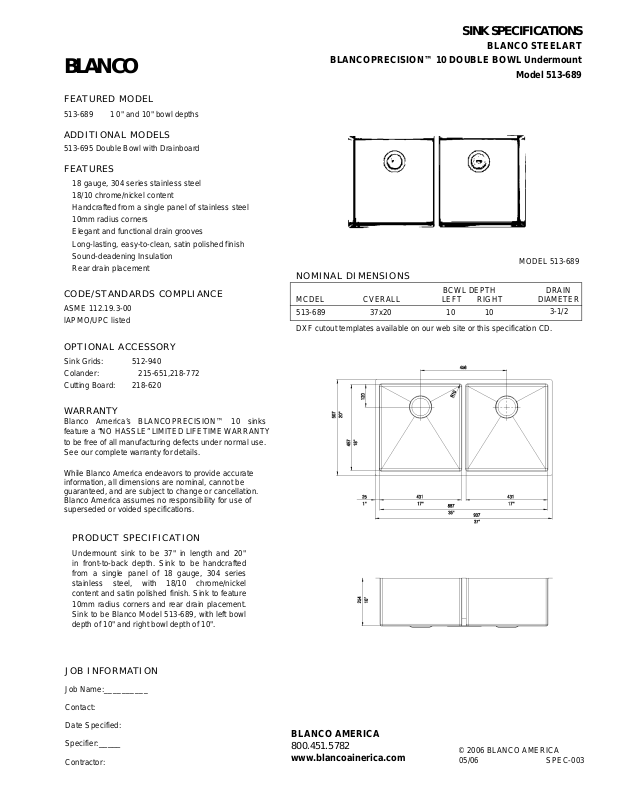

SINK SPECIFICATIONS

BLANCO STEELART

BLANCOPRECISION™ 10 DOUBLE BOWL Undermount

Model 513-689

MODEL 513-689

NOMINAL DIMENSIONS

MCDEL CVERALL LEFT RIGHT DIAMETER
513-689 37x20 10 10

DXF cutout templates available on our web site or this specification CD.

BCWL DEPTH DRAIN

3-1/2

OPTIONAL ACCESSORY

Sink Grids: 512-940
Colander: 215-651, 218-772
Cutting Board: 218-620

WARRANTY

Blanco America’s BLANCOPRECISION™ 10 sinks
feature a “NO HASSLE” LIMITED LIFETIME WARRANTY
to be free of all manufacturing defects under normal use.
See our complete warranty for details.

While Blanco America endeavors to provide accurate
information, all dimensions are nominal, cannot be
guaranteed, and are subject to change or cancellation.
Blanco America assumes no responsibility for use of
superseded or voided specifications.

PRODUCT SPECIFICATION

Undermount sink to be 37" in length and 20"

in front-to-back depth. Sink to be handcrafted
from a single panel of 18 gauge, 304 series
stainless steel, with 18/10 chrome/nickel
content and satin polished finish. Sink to feature

10mm radius corners and rear drain placement.
Sink to be Blanco Model 513-689, with left bowl
depth of 10" and right bowl depth of 10".

JOB INFORMATION

Job Name:

Contact:
Date Specified:
Specifier:
Contractor:

__________

_____

BLANCO AMERICA

800.451.5782

www.blancoainerica.com

© 2006 BLANCO AMERICA
05/06 SPEC-003
