BLANCO

FEATURED MODEL

513-685 1 0" bowl depth

ADDITIONAL MODELS

513-691 Large Bowl with Drainboard
513-692 Super Single Bowl with Drainboard
513-686 Super Single Bowl without Drainboard

FEATURES

18 gauge, 304 series stainless steel
18/10 chrome/nickel content
Handcrafted from a single panel of stainless steel
10mm radius corners
Elegant and functional drain grooves
Long-lasting, easy-to-clean, satin polished finish
Sound-deadening Insulation
Rear drain placement

CODE/STANDARDS COMPLIANCE

ASME 112.19.3-00

lAPMO/UPC listed

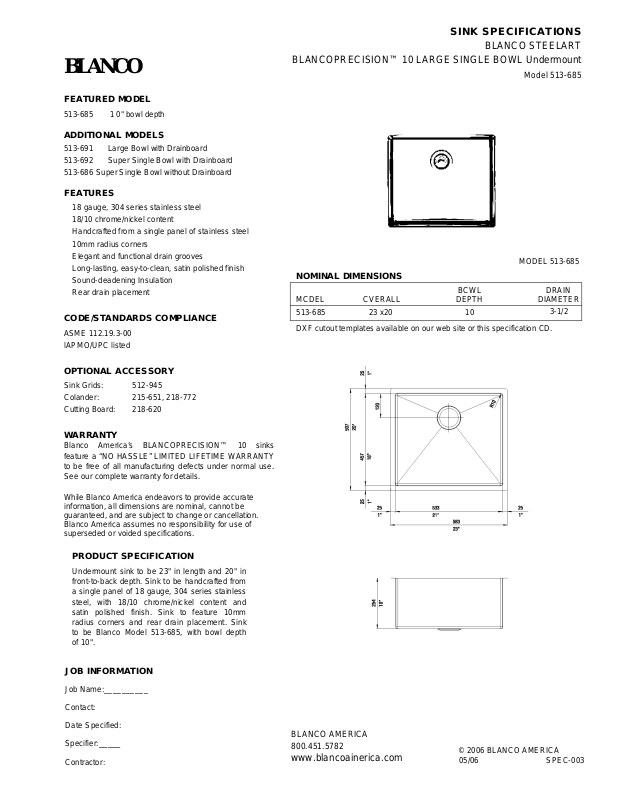

SINK SPECIFICATIONS

BLANCO STEELART

BLANCOPRECISION™ 10 LARGE SINGLE BOWL Undermount

Model 513-685

MODEL 513-685

NOMINAL DIMENSIONS

MCDEL CVERALL DEPTH DIAMETER
513-685 23 x20 10

DXF cutout templates available on our web site or this specification CD.

BCWL DRAIN

3-1/2

OPTIONAL ACCESSORY

Sink Grids: 512-945
Colander: 215-651, 218-772
Cutting Board: 218-620

WARRANTY

Blanco America’s BLANCOPRECISION™ 10 sinks
feature a “NO HASSLE” LIMITED LIFETIME WARRANTY
to be free of all manufacturing defects under normal use.
See our complete warranty for details.

While Blanco America endeavors to provide accurate
information, all dimensions are nominal, cannot be
guaranteed, and are subject to change or cancellation.
Blanco America assumes no responsibility for use of
superseded or voided specifications.

PRODUCT SPECIFICATION

Undermount sink to be 23" in length and 20" in
front-to-back depth. Sink to be handcrafted from
a single panel of 18 gauge, 304 series stainless
steel, with 18/10 chrome/nickel content and
satin polished finish. Sink to feature 10mm
radius corners and rear drain placement. Sink
to be Blanco Model 513-685, with bowl depth
of 10".

JOB INFORMATION

Job Name:

Contact:
Date Specified:
Specifier:
Contractor:

__________

_____

BLANCO AMERICA

800.451.5782

www.blancoainerica.com

© 2006 BLANCO AMERICA
05/06 SPEC-003
