Blanco 513-654 User Manual

BLANCO

FEATURED MODEL

513-654 Right Hand Bar, 7" bowl depth

ADDITIONAL MODELS

513-640 Double Bar, 7" & 7" bowl depths
513-643 Small Bar, 9" bowl depth
513-653 Left Hand Bar, 7" bowl depth

FEATURES

• 18 gauge, 304 series stainless steel

• 18/10 chrome/nickel content

• Long-lasting, easy-to-clean, satin polished finish

• Sound deadening insulation

• Rear drain placement

CODE/STANDARDS COMPLIANCE

ASME 112.19.3-00

lAPMO/UPC listed

OPTIONAL ACCESSORIES

Sink Grid: 220-582
Colander: 514-015

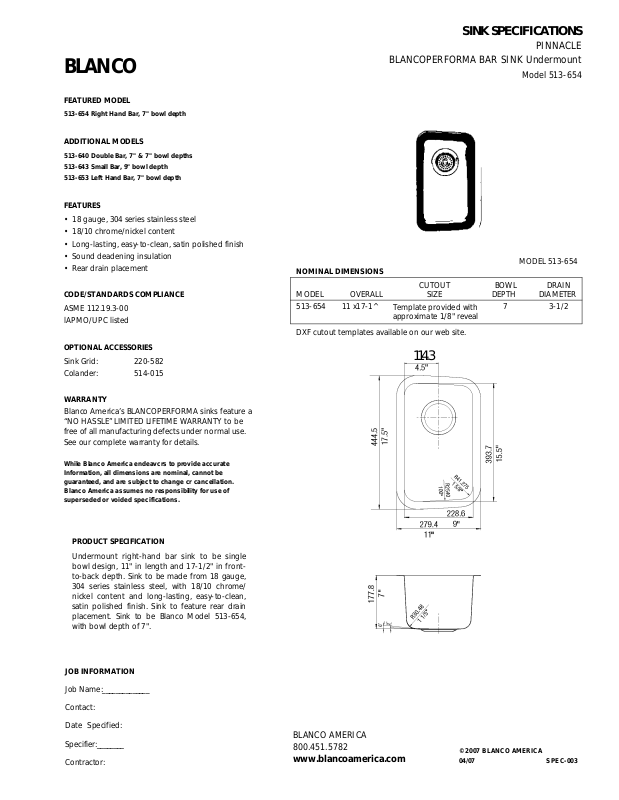

SINK SPECIFICATIONS

PINNACLE

BLANCOPERFORMA BAR SINK Undermount

Model 513-654

NOMINAL DIMENSIONS

MODEL OVERALL SIZE DEPTH DIAMETER
513-654 11 x17-1^

DXF cutout templates available on our web site.

CUTOUT BOWL DRAIN

Template provided with
approximate 1/8" reveal

MODEL 513-654

7 3-1/2

114.3

WARRANTY

Blanco America’s BLANCOPERFORMA sinks feature a
“NO HASSLE” LIMITED LIFETIME WARRANTY to be
free of all manufacturing defects under normal use.
See our complete warranty for details.

While Blanco America endeavcrs to provide accurate
Information, all dimensions are nominal, cannot be
guaranteed, and are subject to change cr cancellation.
Blanco America assumes no responsibility for use of
superseded or voided specifications.

PRODUCT SPECIFICATION

Undermount right-hand bar sink to be single
bowl design, 11" in length and 17-1/2" in front­to-back depth. Sink to be made from 18 gauge,
304 series stainless steel, with 18/10 chrome/
nickel content and long-lasting, easy-to-clean,
satin polished finish. Sink to feature rear drain
placement. Sink to be Blanco Model 513-654,
with bowl depth of 7".

JOB INFORMATION

Job Name:______________

Contact:
Date Specified:

Specifier:

Contractor:

________

BLANCO AMERICA

800.451.5782

www.blancoamerica.com

© 2007 BLANCO AMERICA
04/07 SPEC-003
