Blanco 513-643 User Manual
BLANCO
FEATURED MODEL
513-643 Small Bar, 9" bowl depth
ADDITIONAL MODELS
513-640 Double Bar, 7" & 7" bowl depths
513-653 Left Hand Bar, 7" bowl depth
513-654 Right Hand Bar, 7" bowl depth
FEATURES
• 18 gauge, 304 series stainless steel
• 18/10 chrome/nickel content
• Long-lasting, easy-to-clean, satin polished finish
• Sound deadening insulation
• Rear drain placement
CODE/STANDARDS COMPLIANCE
ASME 112.19.3-00
lAPMO/UPC listed
OPTIONAL ACCESSORIES
Sink Grid: 220-585
Cutting Board: 513-142

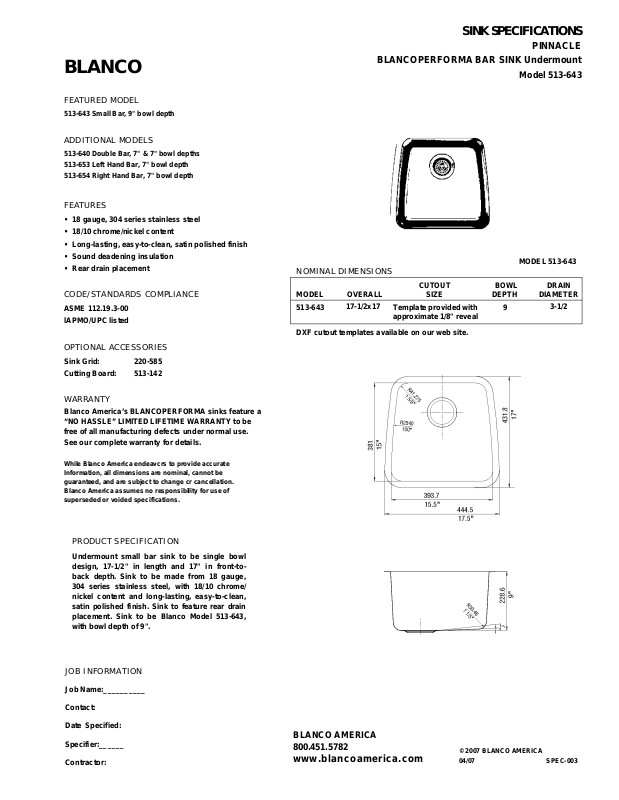

SINK SPECIFICATIONS
PINNACLE
BLANCOPERFORMA BAR SINK Undermount
Model 513-643
NOMINAL DIMENSIONS
MODEL OVERALL SIZE DEPTH DIAMETER
513-643
DXF cutout templates available on our web site.
17-1/2x17
CUTOUT BOWL DRAIN
Template provided with
approximate 1/8" reveal
MODEL 513-643
9
3-1/2
WARRANTY
Blanco America’s BLANCOPERFORMA sinks feature a
“NO HASSLE” LIMITED LIFETIME WARRANTY to be
free of all manufacturing defects under normal use.
See our complete warranty for details.
While Blanco America endeavcrs to provide accurate
Information, all dimensions are nominal, cannot be
guaranteed, and are subject to change cr cancellation.
Blanco America assumes no responsibility for use of
superseded or voided specifications.
PRODUCT SPECIFICATION
Undermount small bar sink to be single bowl
design, 17-1/2" in length and 17" in front-toback depth. Sink to be made from 18 gauge,
304 series stainless steel, with 18/10 chrome/
nickel content and long-lasting, easy-to-clean,
satin polished finish. Sink to feature rear drain
placement. Sink to be Blanco Model 513-643,
with bowl depth of 9".
JOB INFORMATION
Job Name:
__________
Contact:
Date Specified:
Specifier:
Contractor:
______
BLANCO AMERICA
800.451.5782
www.blancoamerica.com
© 2007 BLANCO AMERICA
04/07 SPEC-003
