Blanco 513-641 User Manual

BLANCO

FEATURED MODEL

513-641 Large, 10" bowl depth

ADDITIONAL MODELS

513-642 Medium, 10" bowl depth
513-644 Super Single, 10" bowl depth

FEATURES

• 18 gauge, 304 series stainless steel

• 18/10 chrome/nickel content

• Long-lasting, easy-to-clean, satin polished finish

• Sound deadening insulation

• Rear drain placement

CODE/STANDARDS COMPLIANCE

ASME 112.19.3-00

lAPMO/UPC listed

OPTIONAL ACCESSORIES

Sink Grid: 220-583
Cutting Board: 513-140

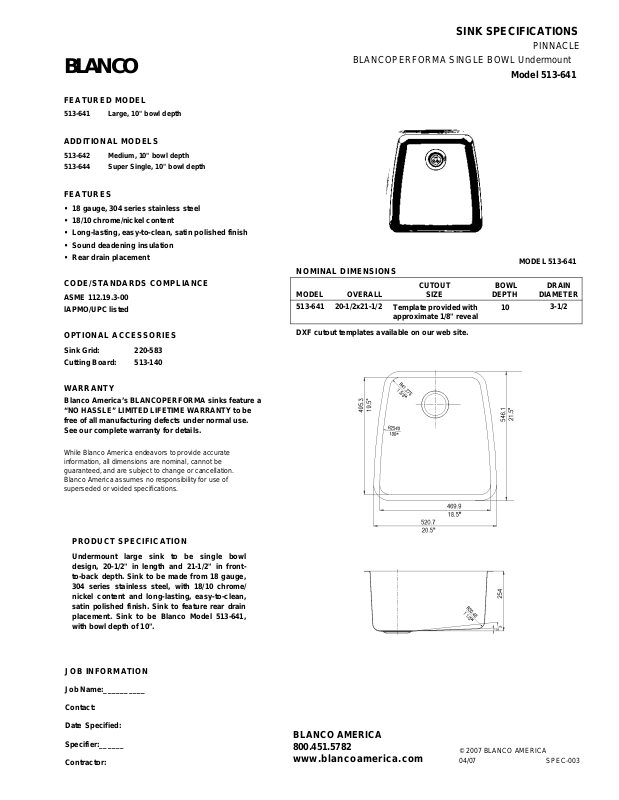

SINK SPECIFICATIONS

PINNACLE

BLANCOPERFORMA SINGLE BOWL Undermount

Model 513-641

NOMINAL DIMENSIONS

MODEL OVERALL SIZE DEPTH DIAMETER
513-641 20-1/2x21-1/2

DXF cutout templates available on our web site.

CUTOUT BOWL DRAIN

Template provided with
approximate 1/8" reveal

MODEL 513-641

10

3-1/2

WARRANTY

Blanco America’s BLANCOPERFORMA sinks feature a

“NO HASSLE” LIMITED LIFETIME WARRANTY to be
free of all manufacturing defects under normal use.
See our complete warranty for details.

While Blanco America endeavors to provide accurate
information, all dimensions are nominal, cannot be
guaranteed, and are subject to change or cancellation.
Blanco America assumes no responsibility for use of
superseded or voided specifications.

PRODUCT SPECIFICATION

Undermount large sink to be single bowl
design, 20-1/2" in length and 21-1/2" in front­to-back depth. Sink to be made from 18 gauge,
304 series stainless steel, with 18/10 chrome/
nickel content and long-lasting, easy-to-clean,
satin polished finish. Sink to feature rear drain
placement. Sink to be Blanco Model 513-641,
with bowl depth of 10".

JOB INFORMATION

Job Name:

Contact:
Date Specified:

Specifier:

Contractor:

__________

______

BLANCO AMERICA

800.451.5782

www.blancoamerica.com

© 2007 BLANCO AMERICA
04/07 SPEC-003
