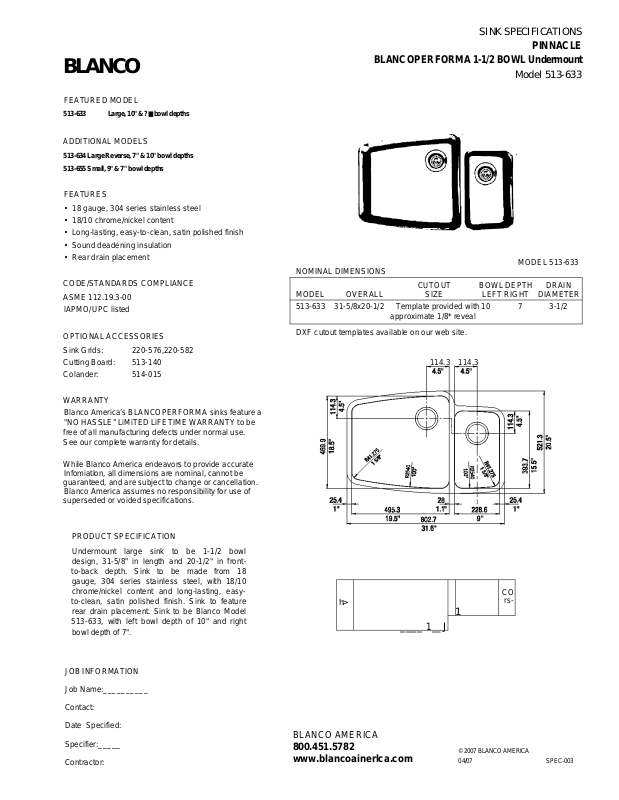

Blanco 513-633 User Manual
BLANCO
FEATURED MODEL
513-633 Large, 10" & ?■ bowl depths
ADDITIONAL MODELS
513-634 Large Reverse, 7" & 10" bowl depths
513-655 Small, 9" & 7" bowl depths
FEATURES
• 18 gauge, 304 series stainless steel
• 18/10 chrome/nickel content
• Long-lasting, easy-to-clean, satin polished finish
• Sound deadening insulation
• Rear drain placement
CODE/STANDARDS COMPLIANCE
ASME 112.19.3-00
lAPMO/UPC listed
OPTIONAL ACCESSORIES
Sink Grids: 220-576,220-582
Cutting Board: 513-140
Colander: 514-015
SINK SPECIFICATIONS
BLANCOPERFORMA 1-1/2 BOWL Undermount
NOMINAL DIMENSIONS
MODEL OVERALL
513-633 31-5/8x20-1/2 Template provided with 10
DXF cutout templates available on our web site.
CUTOUT
SIZE
approximate 1/8* reveal
114.3 114.3
BOWL DEPTH
LEFT RIGHT
PINNACLE
Model 513-633
MODEL 513-633
DRAIN
DIAMETER
7 3-1/2
WARRANTY
Blanco America’s BLANCOPERFORMA sinks feature a
"NO HASSLE” LiMiTED LiFETIME WARRANTY to be
free of all manufacturing defects under normal use.
See our complete warranty for details.
While Blanco America endeavors to provide accurate
Infomiatlon, all dimensions are nominal, cannot be
guaranteed, and are subject to change or cancellation.
Blanco America assumes no responsibility for use of
superseded or voided specifications.
PRODUCT SPECIFICATION
Undermount large sink to be 1-1/2 bowl
design, 31-5/8" in length and 20-1/2" in frontto-back depth. Sink to be made from 18
gauge, 304 series stainless steel, with 18/10
chrome/nickel content and long-lasting, easyto-clean, satin polished finish. Sink to feature
rear drain placement. Sink to be Blanco Model
513-633, with left bowl depth of 10" and right
bowl depth of 7".
JOB INFORMATION
Job Name:
__________
CO
h>
rs-
1
____1_
J
Contact:
Date Specified:
Specifier:
Contractor:
_____
BLANCO AMERICA
800.451.5782
www.blancoainerlca.com
© 2007 BLANCO AMERICA
04/07 SPEC-003
