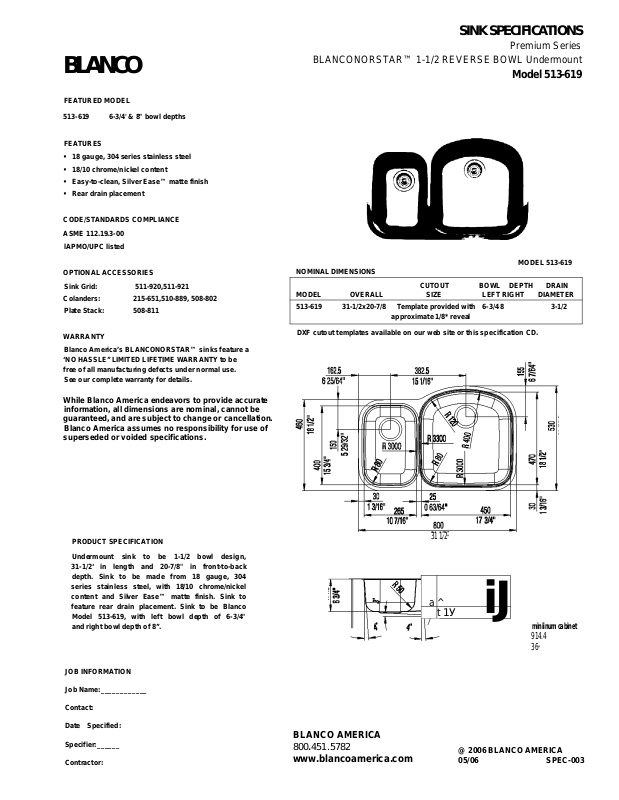

Blanco 513-619 User Manual
BLANCO
FEATURED MODEL
513-619 6-3/4' & 8" bowl depths
FEATURES
• 18 gauge, 304 series stainless steel
• 18/10 chrome/nickel content
• Easy-to-clean, Silver Ease™ matte finish
• Rear drain placement
CODE/STANDARDS COMPLIANCE
ASME 112.19.3-00
lAPMO/UPC listed
OPTIONAL ACCESSORIES
Sink Grid: 511-920,511-921
Colanders: 215-651,510-889, 508-802
Plate Stack: 508-811
WARRANTY
Blanco America’s BLANCONORSTAR™ sinks feature a
‘NO HASSLE” LIMITED LIFETIME WARRANTY to be
free of all manufacturing defects under normal use.
See our complete warranty for details.
SINK SPECIFICATIONS
Premium Series
BLANCONORSTAR™ 1-1/2 REVERSE BOWL Undermount
Model 513-619
NOMINAL DIMENSIONS
MODEL OVERALL
513-619 31-1/2x20-7/8 Template provided with 6-3/4 8 3-1/2
DXF cutout templates available on our web site or this specification CD.
CUTOUT
SIZE
approximate 1/8* reveal
BOWL DEPTH
LEFT RIGHT
MODEL 513-619
DRAIN
DIAMETER
While Blanco America endeavors to provide accurate
information, all dimensions are nominal, cannot be
guaranteed, and are subject to change or cancellation.
Blanco America assumes no responsibility for use of
superseded or voided specifications.
PRODUCT SPECIFICATION
Undermount sink to be 1-1/2 bowl design,
31-1/2‘ in length and 20-7/8" in front-to-back
depth. Sink to be made from 18 gauge, 304
series stainless steel, with 18/10 chrome/nickel
content and Silver Ease™ matte finish. Sink to
feature rear drain placement. Sink to be Blanco
Model 513-619, with left bowl depth of 6-3/4"
and right bowl depth of 8”.
JOB INFORMATION
Job Name:
____________
31 1/2
a ^
"
t 1У
iJ
miniinum cabinet
914. 4
36
"
Contact:
Date Specified:
Specifier:
Contractor:
______
BLANCO AMERICA
800.451.5782
www.blancoamerica.com
@ 2006 BLANCO AMERICA
05/06 SPEC-003
