BLANCO

FEATURED MODEL

513-611 7" & 8" bowl depths

FEATURES

• 18 gauge, 304 series stainless steel

• 18/10 chrome/nickel content

• Easy-to-clean, Silver Ease™ matte finish

• Rear drain placement

CODE/STANDARDS COMPLIANCE

ASME 112.19.3-00

lAPMO/UPC listed

OPTIONAL ACCESSORIES

Sink Grid: 510-901,512-944

Colanders: 215-651,510-889, 508-803

WARRANTY

Blanco America’s BLANCONORSTAR™ sinks feature a “NO HASSLE” LIMITED LIFETIME WARRANTY to be free of all manufacturing defects under normal use.

See our complete warranty for details.

While Blanco America endeavors to provide accurate

information, all dimensions are nominal, cannot be guaranteed, and are subject to change or cancellation.

Blanco America assumes no responsibility for use of superseded or voided specifications.

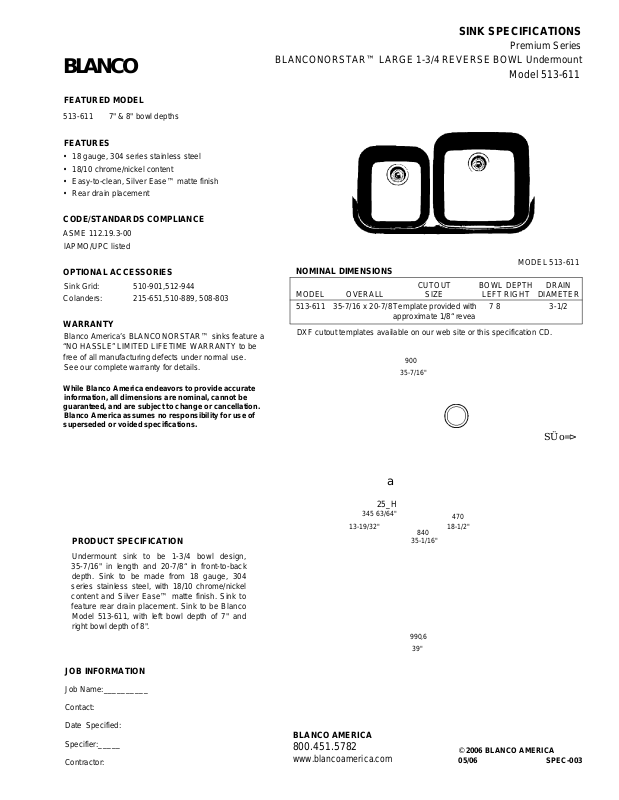

SINK SPECIFICATIONS

Premium Series

BLANCONORSTAR™ LARGE 1-3/4 REVERSE BOWL Undermount

Model 513-611

NOMINAL DIMENSIONS

MODEL OVERALL 513-611 35-7/16 x 20-7/8Template provided with

DXF cutout templates available on our web site or this specification CD.

CUTOUT

SIZE

approximate 1/8“ revea

900

35-7/16"

BOWL DEPTH

LEFT RIGHT

MODEL 513-611

DRAIN

DIAMETER

7 8 3-1/2

SÜ o=>

PRODUCT SPECIFICATION

Undermount sink to be 1-3/4 bowl design, 35-7/16" in length and 20-7/8“ in front-to-back depth. Sink to be made from 18 gauge, 304 series stainless steel, with 18/10 chrome/nickel content and Silver Ease™ matte finish. Sink to feature rear drain placement. Sink to be Blanco Model 513-611, with left bowl depth of 7" and right bowl depth of 8".

JOB INFORMATION

Job Name: Contact: Date Specified: Specifier: Contractor:

__________

_____

25_H

345 63/64"

13-19/32"

BLANCO AMERICA

800.451.5782

www.blancoamerica.com

470

18-1/2"

840

35-1/16"

990,6

39"
