BLANCO

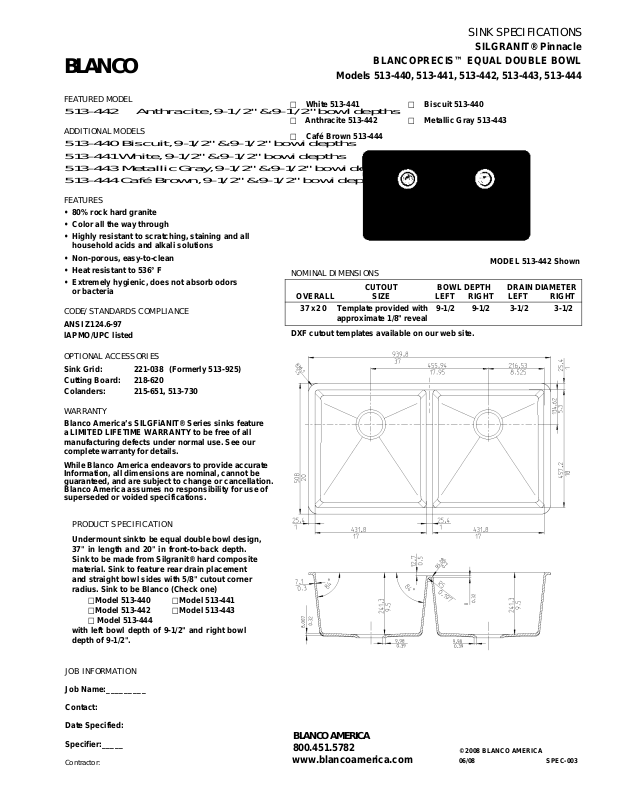

SINK SPECIFICATIONS
SILGRANIT® Pinnacle
BLANCOPRECIS™ EQUAL DOUBLE BOWL
Models 513-440, 513-441, 513-442, 513-443, 513-444
FEATURED MODEL
513-442 Anthracite, 9-1 /2" & 9-1 /2" bowl depths
ADDITIONAL MODELS
513-440 Biscuit, 9-1/2" & 9-1/2" bowi depths
513-441 White, 9-1/2" & 9-1/2" bowi depths
513-443 Metallic Gray, 9-1/2" & 9-1/2" bowi depths
513-444 Café Brown, 9-1/2" & 9-1/2" bowi depths
FEATURES
• 80% rock hard granite
• Color all the way through
• Highly resistant to scratching, staining and all
household acids and alkali solutions
• Non-porous, easy-to-clean
• Heat resistant to 536° F
• Extremely hygienic, does not absorb odors
or bacteria
CODE/STANDARDS COMPLIANCE
ANSI Z124.6-97
lAPMO/UPC listed
OPTIONAL ACCESSORIES
Sink Grid: 221-038 (Formerly 513-925)
Cutting Board: 218-620
Colanders: 215-651, 513-730
□ White 513-441
□ Anthracite 513-442
□ Café Brown 513-444
NOMINAL DIMENSIONS
CUTOUT BOWL DEPTH DRAIN DIAMETER
OVERALL SIZE LEFT RIGHT LEFT RIGHT
37x20 Template provided with
approximate 1/8" reveal
DXF cutout templates available on our web site.
□ Biscuit 513-440
□ Metallic Gray 513-443
MODEL 513-442 Shown
9-1/2 9-1/2 3-1/2 3-1/2
WARRANTY
Blanco America’s SILGFiANIT® Series sinks feature
a LIMITED LIFETIME WARRANTY to be free of all
manufacturing defects under normal use. See our
complete warranty for details.
While Blanco America endeavors to provide accurate
Information, all dimensions are nominal, cannot be
guaranteed, and are subject to change or cancellation.
Blanco America assumes no responsibility for use of
superseded or voided specifications.
PRODUCT SPECIFICATION
Undermount sinkto be equal double bowl design,
37" in length and 20" in front-to-back depth.
Sink to be made from Silgranit® hard composite
material. Sink to feature rear drain placement
and straight bowl sides with 5/8" cutout corner
radius. Sink to be Blanco (Check one)
□ Model 513-440 □ Model 513-441
□ Model 513-442 □ Model 513-443
□ Model 513-444
with left bowl depth of 9-1/2" and right bowl
depth of 9-1/2".
JOB INFORMATION
Job Name:
_________
Contact:
Date Specified:
Specifier:
Contractor:
_____
BLANCO AMERICA
800.451.5782
www.blancoamerica.com
© 2008 BLANCO AMERICA
06/08 SPEC-003
