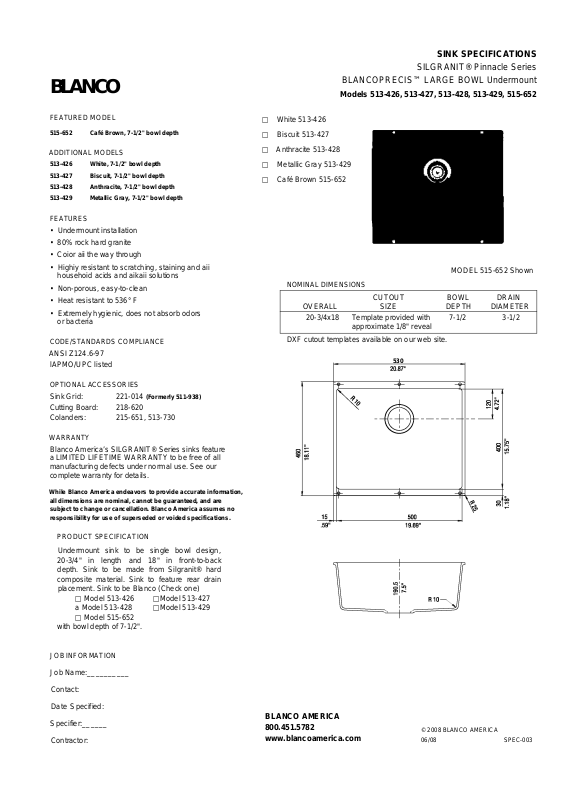

Blanco 513-426 User Manual

BLANCO

SINK SPECIFICATIONS

SILGRANIT® Pinnacle Series

BLANCOPRECIS™ LARGE BOWL Undermount

Models 513-426, 513-427, 513-428, 513-429, 515-652

FEATURED MODEL

515-652 Café Brown, 7-1/2" bowl depth

ADDITIONAL MODELS

513-426 White, 7-1/2" bowl depth 513-427 Biscuit, 7-1/2" bowl depth 513-428 Anthracite, 7-1/2" bowl depth 513-429 Metallic Gray, 7-1/2" bowl depth

FEATURES

• Undermount installation

• 80% rock hard granite

• Coior aii the way through

• Highiy resistant to scratching, staining and aii househoid acids and aikaii solutions

• Non-porous, easy-to-clean

• Heat resistant to 536° F

• Extremely hygienic, does not absorb odors or bacteria

CODE/STANDARDS COMPLIANCE

ANSI Z124.6-97 lAPMO/UPC listed

OPTIONAL ACCESSORIES

Sink Grid: 221-014 (Formerly 511-938) Cutting Board: 218-620 Colanders: 215-651, 513-730

□ White 513-426 □ Biscuit 513-427 □ Anthracite 513-428 □ Metallic Gray 513-429 □ Café Brown 515-652

NOMINAL DIMENSIONS

CUTOUT BOWL DRAIN

OVERALL SIZE DEPTH DIAMETER

20-3/4x18 Template provided with

approximate 1/8" reveal

DXF cutout templates available on our web site.

MODEL 515-652 Shown

7-1/2 3-1/2

530

WARRANTY

Blanco America’s SILGRANIT® Series sinks feature a LIMITED LIFETIME WARRANTY to be free of all manufacturing defects under normal use. See our

complete warranty for details.

While Blanco America endeavors to provide accurate information, all dimensions are nominal, cannot be guaranteed, and are subject to change or cancellation. Blanco America assumes no responsibility for use of superseded or voided specifications.

PRODUCT SPECIFICATION

Undermount sink to be single bowl design, 20-3/4" in length and 18" in front-to-back depth. Sink to be made from Silgranit® hard composite material. Sink to feature rear drain placement. Sink to be Blanco (Check one)

□ Model 513-426 □ Model 513-427 a Model 513-428 □ Model 513-429 □ Model 515-652

with bowl depth of 7-1/2".

JOB INFORMATION

Job Name:

__________ Contact: Date Specified: Specifier:

______

Contractor:

BLANCO AMERICA

800.451.5782 www.blancoamerica.com
