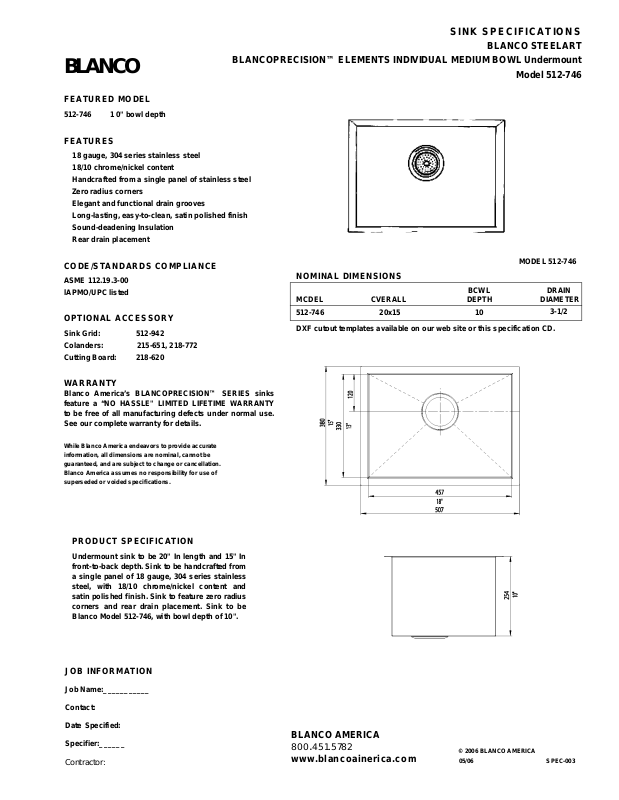

Blanco 512-746 User Manual

BLANCO

FEATURED MODEL

512-746 1 0" bowl depth

FEATURES

18 gauge, 304 series stainless steel 18/10 chrome/nickel content

Handcrafted from a single panel of stainless steel Zero radius corners Elegant and functional drain grooves Long-lasting, easy-to-clean, satin polished finish Sound-deadening Insulation Rear drain placement

SINK SPECIFICATIONS

BLANCO STEELART

BLANCOPRECISION™ ELEMENTS INDIVIDUAL MEDIUM BOWL Undermount

Model 512-746

CODE/STANDARDS COMPLIANCE

ASME 112.19.3-00

lAPMO/UPC listed

OPTIONAL ACCESSORY

Sink Grid: 512-942 Colanders: 215-651, 218-772 Cutting Board: 218-620

WARRANTY

Blanco America’s BLANCOPRECISION™ SERIES sinks feature a “NO HASSLE" LIMITED LIFETIME WARRANTY to be free of all manufacturing defects under normal use. See our complete warranty for details.

While Blanco America endeavors to provide accurate information, all dimensions are nominal, cannot be guaranteed, and are subject to change or cancellation. Blanco America assumes no responsibility for use of superseded or voided specifications.

PRODUCT SPECIFICATION

Undermount sink to be 20" In length and 15" In front-to-back depth. Sink to be handcrafted from a single panel of 18 gauge, 304 series stainless steel, with 18/10 chrome/nickel content and satin polished finish. Sink to feature zero radius corners and rear drain placement. Sink to be Blanco Model 512-746, with bowl depth of 10".

MODEL 512-746

NOMINAL DIMENSIONS

MCDEL CVERALL DEPTH DIAMETER 512-746 20x15 10

DXF cutout templates available on our web site or this specification CD.

BCWL DRAIN

3-1/2

JOB INFORMATION

Job Name:

Contact: Date Specified:

Specifier:

___________

______

Contractor:

BLANCO AMERICA

800.451.5782

www.blancoainerica.com
