Blanco 511-969 User Manual

BLANCO

FEATURED MODEL

511-969 10" & 6* bowl depths

FEATURES

• 18 gauge, 304 series stainless steel

• 18/10 chrome/nickel content

• Long-lasting, easy-to-clean, satin polished finish

• Straight bowl sides with 5/8" cutout corner radius

• Rear drain placement

CODE/STANDARDS COMPLIANCE

ASME 112.19.3-00

lAPMO/UPC listed

OPTIONAL ACCESSORIES

Sink Grid: 510-902

Colanders: 215-651

WARRANTY

Blanco America’s Platinum Series sinks feature a “NO HASSLE” LIMITED LIFETIME WARRANTY to be free of all manufacturing defects under normal use.

See our complete warranty for details.

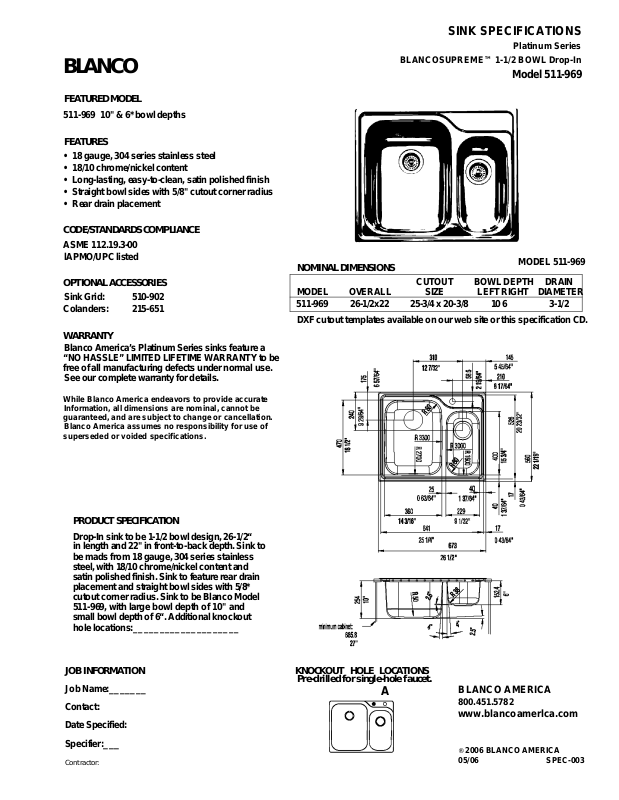

SINK SPECIFICATIONS

Platinum Series

BLANCOSUPREME™ 1-1/2 BOWL Drop-In

Model 511-969

NOMINAL DIMENSIONS

MODEL OVERALL 511-969

DXF cutout templates available on our web site or this specification CD.

26-1/2x22

CUTOUT

SIZE

25-3/4 x 20-3/8 10 6

BOWL DEPTH

LEFT RIGHT

MODEL 511-969

DRAIN

DIAMETER

3-1/2

While Blanco America endeavors to provide accurate

Information, all dimensions are nominal, cannot be guaranteed, and are subject to change or cancellation.

Blanco America assumes no responsibility for use of superseded or voided specifications.

PRODUCT SPECIFICATION

Drop-In sink to be 1-1/2 bowl design, 26-1/2“ in length and 22" in front-to-back depth. Sink to be mads from 18 gauge, 304 series stainless steel, with 18/10 chrome/nickel content and satin polished finish. Sink to feature rear drain placement and straight bowl sides with 5/8* cutout corner radius. Sink to be Blanco Model 511-969, with large bowl depth of 10" and small bowl depth of 6“. Additional knockout hole locations:

JOB INFORMATION

Job Name: Contact: Date Specified:

____________________

______ _

KNOCKOUT HOLE LOCATIONS

Pre-drilled for single-hole faucet.

BLANCO AMERICA

800.451.5782

www.blancoamerlca.com

Specifier:

Contractor:

___

® 2006 BLANCO AMERICA

05/06 SPEC-003
