Blanco 511-967 User Manual

BLANCO

FEATURED MODEL

511-967 1 0" & 6' bowl depths

FEATURES

• 18 gauge, 304 series stainless steel

• 18/10 chrome/nickel content

• Long-lasting, easy-to-clean, satin polished finish

• Rear drain placement

CODE/STANDARDS COMPLIANCE
ASME 112.19.3-00

lAPMO/UPC listed

OPTIONAL ACCESSORIES

Sink Grid: 510-902

Colanders: 215-651,508-801

Plate Stack: 508-810

WARRANTY

Blanco America’s Platinum Series sinks feature a
“NO HASSLE” LIMITED LIFETIME WARRANTY to be
free of all manufacturing defects under normal use.

See our complete warranty for details.

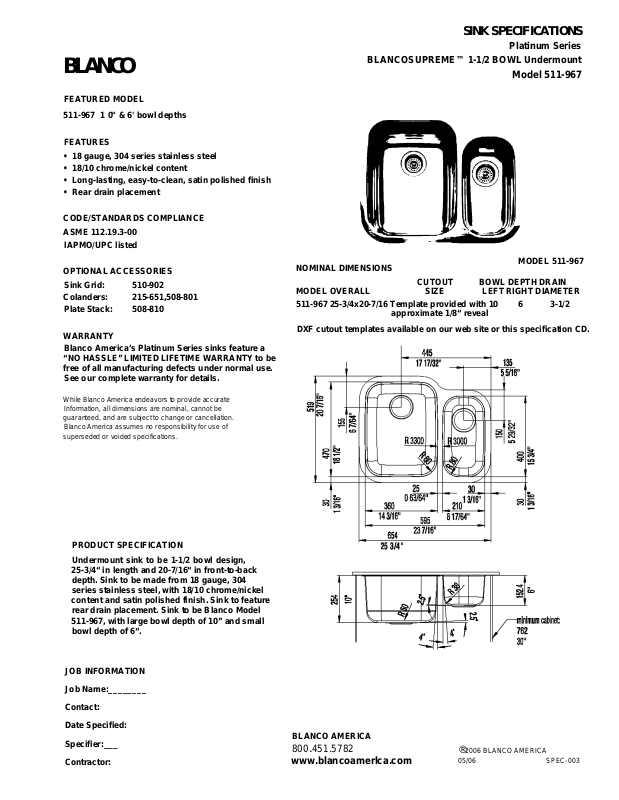

SINK SPECIFICATIONS

Platinum Series

BLANCOSUPREME™ 1-1/2 BOWL Undermount

Model 511-967

NOMINAL DIMENSIONS

MODEL OVERALL
511-967 25-3/4x20-7/16 Template provided with 10 6

DXF cutout templates available on our web site or this specification CD.

CUTOUT

SIZE

approximate 1/8“ reveal

BOWL DEPTH DRAIN

LEFT RIGHT DIAMETER

MODEL 511-967

3-1/2

While Blanco America endeavors to provide accurate

Information, all dimensions are nominal, cannot be
guaranteed, and are subject to change or cancellation.

Blanco America assumes no responsibility for use of
superseded or voided specifications.

PRODUCT SPECIFICATION
Undermount sink to be 1-1/2 bowl design,

25-3/4“ in length and 20-7/16“ in front-to-back
depth. Sink to be made from 18 gauge, 304
series stainless steel, with 18/10 chrome/nickel
content and satin polished finish. Sink to feature
rear drain placement. Sink to be Blanco Model
511-967, with large bowl depth of 10” and small
bowl depth of 6“.

JOB INFORMATION
Job Name:

________

Contact:
Date Specified:
Specifier:
Contractor:

___

BLANCO AMERICA

800.451.5782

www.blancoamerlca.com

® 2006 BLANCO AMERICA

05/06 SPEC-003
