BLANCO

FEATURED MODEL

511-749R 6-3/4" & B* bowl depths

ADDITIONAL MODELS

511-749 Left side large bowl, 8" & 6-3/4" bowl depths 511-750 Left side large bowl, 10* & 6-3/4" bowl depths 511-750R Right side large bowl, 6-3/4" & 10" bowl depths

FEATURES

• 18 gauge, 304 series stainless steel

• 18/10 chrome/nickel content

• Long-lasting, easy-to-clean, satin polished finish

• Rear drain placement

CODE/STANDARDS COMPLIANCE

ASME 112.19.3-00

lAPMO/UPC listed

OPTIONAL ACCESSORIES

Sink Grids; 511 -920,511 -921

Colanders: 215-651, 510-889, 508-802

Plate Stack: 508-811

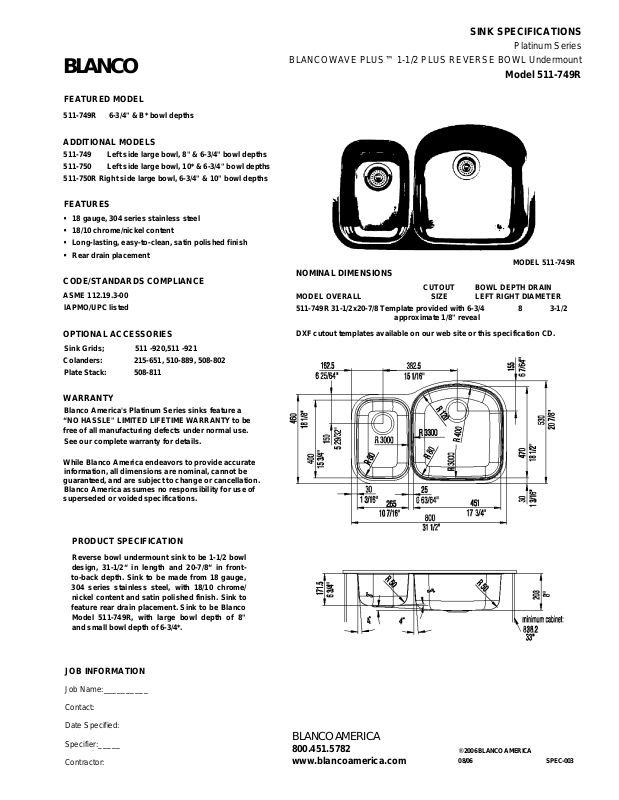

SINK SPECIFICATIONS

Platinum Series

BLANCOWAVE PLUS™ 1-1/2 PLUS REVERSE BOWL Undermount

Model 511-749R

MODEL 511-749R

NOMINAL DIMENSIONS

MODEL OVERALL 511-749R 31-1/2x20-7/8 Template provided with 6-3/4 8

DXF cutout templates available on our web site or this specification CD.

CUTOUT BOWL DEPTH DRAIN

SIZE LEFT RIGHT DIAMETER

3-1/2

approximate 1/8" reveal

WARRANTY

Blanco America's Platinum Series sinks feature a

“NO HASSLE" LIMITED LIFETIME WARRANTY to be free of all manufacturing defects under normal use.

See our complete warranty for details.

While Blanco America endeavors to provide accurate

information, all dimensions are nominal, cannot be

guaranteed, and are subject to change or cancellation.

Blanco America assumes no responsibility for use of

superseded or voided specifications.

PRODUCT SPECIFICATION

Reverse bowl undermount sink to be 1-1/2 bowl design, 31-1/2“ in length and 20-7/8“ in frontto-back depth. Sink to be made from 18 gauge, 304 series stainless steel, with 18/10 chrome/ nickel content and satin polished finish. Sink to feature rear drain placement. Sink to be Blanco Model 511-749R, with large bowl depth of 8" and small bowl depth of 6-3/4*.

JOB INFORMATION

Job Name:

__________ Contact: Date Specified: Specifier: Contractor:

_____

BLANCO AMERICA

800.451.5782 www.blancoamerica.com

® 2006 BLANCO AMERICA 08/06 SPEC-003
