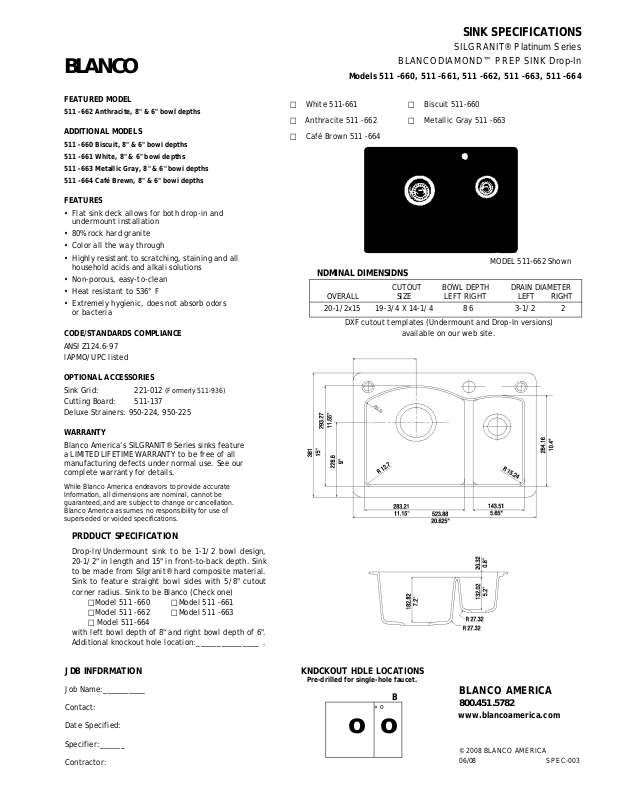

Blanco 511-663 User Manual

BLANCO

SINK SPECIFICATIONS

SILGRANIT® Platinum Series

BLANCODIAMOND™ PREP SINK Drop-In

Models 511 -660, 511 -661, 511 -662, 511 -663, 511 -664

FEATURED MODEL

511 -662 Anthracite, 8" & 6" bowl depths

ADDITIONAL MODELS

511 -660 Biscuit, 8" & 6" bowi depths
511 -661 White, 8" & 6" bowi depths
511 -663 Metallic Gray, 8" & 6" bowi depths
511 -664 Café Brewn, 8" & 6" bowi depths

FEATURES

• Flat sink deck allows for both drop-in and
undermount installation

• 80% rock hard granite

• Color all the way through

• Highly resistant to scratching, staining and all
household acids and alkali solutions

• Non-porous, easy-to-clean

• Heat resistant to 536° F

• Extremely hygienic, does not absorb odors
or bacteria

CODE/STANDARDS COMPLIANCE

ANSI Z124.6-97
lAPMO/UPC listed

OPTIONAL ACCESSORIES

Sink Grid: 221-012 (Formerly 511-936)
Cutting Board: 511-137
Deluxe Strainers: 950-224, 950-225

□ White 511-661
□ Anthracite 511 -662
□ Café Brown 511 -664

NDMINAL DIMENSIDNS

OVERALL SIZE LEFT RIGHT LEFT RIGHT

20-1/2x15 19-3/4 X 14-1/4 8 6 3-1/2 2

DXF cutout templates (Undermount and Drop-In versions)

□ Biscuit 511-660
□ Metallic Gray 511 -663

MODEL 511-662 Shown

CUTOUT BOWL DEPTH DRAIN DIAMETER

available on our web site.

WARRANTY

Blanco America’s SILGRANIT® Series sinks feature
a LIMITED LIFETIME WARRANTY to be free of all
manufacturing defects under normal use. See our
complete warranty for details.

While Blanco America endeavors to provide accurate
Information, all dimensions are nominal, cannot be
guaranteed, and are subject to change or cancellation.
Blanco America assumes no responsibility for use of
superseded or voided specifications.

PRDDUCT SPECIFICATION

Drop-ln/Undermount sink to be 1-1/2 bowl design,
20-1/2" in length and 15" in front-to-back depth. Sink
to be made from Silgranit® hard composite material.
Sink to feature straight bowl sides with 5/8" cutout
corner radius. Sink to be Blanco (Check one)

□ Model 511 -660 □ Model 511 -661
□ Model 511 -662 □ Model 511 -663

□ Model 511-664
with left bowl depth of 8" and right bowl depth of 6".
Additional knockout hole location:

_______________

JDB INFDRMATION

Job Name:
Contact:
Date Specified:
Specifier:
Contractor:

__________

______

.

KNDCKOUT HDLE LOCATIONS

Pre-drilled for single-hole faucet.

BLANCO AMERICA

800.451.5782

www.blancoamerica.com

© 2008 BLANCO AMERICA
06/08 SPEC-003

o

B

» o

o
