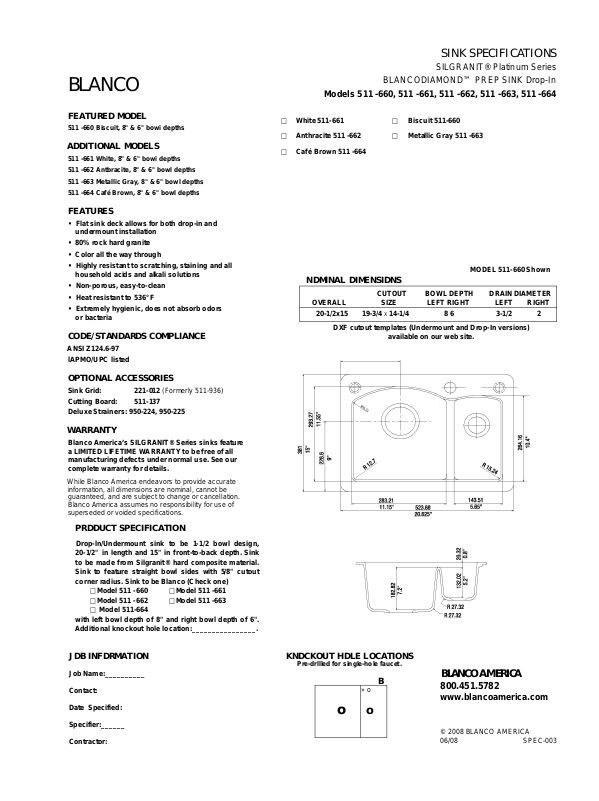

BLANCO

SINK SPECIFICATIONS

SILGRANIT® Platinum Series

BLANCODIAMOND™ PREP SINK Drop-In

Models 511 -660, 511 -661, 511 -662, 511 -663, 511 -664

FEATURED MODEL

511 -660 Biscuit, 8" & 6" bowi depths

ADDITIONAL MODELS

511 -661 White, 8" & 6" bowi depths 511 -662 Antbracite, 8" & 6" bowl depths 511 -663 Metallic Gray, 8" & 6" bowl depths 511 -664 Café Brown, 8" & 6" bowl depths

FEATURES

• Flat sink deck allows for both drop-in and

undermount installation

• 80% rock hard granite

• Color all the way through

• Highly resistant to scratching, staining and all

household acids and alkali solutions

• Non-porous, easy-to-clean

• Heat resistant to 536° F

• Extremely hygienic, does not absorb odors

or bacteria

CODE/STANDARDS COMPLIANCE

ANSI Z124.6-97 lAPMO/UPC listed

OPTIONAL ACCESSORIES

Sink Grid: 221-012 (Formerly 511-936) Cutting Board: 511-137 Deluxe Strainers: 950-224, 950-225

□ White 511-661 □ Anthracite 511 -662 □ Café Brown 511 -664

NDMINAL DIMENSIDNS

OVERALL SIZE LEFT RIGHT LEFT RIGHT

20-1/2x15 19-3/4 X 14-1/4 8 6 3-1/2 2

DXF cutout templates (Undermount and Drop-In versions)

□ Biscuit 511-660 □ Metallic Gray 511 -663

MODEL 511-660 Shown

CUTOUT BOWL DEPTH DRAIN DIAMETER

available on our web site.

WARRANTY

Blanco America’s SILGRANIT® Series sinks feature a LIMITED LIFETIME WARRANTY to be free of all manufacturing defects under normal use. See our complete warranty for details.

While Blanco America endeavors to provide accurate information, all dimensions are nominal, cannot be guaranteed, and are subject to change or cancellation. Blanco America assumes no responsibility for use of superseded or voided specifications.

PRDDUCT SPECIFICATION

Drop-ln/Undermount sink to be 1-1/2 bowl design, 20-1/2" in length and 15" in front-to-back depth. Sink to be made from Silgranit® hard composite material. Sink to feature straight bowl sides with 5/8" cutout corner radius. Sink to be Blanco (Check one)

□ Model 511 -660 □ Model 511 -661 □ Model 511 -662 □ Model 511 -663 □ Model 511-664

with left bowl depth of 8" and right bowl depth of 6". Additional knockout hole location:________________.

JDB INFDRMATION

Job Name:

Contact: Date Specified:

Specifier:

Contractor:

__________

______

KNDCKOUT HDLE LOCATIONS

Pre-drllled for single-hole faucet.

» o

BLANCO AMERICA

800.451.5782

www.blancoamerica.com
