BLANCO

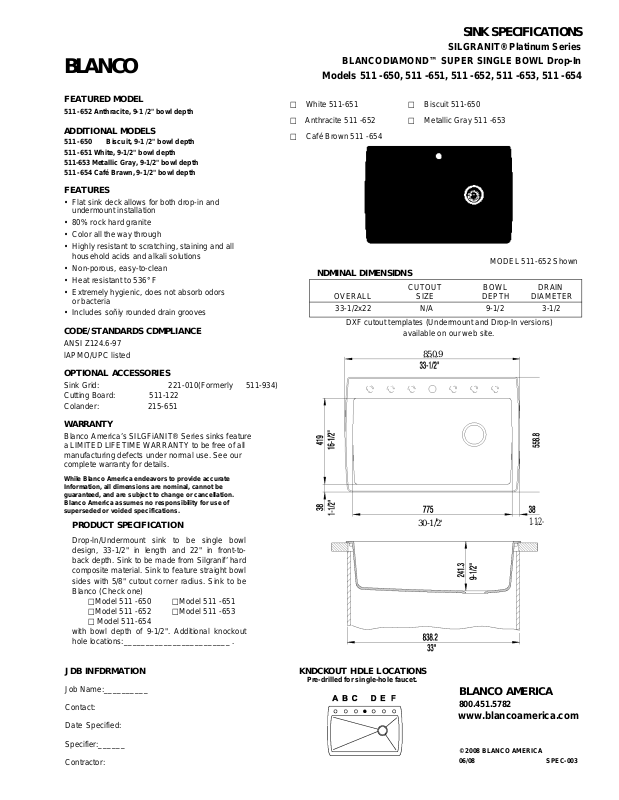

SINK SPECIFICATIONS

SILGRANIT® Platinum Series

BLANCODIAMOND™ SUPER SINGLE BOWL Drop-In

Models 511 -650, 511 -651, 511 -652, 511 -653, 511 -654

FEATURED MODEL

511 -652 Anthracite, 9-1 /2" bowl depth

ADDITIONAL MODELS

511 -650 Biscuit, 9-1 /2" bowl depth 511 -651 White, 9-1/2" bowl depth 511-653 Metallic Gray, 9-1/2" bowl depth 511 -654 Café Brawn, 9-1/2" bowl depth

FEATURES

• Flat sink deck allows for both drop-in and undermount installation

• 80% rock hard granite

• Color all the way through

• Highly resistant to scratching, staining and all household acids and alkali solutions

• Non-porous, easy-to-clean

• Heat resistant to 536° F

• Extremely hygienic, does not absorb odors or bacteria

• Includes soñiy rounded drain grooves

CODE/STANDARDS CDMPLIANCE

ANSI Z124.6-97 lAPMO/UPC listed

OPTIONAL ACCESSORIES

Sink Grid: 221-010 (Formerly 511-934) Cutting Board: 511-122 Colander: 215-651

□ White 511-651 □ Anthracite 511 -652 □ Café Brown 511 -654

NDMINAL DIMENSIDNS

OVERALL SIZE DEPTH DIAMETER

33-1/2x22 N/A 9-1/2 3-1/2

DXF cutout templates (Undermount and Drop-In versions)

□ Biscuit 511-650 □ Metallic Gray 511 -653

MODEL 511-652 Shown

CUTOUT BOWL DRAIN

available on our web site.

850.9

WARRANTY

Blanco America’s SILGFiANIT® Series sinks feature a LIMITED LIFETIME WARRANTY to be free of all manufacturing defects under normal use. See our complete warranty for details.

While Blanco America endeavors to provide accurate Information, all dimensions are nominal, cannot be guaranteed, and are subject to change or cancellation. Blanco America assumes no responsibility for use of superseded or voided specifications.

PRODUCT SPECIFICATION

Drop-ln/Undermount sink to be single bowl design, 33-1/2" in length and 22" in front-toback depth. Sink to be made from Silgranif’ hard composite material. Sink to feature straight bowl sides with 5/8" cutout corner radius. Sink to be Blanco (Check one)

□ Model 511 -650 □ Model 511 -651 □ Model 511 -652 □ Model 511 -653

□ Model 511-654 with bowl depth of 9-1/2". Additional knockout hole locations:

________________________

JDB INFDRMATION

Job Name: Contact: Date Specified:

__________

30-1/2'

KNDCKOUT HDLE LOCATIONS

Pre-drilled for single-hole faucet.

1-1/2

BLANCO AMERICA

800.451.5782

www.blancoamerica.com

Specifier: Contractor:

______
