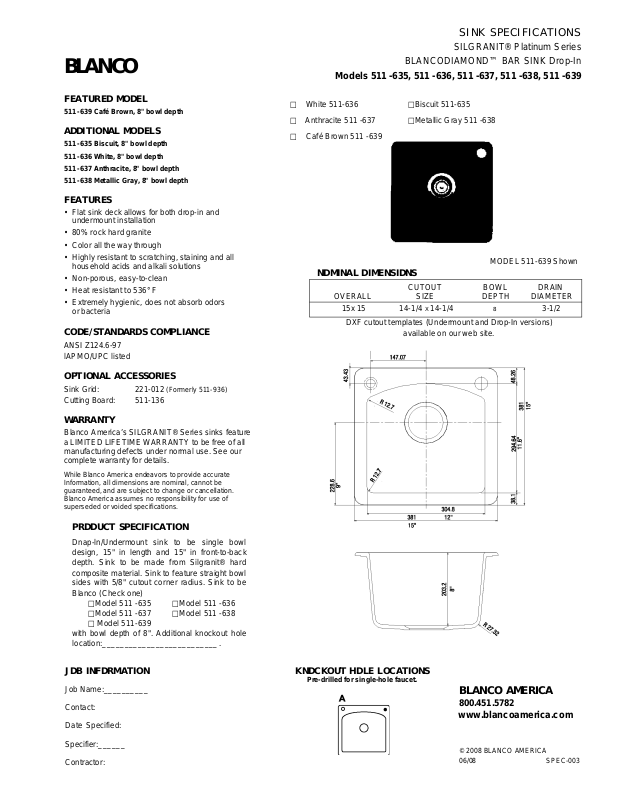

Blanco 511-638 User Manual

BLANCO

SINK SPECIFICATIONS

SILGRANIT® Platinum Series

BLANCODIAMOND™ BAR SINK Drop-In

Models 511 -635, 511 -636, 511 -637, 511 -638, 511 -639

FEATURED MODEL

511 -639 Café Brown, 8" bowl depth

ADDITIONAL MODELS

511 -635 Biscuit, 8" bowl depth
511 -636 White, 8" bowl depth
511 -637 Anthracite, 8" bowl depth
511 -638 Metallic Gray, 8" bowl depth

FEATURES

• Flat sink deck allows for both drop-in and
undermount installation

• 80% rock hard granite

• Color all the way through

• Highly resistant to scratching, staining and all
household acids and alkali solutions

• Non-porous, easy-to-clean

• Heat resistant to 536° F

• Extremely hygienic, does not absorb odors
or bacteria

CODE/STANDARDS COMPLIANCE

ANSI Z124.6-97
lAPMO/UPC listed

OPTIONAL ACCESSORIES

Sink Grid: 221-012 (Formerly 511-936)
Cutting Board: 511-136

□ White 511-636 □ Biscuit 511-635
□ Anthracite 511 -637 □ Metallic Gray 511 -638
□ Café Brown 511 -639

MODEL 511-639 Shown

NDMINAL DIMENSIDNS

CUTOUT BOWL DRAIN

OVERALL SIZE DEPTH DIAMETER

15x 15 14-1/4 X 14-1/4 8 3-1/2

DXF cutout templates (Undermount and Drop-In versions)

available on our web site.

WARRANTY

Blanco America’s SILGRANIT® Series sinks feature
a LIMITED LIFETIME WARRANTY to be free of all
manufacturing defects under normal use. See our
complete warranty for details.

While Blanco America endeavors to provide accurate
Information, all dimensions are nominal, cannot be
guaranteed, and are subject to change or cancellation.
Blanco America assumes no responsibility for use of
superseded or voided specifications.

PRDDUCT SPECIFICATION

Dnap-ln/Undermount sink to be single bowl
design, 15" in length and 15" in front-to-back
depth. Sink to be made from Silgranit® hard
composite material. Sink to feature straight bowl
sides with 5/8" cutout corner radius. Sink to be
Blanco (Check one)

□ Model 511 -635 □ Model 511 -636
□ Model 511 -637 □ Model 511 -638

□ Model 511-639
with bowl depth of 8". Additional knockout hole
location:__________________________.

JDB INFDRMATION

Job Name:
Contact:
Date Specified:

__________

KNDCKOUT HDLE LOCATIONS

Pre-drilled for single-hole faucet.

BLANCO AMERICA

800.451.5782

www.blancoamerica.com

Specifier:
Contractor:

______

© 2008 BLANCO AMERICA
06/08 SPEC-003
