BLANCO

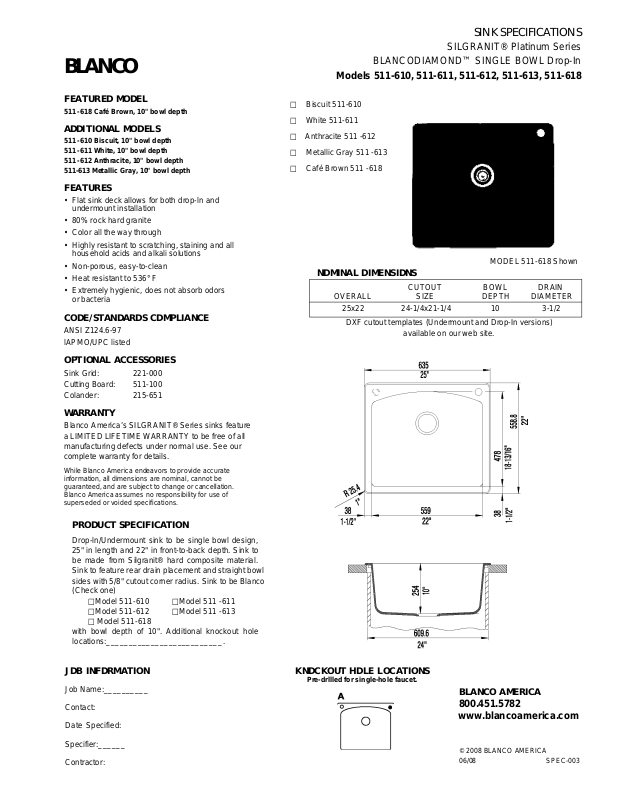

SINK SPECIFICATIONS

SILGRANIT® Platinum Series

BLANCODIAMOND™ SINGLE BOWL Drop-In

Models 511-610, 511-611, 511-612, 511-613, 511-618

FEATURED MODEL

511 -618 Café Brown, 10" bowl depth

ADDITIONAL MODELS

511 -610 Biscuit, 10" bowl depth
511 -611 White, 10" bowl depth
511 -612 Anthracite, 10" bowl depth
511-613 Metallic Gray, 10" bowl depth

FEATURES

• Flat sink deck allows for both drop-ln and
undermount installation

• 80% rock hard granite

• Color all the way through

• Highly resistant to scratching, staining and all
household acids and alkali solutions

• Non-porous, easy-to-clean

• Heat resistant to 536° F

• Extremely hygienic, does not absorb odors
or bacteria

CODE/STANDARDS CDMPLIANCE

ANSI Z124.6-97
lAPMO/UPC listed

OPTIONAL ACCESSORIES

Sink Grid: 221-000
Cutting Board: 511-100
Colander: 215-651

□ Biscuit 511-610
□ White 511-611
□ Anthracite 511 -612
□ Metallic Gray 511 -613
□ Café Brown 511 -618

MODEL 511-618 Shown

NDMINAL DIMENSIDNS

CUTOUT BOWL DRAIN

OVERALL SIZE DEPTH DIAMETER

25x22 24-1/4x21-1/4 10 3-1/2

DXF cutout templates (Undermount and Drop-In versions)

available on our web site.

WARRANTY

Blanco America’s SILGRANIT® Series sinks feature
a LIMITED LIFETIME WARRANTY to be free of all
manufacturing defects under normal use. See our
complete warranty for details.

While Blanco America endeavors to provide accurate
information, all dimensions are nominal, cannot be
guaranteed, and are subject to change or cancellation.
Blanco America assumes no responsibility for use of
superseded or voided specifications.

PRODUCT SPECIFICATION

Drop-ln/Undermount sink to be single bowl design,
25" in length and 22" in front-to-back depth. Sink to
be made from Silgranit® hard composite material.
Sink to feature rear drain placement and straight bowl
sides with 5/8" cutout corner radius. Sink to be Blanco
(Check one)

□ Model 511-610 □ Model 511 -611
□ Model 511-612 □ Model 511 -613

□ Model 511-618
with bowl depth of 10". Additional knockout hole
locations:__________________________.

JDB INFDRMATION

Job Name:
Contact:
Date Specified:

__________

KNDCKOUT HDLE LOCATIONS

Pre-drllled for single-hole faucet.

BLANCO AMERICA

800.451.5782
www.blancoamerica.com

Specifier:
Contractor:

______

© 2008 BLANCO AMERICA
06/08 SPEC-003
