Blanco 511-610 User Manual

BLANCO

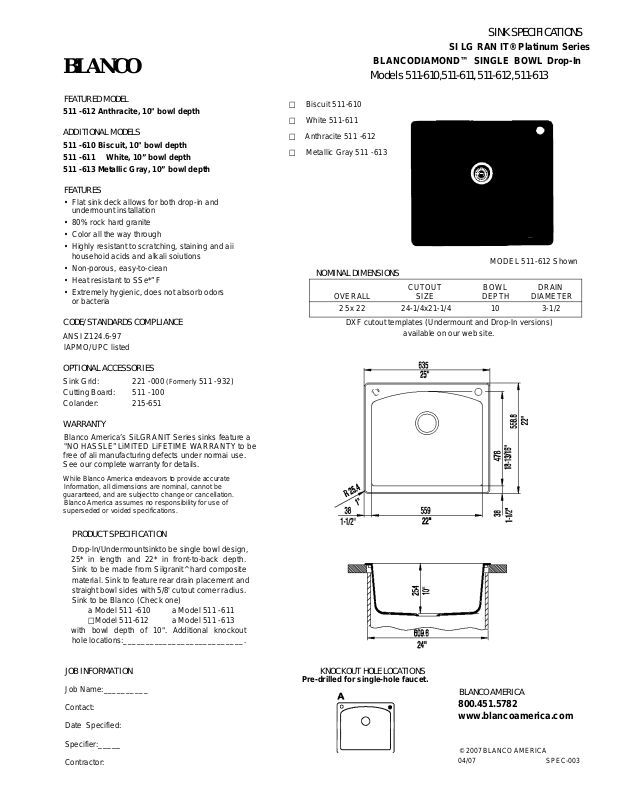

SINK SPECIFICATIONS

SI LG RAN IT® Platinum Series

BLANCODIAMOND™ SINGLE BOWL Drop-In

Models 511-610,511-611, 511-612, 511-613

FEATURED MODEL

511 -612 Anthracite, 10" bowl depth

ADDITIONAL MODELS

511 -610 Biscuit, 10" bowl depth
511 -611 White, 10” bowl depth
511 -613 Metallic Gray, 10” bowl depth

FEATURES

• Flat sink deck allows for both drop-in and
undermount installation

• 80% rock hard granite

• Color all the way through

• Highly resistant to scratching, staining and aii
househoid acids and alkali soiutions

• Non-porous, easy-to-ciean

• Heat resistant to SSe*” F

• Extremely hygienic, does not absorb odors
or bacteria

CODE/STANDARDS COMPLIANCE

ANSI Z124.6-97

lAPMO/UPC listed

OPTIONAL ACCESSORIES

Sink Grid: 221 -000 (Formerly 511 -932)
Cutting Board: 511 -100
Colander: 215-651

□ Biscuit 511-610
□ White 511-611
□ Anthracite 511 -612
□ Metallic Gray 511 -613

MODEL 511-612 Shown

NOMINAL DIMENSIONS

CUTOUT BOWL DRAIN

OVERALL SIZE DEPTH DIAMETER

25x22 24-1/4x21-1/4 10 3-1/2

DXF cutout templates (Undermount and Drop-In versions)

available on our web site.

WARRANTY

Blanco America’s SiLGRANIT Series sinks feature a

"NO HASSLE” LiMITED LiFETIME WARRANTY to be
free of ali manufacturing defects under normai use.
See our complete warranty for details.

While Blanco America endeavors to provide accurate

Information, all dimensions are nominal, cannot be
guaranteed, and are subject to change or cancellation.

Blanco America assumes no responsibility for use of
superseded or voided specifications.

PRODUCT SPECIFICATION

Drop-ln/Undermountsinkto be single bowl design,
25* in length and 22* in front-to-back depth.
Sink to be made from Silgranit^ hard composite
material. Sink to feature rear drain placement and
straight bowl sides with 5/8' cutout comer radius.
Sink to be Blanco (Check one)

a Model 511 -610 a Model 511 -611

□ Model 511-612 a Model 511 -613
with bowl depth of 10". Additional knockout
hole locations:___________________________.

JOB INFORMATION

Job Name:__________
Contact:
Date Specified:

KNOCKOUT HOLE LOCATIONS

Pre-drilled for single-hole faucet.

BLANCO AMERICA

800.451.5782
www.blancoamerica.com

Specifier:
Contractor:

_____

© 2007 BLANCO AMERICA
04/07 SPEC-003
