BLANCO
FEATURED MODEL
511 -607 Anthracite, 9-1 /2" & 8" bowl depths
ADDITIONAL MODELS
511 -605 Biscuit, 9-1 /2" & 8" bowl depths
511 -606 White, 9-1/2" & 8" bowl depths
511-608 Metallic Gray, 9-1/2" & 8" bowl depths
511 -609 Café Brown, 9-1/2" & 8" bowl depths
FEATURES
• Flat sink deck allows for both drop-in or
undermount installation
• 80% rock hard granite
• Color all the way through
• Highly resistant to scratching, staining and all
household acids and alkali solutions
• Non-porous, easy-to-clean
• Heat resistant to 536° F
• Extremely hygienic, does not absorb odors or bacteria
CODE/STANDARDS COMPLIANCE
ANSI Z124.6-97
lAPMO/UPC listed

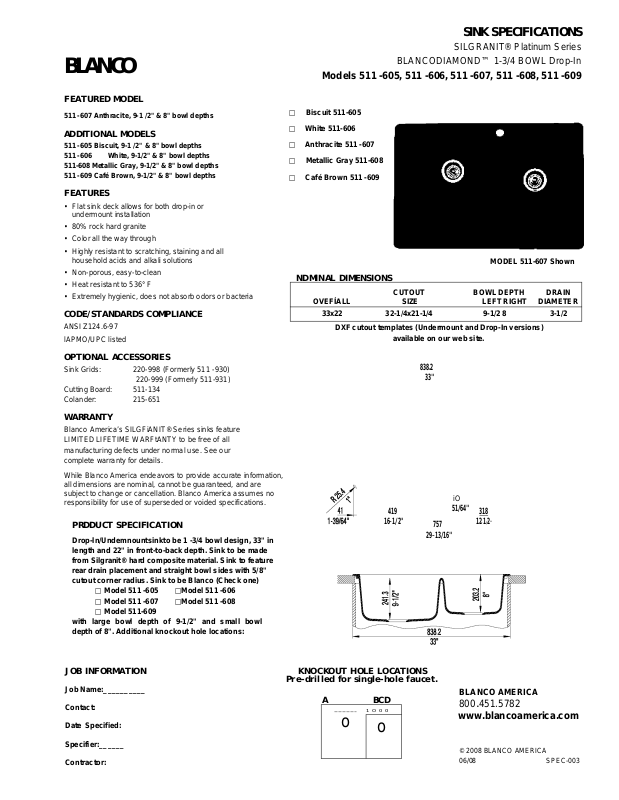

SINK SPECIFICATIONS
SILGRANIT® Platinum Series
BLANCODIAMOND™ 1-3/4 BOWL Drop-In
Models 511 -605, 511 -606, 511 -607, 511 -608, 511 -609
□ Biscuit 511-605
□ White 511-606
□ Anthracite 511 -607
□ Metallic Gray 511-608
□ Café Brown 511 -609
MODEL 511-607 Shown
NDMINAL DIMENSIONS
CUTOUT BOWL DEPTH DRAIN
OVEFÍALL SIZE LEFT RIGHT DIAMETER
33x22 32-1/4x21-1/4 9-1/2 8 3-1/2
DXF cutout templates (Undermount and Drop-In versions)
available on our web site.
OPTIONAL ACCESSORIES
Sink Grids: 220-998 (Formerly 511 -930)
220-999 (Formerly 511-931)
Cutting Board: 511-134
Colander: 215-651
WARRANTY
Blanco America’s SILGFiANIT® Series sinks feature
LIMITED LIFETIME WARFtANTY to be free of all
manufacturing defects under normal use. See our
complete warranty for details.
While Blanco America endeavors to provide accurate information,
all dimensions are nominal, cannot be guaranteed, and are
subject to change or cancellation. Blanco America assumes no
responsibility for use of superseded or voided specifications.
PRDDUCT SPECIFICATION
Drop-ln/Undemnountsinkto be 1 -3/4 bowl design, 33" in
length and 22" in front-to-back depth. Sink to be made
from Silgranit® hard composite material. Sink to feature
rear drain placement and straight bowl sides with 5/8"
cutout corner radius. Sink to be Blanco (Check one)
□ Model 511 -605 □ Model 511 -606
□ Model 511 -607 □ Model 511 -608
□ Model 511-609
with large bowl depth of 9-1/2" and small bowl
depth of 8". Additional knockout hole locations:
419
16-1/2
838.2
33
"
iO
51/64
"
318
12-1/2
"
757
29-13/16
"
"
JOB INFORMATION
Job Name:
Contact:
Date Specified:
Specifier:
Contractor:
__________
______
KNOCKOUT HOLE LOCATIONS
Pre-drilled for single-hole faucet.
A BCD
o
1 O 0 0
o
-----------------
BLANCO AMERICA
800.451.5782
www.blancoamerica.com
© 2008 BLANCO AMERICA
06/08 SPEC-003
